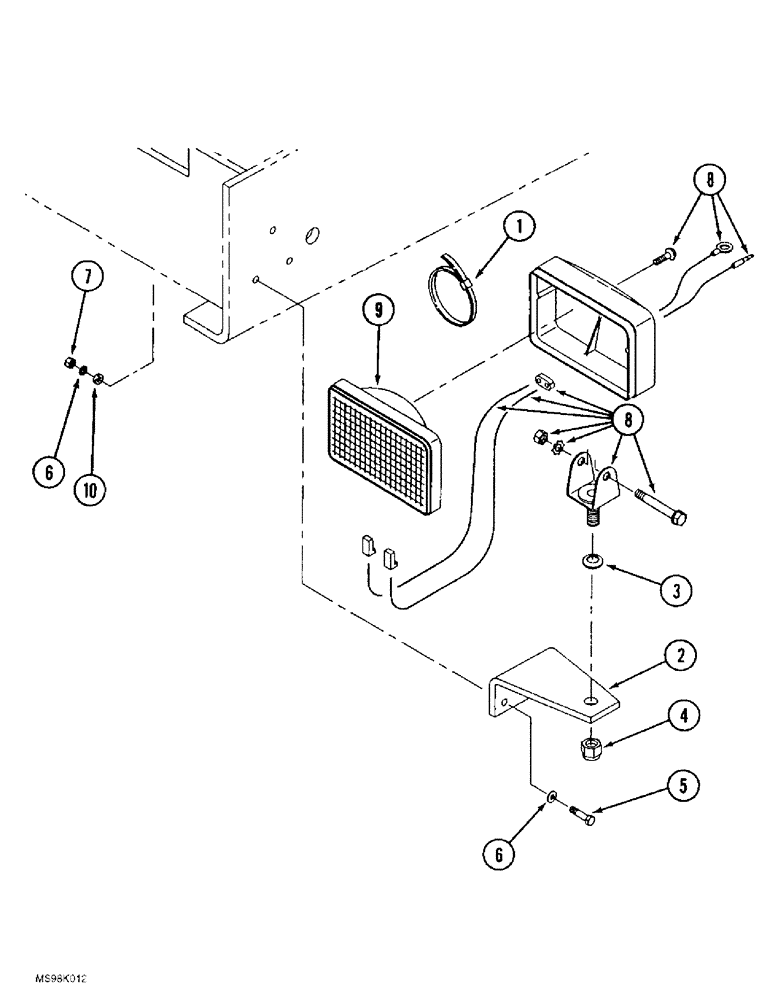

Запчасти Case IH 9380 QUADTRAC (4-044) - FRONT FRAME WORK LAMPS (04) - ELECTRICAL SYSTEMS

1

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch

2шт.

Part of front frame work lamps kit P/N 35-1961T91

1шт.

2

60-4336T1

SUPPORT

BRACKET - mounting, cab to flood lamp

2шт.

Part of front frame work lamps kit P/N 35-1961T91

1шт.

3

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

2шт.

Part of front frame work lamps kit P/N 35-1961T91

1шт.

4

231-1448

NUT,1/2"-13, GB

- hex, self-locking, 1/2 inch NC

2шт.

Part of front frame work lamps kit P/N 35-1961T91

1шт.

5

426-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 8

- hex, 1/4 NC x 1-1/2 inch, grade 8

4шт.

Part of front frame work lamps kit P/N 35-1961T91

1шт.

6

495-21031

WASHER,1/4"

- flat, 5/16 x 3/4 x 1/16 inch

8шт.

Part of front frame work lamps kit P/N 35-1961T91

1шт.

7

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

4шт.

Part of front frame work lamps kit P/N 35-1961T91

1шт.

ZAA7189850

HEADLIGHT

LAMP ASSEMBLY - work, Includes: Ref. 8 & 9

2шт.

Part of front frame work lamps kit P/N 35-1961T91

1шт.

8

NSS

NOT SOLD SEPARAT

HOUSING - lamp

1шт.

9

20-1822T1

LAMP BASE

LENS - sealed beam

1шт.

10

493-11026

LOCK WASHER,Ext-Int Tooth, 1/4"

2шт.

35-1961T91

LIGHT ASSY.

KIT - front frame work lamps, Includes: Ref. 1 - 7, P/N ZAA7189850 and (2) 70-6773T1 bracket, not shown

1шт.
