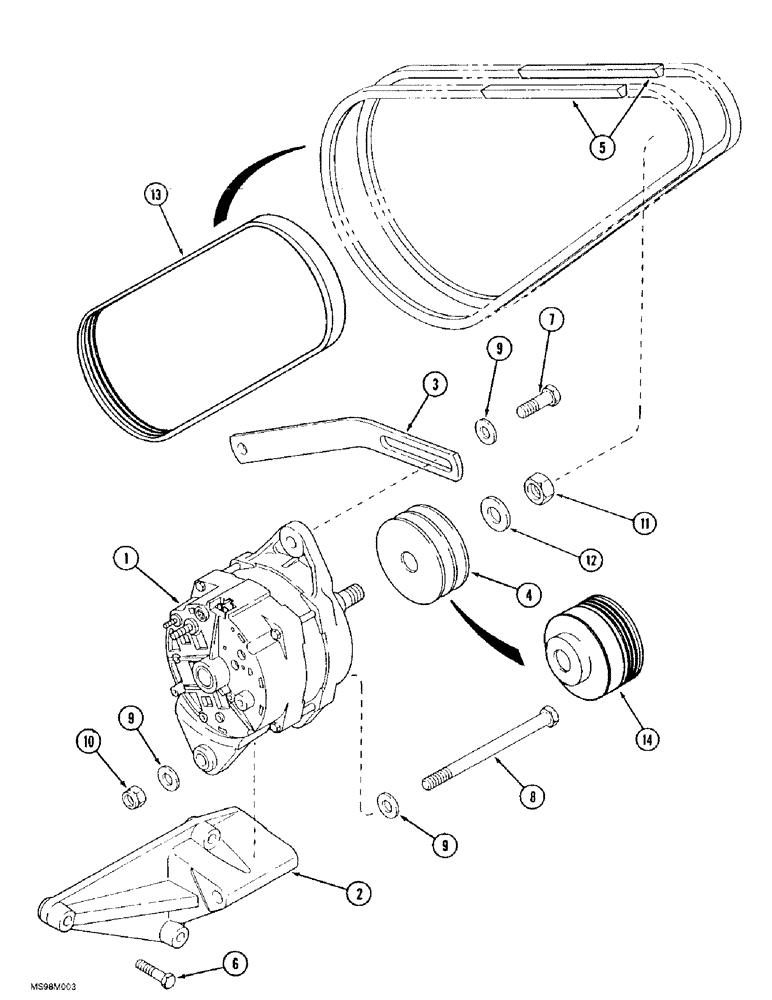

Запчасти Case IH 9380 QUADTRAC (4-032) - ALTERNATOR MOUNTING, PRIOR TO P.I.N. JEE0074062 (04) - ELECTRICAL SYSTEMS

1

1987560C1

ALTERNATOR

ALTERNATOR ASSEMBLY - engine, 125 amp, parts list Figure 4-036

1шт.

1

1987560C1GV

ALTERNATOR

Value

1шт.

1

1987560C1R

REMAN-ALTERNATOR

Remanfactured Alternator, 12 volt 125 ampere,

1шт.

1

1987560C1C

CORE-ALTERNATOR

Return Part Number

1шт.

2

90-7610T1

SUPPORT

MOUNT - alternator

1шт.

3

90-7612T2

SUPPORT

BRACKET - alternator mount

1шт.

4

90-7613T1

PULLEY

PULLEY - alternator

1шт.

5

90-1375T1

SET OF BELTS,0.53" W x 45.92" L

V-Belt, Alternator, Set of 2

1шт.

6

426-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8

BOLT - hex, 3/8 NC x 1-1/2 inch, grade 8

3шт.

7

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

BOLT - hex, 1/2 NC x 1-1/2 inch, grade 8

1шт.

Ref: 7 Per ECN f990689 Bolt changed to longer bolt p/n 426-816 on large frames. NAPO TECH NOTE

1шт.

8

426-8104

BOLT,Hex, 1/2" - 13 x 6-1/2", Gr 8

BOLT - hex, 1/2 NC x 6-1/2", grade 8

1шт.

9

496-11053

WASHER,17/32" x 1 1/16" x .095", HDN

WASHER, 17/32" x 1 1/16" x .095", HDN

3шт.

10

231-1448

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC

1шт.

11

A49635

NUT

NUT - shaft

1шт.

12

A40792

WASHER

WASHER - flat, 5/8 x 1-1/4 x 3/32 inch

1шт.
