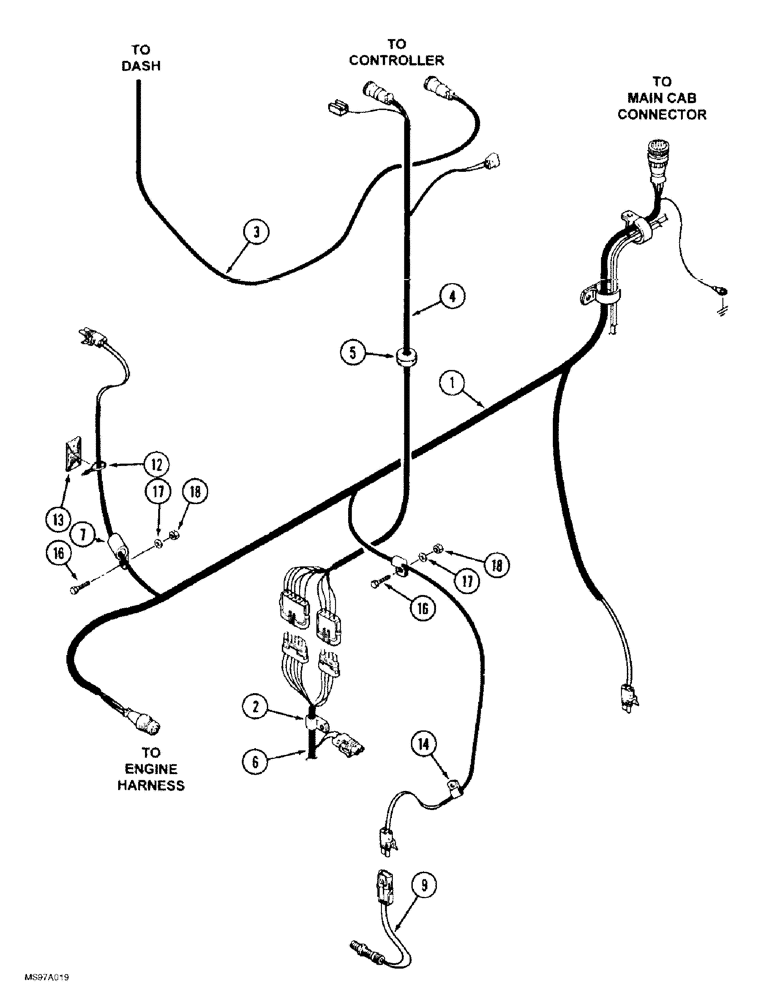

Запчасти Case IH 9380 QUADTRAC (4-012) - TRANSMISSION HARNESS, POWER SHIFT TRANSMISSION (04) - ELECTRICAL SYSTEMS

1

60-7193T3

HARNESS

- transmission

1шт.

2

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

P-type 1/2", Insul, 3/8" Bolt

1шт.

3

60-6089T1

HARNESS

- dash display

1шт.

4

60-7197T1

HARNESS

- transmission solenoid

1шт.

5

1-1051

GROMMET

- protective

1шт.

6

60-6800T1

HARNESS

- transmission solenoid

1шт.

7

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

2шт.

9

60-7204T1

SENSOR

- magnetic, RPM

1шт.

12

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch

1шт.

13

22-823

MOUNT

MOUNT - adhesive back, strap

1шт.

14

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- P-type, 1/4 inch ID

1шт.

16

426-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

- hex, 5/16 NC x 3/4 inch, grade 8

3шт.

17

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

18

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

3шт.
