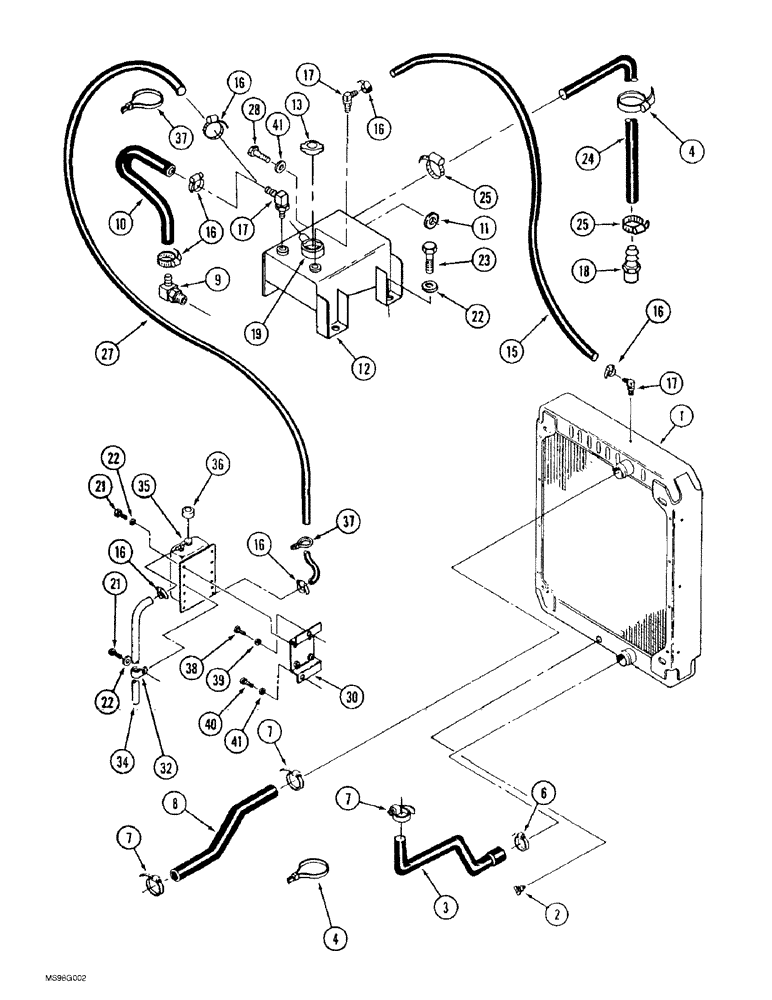

Запчасти Case IH 9380 QUADTRAC (2-008) - RADIATOR AND ATTACHING PARTS, P.I.N. JEE0074062 AND AFTER (02) - ENGINE

1

90-8369T1

RADIATOR

- engine cooling

1шт.

2

217-92

COCK

VALVE - drain, 1/4 inch PT, replaces H434809 valve

1шт.

3

90-7693T2

RADIATOR HOSE,2.50" ID, 3.00" ID x 26.67", SAE 20R4

Lower 2.50" ID, 3.00" ID x 26.67", SAE 20R4

1шт.

4

19-135

CABLE TIE

STRAP - tie, nylon

2шт.

6

70-5522T1

COLLAR CLAMP

CLAMP - adj, 2-13/16 - 3-3/4 inch dia

1шт.

7

70-5521T1

COLLAR CLAMP

CLAMP - adj, 2 - 3 inch dia

3шт.

8

90-8051T1

RADIATOR HOSE,2.50" ID x 18.00", SAE 20R4

Upper 2.50" ID x 18.00", SAE 20R4

1шт.

9

217-292

FITTING,90 Degree Elbow, 1/4" Hose Barb x 1/8" Male NPTF

ELBOW - 90 degree, 1/4 barb end x 1/8 inch PT

1шт.

10

31-3063

HOSE,6.4 mm ID x 406.40 mm

6.4 mm ID x 406.4 mm; Order 31-1182, and Cut to Required Length

1шт.

11

496-41041

WASHER,13/32" x 1 1/8" x .134"

- flat, 13/32 x 1-1/8 x 9/64 inch, hardened

1шт.

12

239141A3

TANK

- fill, radiator

1шт.

When substituting 239141A3 tank for 239141A2 tank, include (2) 426-672 bolts and (2) 495-11041 washers. The mounting studs and washers previously used on 239141A2 tank need to be removed and replaced with the (2) 426-672 bolts and the (2) 495-11041 washers.

1шт.

13

90-7731T1

CAP

- radiator

1шт.

15

31-1190

HOSE,6.4mm ID x 965mm L, SAE 30R2

1шт.

16

214-1404

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

CLAMP - adj, 1/4 - 5/8 inch dia

6шт.

17

217-292

FITTING,90 Degree Elbow, 1/4" Hose Barb x 1/8" Male NPTF

ELBOW - 90 degree, 1/4 barb end x 1/8 inch PT

4шт.

18

217-156

FITTING,1" Hose Barb x 1" Male NPTF

ADAPTER - straight, 1 inch stem end x PT

1шт.

21

426-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

- hex, 5/16 NC x 3/4 inch, grade 8

4шт.

22

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

4шт.

23

426-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 8

- hex, 3/8 NC x 4-1/2 inch, grade 8

2шт.

When substituting 239141A3 tank for 239141A2 tank, include (2) 426-672 bolts and (2) 495-11041 washers. The mounting studs and washers previously used on 239141A2 tank need to be removed and replaced with the (2) 426-672 bolts and the (2) 495-11041 washers.

1шт.

24

31-1503

HOSE,1.00" ID x 28.00"

cut from 31-1502 bulk hose, see below 1.00" ID x 28.00"

1шт.

25

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP, HOSE, , Adj. #20, 0.81/1.75 Type F Worm

2шт.

27

A172261

HOSE,7.92mm ID x 1820mm L, SAE 30R6

- Cut from L126767 bulk hose, See below, Replaces 31-2835 hose 7.50 mm ID, 8.30 mm ID x 1820.00 mm, SAE 30R6 per J30

1шт.

28

426-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

- hex, 3/8 NC x 3/4 inch, grade 8

1шт.

30

90-8351T1

SUPPORT

BRACKET - mounting

1шт.

32

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

P-type, Hose, Overflow 1/2", Insul, 3/8" Bolt

1шт.

34

31-3065

HOSE,0.28" ID x 16.00"

; Order 87769CX, and Cut to Required Length; See Below 0.28" ID x 16.00"

1шт.

35

90-7717T1

RESERVOIR

BOTTLE - coolant recovery

1шт.

36

1547924C1

CAP

- recovery bottle

1шт.

37

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch

2шт.

38

414-916

BOLT,Hex, 9/16" - 18 x 1", Gr 5

- hex, 9/16 NF x 1 inch

1шт.

39

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 7/64 inch

1шт.

40

414-68

BOLT,Hex, 3/8" - 24 x 1/2", Gr 5

- hex, 3/8 NF x 1/2 inch

1шт.

41

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

14шт.

When substituting 239141A3 tank for 239141A2 tank, include (2) 426-672 bolts and (2) 495-11041 washers. The mounting studs and washers previously used on 239141A2 tank need to be removed and replaced with the (2) 426-672 bolts and the (2) 495-11041 washers.

1шт.

31-1502

HOSE,1.00", Bulk, SAE 20R3 CLASS D2

1.00", Bulk, SAE 20R3, CLASS D2

1шт.

A21561X

HOSE,6.35mm ID x 7620mm L

- bulk, 6 (1/4) x 13 (1/2) x 7620 mm (300 inch) long

1шт.

L126767

HOSE,7.9mm ID x 2336mm L, SAE 30R6

1шт.

87769CX

LARGE HOSE

HOSE - rubber, bulk roll, 7 (9/32) ID x 27432 mm (1080 inch) long

1шт.
