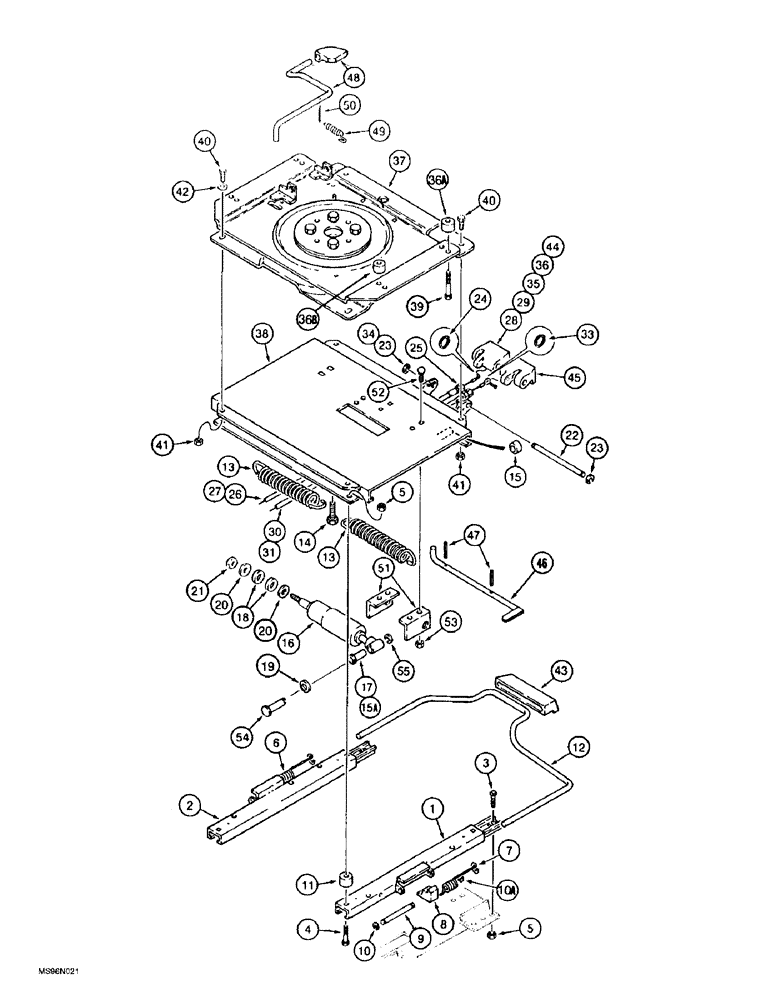

Запчасти Case IH 9380 QUADTRAC (9-058) - DELUXE AIR SUSPENSION SEAT, SWIVEL PLATE AND SLIDES (09) - CHASSIS/ATTACHMENTS

144845A2

SEAT ASSY.

SEAT ASSEMBLY - deluxe suspension, replaced by 144845A3 seat, parts list Figures 9-056 - 9-066, Includes: Ref. 1 - 57

1шт.

144845A3

SEAT ASSY.

SEAT ASSEMBLY - deluxe suspension, replaces 144845A2 seat, parts list Figures 9-056 - 9-066, Includes: Ref. 1 - 57

1шт.

132875A1

SLIDE

KIT - seat slide, Includes: Ref. 1 - 10A

1шт.

1

NSS

NOT SOLD SEPARAT

SLIDE - locking, right-hand

1шт.

2

NSS

NOT SOLD SEPARAT

SLIDE - locking, left-hand

1шт.

3

117-109

SQUARE BOLT,5/18" - 16 x 3/4", Gr 5

4шт.

4

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch

4шт.

5

230-4215

NUT,5/16"-18, GA

NUT - hex, self-locking, 5/16 inch NC

8шт.

6

135513A1

SPRING

- torsion, left-hand

1шт.

7

135514A1

SPRING

- torsion, right-hand

1шт.

8

NSS

NOT SOLD SEPARAT

BLOCK - spring

2шт.

9

NSS

NOT SOLD SEPARAT

PIN - torsion

2шт.

10

100-3325

SNAP RING,#25, .207" Dia, E-Type

Ring, Retaining, #25, .207" Dia, E-Type

2шт.

Part of retainer kit P/N 175088A1.

1шт.

10a

131-413

PUSH-ON NUT,Rd Flat Push, 1/4" x 17/32"

NUT - push-on type, 1/4 x 17/32 inch

2шт.

Part of retainer kit P/N 175088A1.

1шт.

132861A3

SUPPORT ASSY.

KIT - suspension, additional parts list Figues 9-058 - 9-066, Includes: Ref. 11 - 45

1шт.

11

134144A1

SPACER

- plate

8шт.

12

134146A1

CONTROL LEVER

LEVER - slide control

1шт.

1987290C1

SET OF PARTS

KIT - spring, lateral isolator, Includes: (2) springs and (1) bolt, Ref. 13 & 14

1шт.

13

NSS

NOT SOLD SEPARAT

SPRING - lateral

2шт.

14

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

135512A3

PACKAGE

KIT - roller bearing, isolator, Includes: Ref. 15, 15A, (4) narrow rollers, (2) wide rollers, (1) bushing, (1) spacer and (1) retaining ring

1шт.

15

NSS

NOT SOLD SEPARAT

ROLLER - bearing

4шт.

15a

NSS

NOT SOLD SEPARAT

BUSHING - shock

1шт.

1987219C2

SET OF PARTS

KIT - lateral isolator shock, Includes: Ref. 16 - 21, shock absorber, (1) bearing, (2) bushings, (1) nut, (2) washers, (1) spacer and (1) retaining ring

1шт.

16

NSS

NOT SOLD SEPARAT

ABSORBER - shock

1шт.

17

NSS

NOT SOLD SEPARAT

BUSHING - shock

1шт.

18

NSS

NOT SOLD SEPARAT

BUSHING - rubber

2шт.

19

NSS

NOT SOLD SEPARAT

SPACER - shock

2шт.

20

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16"), 1 required 3/8", SAE

2шт.

21

230-4715

LOCK NUT,5/16"-24, GA

NUT - hex, self-locking, 5/16 inch NF, 1 required

2шт.

132869A1

KIT

KIT - ride firmness control, Includes: Ref. 22 - 29

1шт.

22

NSS

NOT SOLD SEPARAT

PIN - control pivot

1шт.

Part of retainer kit P/N 175088A1.

1шт.

23

100-3331

SNAP RING,#X31, .243" Dia, E-Type

Ring, Retaining, #X31, .243" Dia, E-Type

2шт.

Part of retainer kit P/N 175088A1.

1шт.

24

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

25

NSS

NOT SOLD SEPARAT

NUT - hex, self-locking, 1/4 inch NC

2шт.

26

NSS

NOT SOLD SEPARAT

CABLE - shock adjust

1шт.

27

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

3шт.

28

NSS

NOT SOLD SEPARAT

SPRING - compression

1шт.

29

NSS

NOT SOLD SEPARAT

BEARING - ball

1шт.

132870A1

SET OF PARTS

KIT - isolator lock cable, Includes: Ref. 30 - 36B

1шт.

30

NSS

NOT SOLD SEPARAT

CABLE - isolator lock

1шт.

31

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

3шт.

32

NSS

NOT SOLD SEPARAT

RIVET - retainer, not shown

1шт.

33

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

Part of retainer kit P/N 175088A1.

1шт.

34

NSS

NOT SOLD SEPARAT

RING - retaining

2шт.

Part of retainer kit P/N 175088A1.

1шт.

35

NSS

NOT SOLD SEPARAT

RING - compression

1шт.

Part of retainer kit P/N 175088A1.

1шт.

36

NSS

NOT SOLD SEPARAT

BEARING - ball

1шт.

Part of retainer kit P/N 175088A1.

1шт.

36a

187006A1

CUP

SPACER - cupped, 5/8 inch

2шт.

36b

700711545

CUP WASHER

SPACER - cupped, 3/8 inch

2шт.

37

134148A1

SEAT SUPPORT

PLATE - swivel

1шт.

38

132878A3

ISOLATOR

PLATE - lateral isolator, Includes: Ref. 13 - 21 and Ref. 50 - 55

1шт.

39

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

4шт.

40

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

- hex, 5/16 NC x 5/8 inch

4шт.

41

231-4115

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

4шт.

42

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

134143A1

SET OF PARTS

KIT - control knob, Includes: Ref. 43 - 45

1шт.

43

NSS

NOT SOLD SEPARAT

KNOB - fore/aft slide

1шт.

44

NSS

NOT SOLD SEPARAT

KNOB - fore/aft isolator

1шт.

45

NSS

NOT SOLD SEPARAT

KNOB - damping adjustment

1шт.

278434A1

SET OF PARTS

ROD - isolator, Includes: Ref. 46 - 51

1шт.

46

NSS

NOT SOLD SEPARAT

ROD - isolator, Includes: knob

1шт.

47

38-31012

PIN,3.96mm OD x 19.05mm L, Coiled

2шт.

48

NSS

NOT SOLD SEPARAT

GROMET - bracket

2шт.

49

NSS

NOT SOLD SEPARAT

BRACKET - angle

2шт.

50

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

4шт.

51

231-4115

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

4шт.

53

135511A1

ROD, ADJUSTMENT

ROD - swivel

1шт.

54

A47375

SPRING

- detent

1шт.

55

NSS

NOT SOLD SEPARAT

PIN - cotter

1шт.

56

1344025C1

PIVOT PIN

PIN - clevis

1шт.

57

100-3350

SNAP RING,#50, .392" Dia, E-Type

Ring, Retaining, #50, .392" Dia, E-Type

1шт.

175088A1

PACKAGE

KIT - retainer, contains: Ref. 10, 10A, 22, 23 and 33 - 36

1шт.
