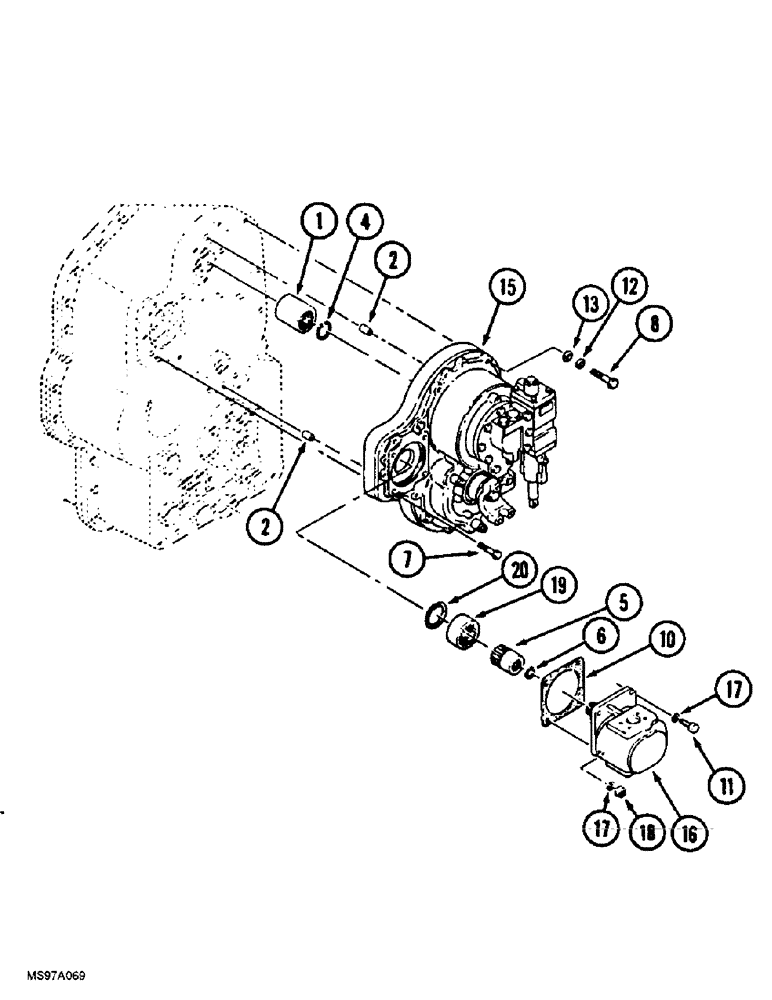

Запчасти Case IH 9380 QUADTRAC (6-050) - PTO CLUTCH MOUNTING (06) - POWER TRAIN

90-7513T91

KIT

MOUNTING KIT - clutch, PTO, Includes: Ref. 1 - 13

1шт.

1

90-7517T1

SLEEVE

- drive coupling

1шт.

2

33-1467T1

DOWEL

PIN - dowel

2шт.

4

SM922247

RING, SNAP

RING - snap

1шт.

5

33-1528T1

COUPLING

ADAPTER - pump drive, used only when equipped with PTO, See Figure 6-004, Ref. 27 for adapter used on models without PTO

1шт.

6

33-1446T1

RING, SNAP

RING - snap

1шт.

7

SM8124280

BOLT

BOLT - hex, 12 - 1.25 x 95 mm

4шт.

8

SM8124290

BOLT

BOLT - hex, 12 - 1.25 x 90 mm

8шт.

8

SM8124295

BOLT

BOLT - hex, 12 - 1.25 x 95 mm

2шт.

8

SM8124285

BOLT

BOLT - hex, 12 - 1.25 x 85 mm

1шт.

10

50-1388T2

GASKET

- pump

1шт.

11

SM8124460

BOLT

BOLT - hex, 8 - 1.50 x 60 mm

2шт.

12

SM8915342

LOCK WASHER

WASHER - lock, 12 mm

3шт.

13

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

- flat, 13.5 x 24 x 2.5 mm

3шт.

15

90-7045T93

REAR PTO ASSY

CLUTCH ASSEMBLY - PTO, parts list Figures 6-052 - 6-058

1шт.

16

33-1524T91

PUMP, HYDRAULIC

PUMP ASSEMBLY - transmission lubrication, parts list Figure 6-028

1шт.

33-1524T91R

REMAN-HYD PUMP

QUADTRAC® (1/97-12/99)

1шт.

33-1524T91C

CORE-HYDRAULIC PUMP

RETURN NUMBER

1шт.

17

892-11014

LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk

WASHER - lock, 14 mm

4шт.

18

SM8911244

NUT

- hex, 14 mm - 1.5

2шт.

19

33-1452T1

COUPLING

- pump

1шт.

20

33-1445T1

RING, SNAP

RING - snap

1шт.
