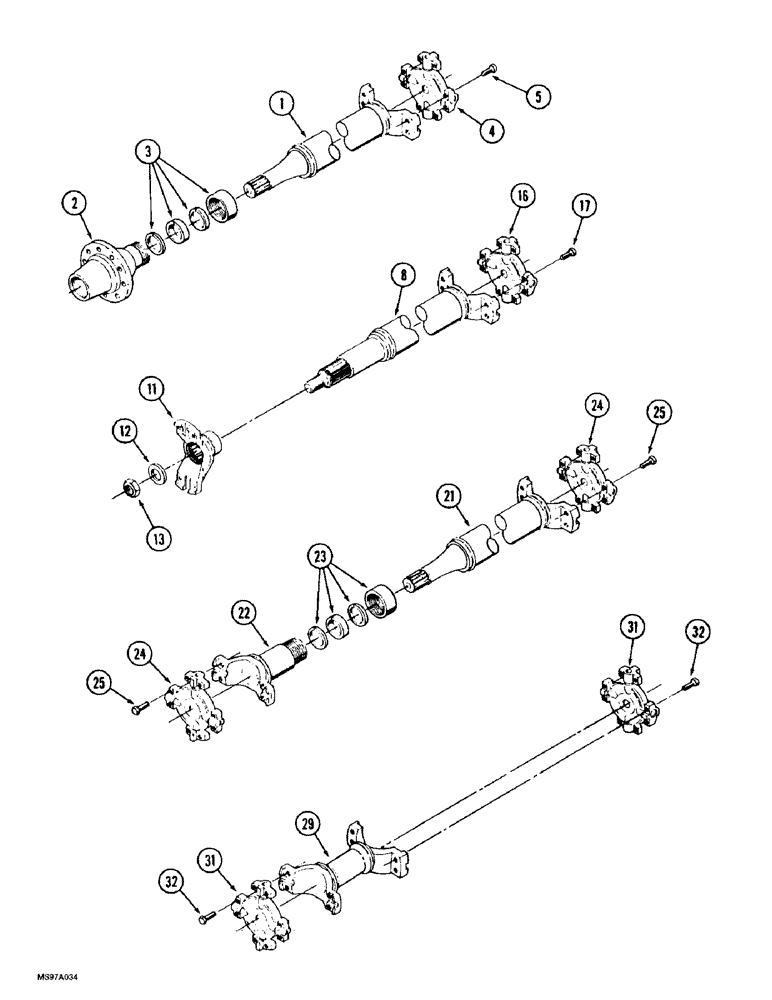

Запчасти Case IH 9380 QUADTRAC (6-046) - DRIVE SHAFT ASSEMBLIES (06) - POWER TRAIN

90-7510T91

SHAFT

ASSEMBLY - drive, engine to transmission (8C), Includes: Ref. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

SHAFT - slip yoke

1шт.

2

NSS

NOT SOLD SEPARAT

SHAFT - flanged

1шт.

3

2-3842T1

SEAL RETAINER

SEAL - shaft retainer

1шт.

4

1-9994T3

SPIDER ASSY.

SPIDER - shaft, 8C

1шт.

Lube Fitting - P/N 87414, Qty 3

1шт.

5

428-832

BOLT,Hex, 1/2" - 20 x 2", Gr 8

- hex, 1/2 NF x 2 inch, grade 8

8шт.

197702A2

DRIVE SHAFT

SHAFT ASSEMBLY - drive, intermediate shaft to rear axle (8C), Includes: Ref. 8 - 17

1шт.

8

NSS

NOT SOLD SEPARAT

SHAFT - tube

1шт.

11

90-7379T1

YOKE

- shaft

1шт.

12

396-11131

WASHER,1 5/16" x 2 1/2" x .150"

- flat, 1-5/16 x 2-1/2 x 9/64 inch, hardened

1шт.

13

131-487

LOCK NUT,1 1/4"-18

NUT - heavy hex, self-locking, 1-1/4 - 18 inch

1шт.

16

1-9994T3

SPIDER ASSY.

SPIDER - shaft, 8C

1шт.

17

428-832

BOLT,Hex, 1/2" - 20 x 2", Gr 8

- hex, 1/2 NF x 2 inch, grade 8

8шт.

90-7376T91

SHAFT

ASSEMBLY - drive, intermdiate transmission to hanger bearing, Includes: Ref. 21 - 25

1шт.

21

NSS

NOT SOLD SEPARAT

SHAFT - slip yoke

1шт.

22

NSS

NOT SOLD SEPARAT

SHAFT - tube, includes a replaceable 219-1 grease fitting

1шт.

23

2-3842T1

SEAL RETAINER

SEAL - shaft retainer

1шт.

24

1-9994T3

SPIDER ASSY.

SPIDER - shaft, 8C

2шт.

25

428-832

BOLT,Hex, 1/2" - 20 x 2", Gr 8

- hex, 1/2 NF x 2 inch, grade 8

8шт.

222005A1

DRIVE SHAFT

SHAFT ASSEMBLY - drive, front axle to transmission (8C), Includes: Ref. 29 - 32

1шт.

29

NSS

NOT SOLD SEPARAT

SHAFT - tube, includes a replaceable 219-1 grease fitting

1шт.

31

1-9994T3

SPIDER ASSY.

SPIDER - shaft, 8C

2шт.

32

428-832

BOLT,Hex, 1/2" - 20 x 2", Gr 8

- hex, 1/2 NF x 2 inch, grade 8

8шт.
