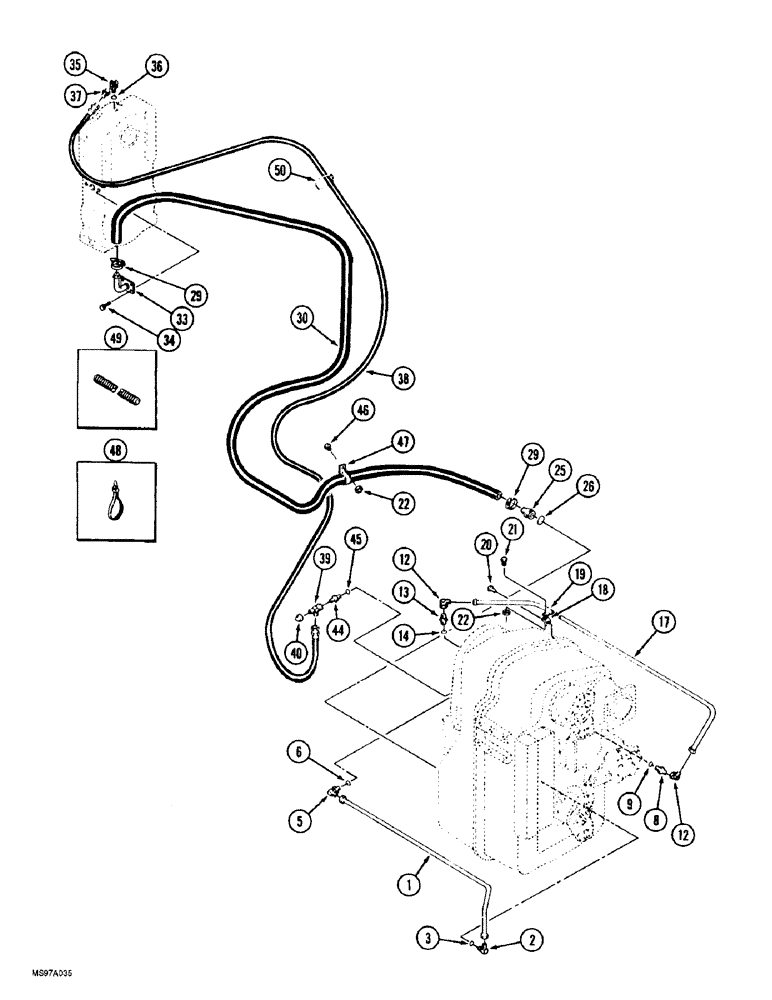

Запчасти Case IH 9380 QUADTRAC (6-042) - TRANSMISSION LUBRICATION, TRANSMISSION TO PTO TRANSFER CASE (06) - POWER TRAIN

1

90-6691T1

TUBE,.5" OD

- lubrication, range selector valve to PTO control valve

1шт.

2

218-5280

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring

- 90 degree, 3/4-16 flare x 9/16-18 inch adj O-ring boss, Includes: Ref. 3

1шт.

5

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 3/4-16 flare x 7/8-14 inch adj O-ring boss, Includes: Ref. 6

1шт.

6

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

8

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss, Incl. Ref 9

1шт.

9

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

12

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree, 3/4-16 inch flare x swivel

2шт.

13

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, O-ring boss, Incl. Ref 14 3/4"-16, 37º x 7/8"-14, O-Ring

1шт.

14

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

17

90-6889T1

TUBE,.5" OD

- lubrication, regulator valve to PTO control valve

1шт.

18

90-6894T1

SUPPORT

BRACKET - clamp mounting, tube support

1шт.

19

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

P-type, Tube 1/2", Insul, 3/8" Bolt

1шт.

20

SM8121240

BOLT

BOLT - hex, 12 - 1.75 x 40 mm

1шт.

21

426-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

- hex, 3/8 NC x 3/4 inch, grade 8

4шт.

22

425-106

NUT,3/8"-16, Cl 5

4шт.

25

217-173

FITTING,1" Hose Barb x 1-5/8" - 12 Male ORB

Includes Ref. 26 1" Hose x 1 5/8"-12 ORB, Beaded

1шт.

26

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk

1шт.

29

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP, HOSE, , Adj. #20, 0.81/1.75 Type F Worm

2шт.

30

31-3206

HOSE,1.00" ID x 124.00"

Suction, Transmission; Order S118383X, and Cut to Required Length; See Below 1.00" ID x 124.00"

1шт.

33

90-7256T1

FITTING

FLANGE - hose adapter, 1 inch hose end

1шт.

34

426-712

BOLT,Hex, 7/16" - 14 x 3/4", Gr 8

- hex, 7/16 NC x 5/8 inch, grade 8

4шт.

35

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adj O-ring boss, Includes: Ref. 36

1шт.

36

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

37

31-2537

FITTING

CONNECTOR - orificed

1шт.

38

31-3200

HOSE ASSY.

HOSE - lube, PTO valve to PTO housing, replaces 31-3080 hose

1шт.

39

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

- 3/4-16 inch flare branch x flare x swivel

1шт.

40

218-755

CAP,37 Degree, 3/4"-16

1шт.

44

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

ADAPTER - straight, 3/4-16 flare x 9/16-18 inch O-ring boss, Includes: Ref. 45

1шт.

46

426-516

BOLT,Hex, 5/16" - 18 x 1", Gr 8

- hex, 5/16 NC x 1 inch, grade 8

1шт.

47

31-2361

MOUNTING CLIP

CLAMP - P-type

1шт.

48

50-2037T1

STRAP

- tie

1шт.

49

50-3220T1

CONDUIT

- hose, flex, 1829 mm (72 inch) long, cut from S119717X bulk conduit, see below

1шт.

50

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch

3шт.

S119717X

CONDUIT

- bulk, 25 (1) ID x 4877 mm (192 inch) long

1шт.

31-2755

HOSE,1.00" ID

Bulk 1.00" ID

1шт.

3

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

45

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
