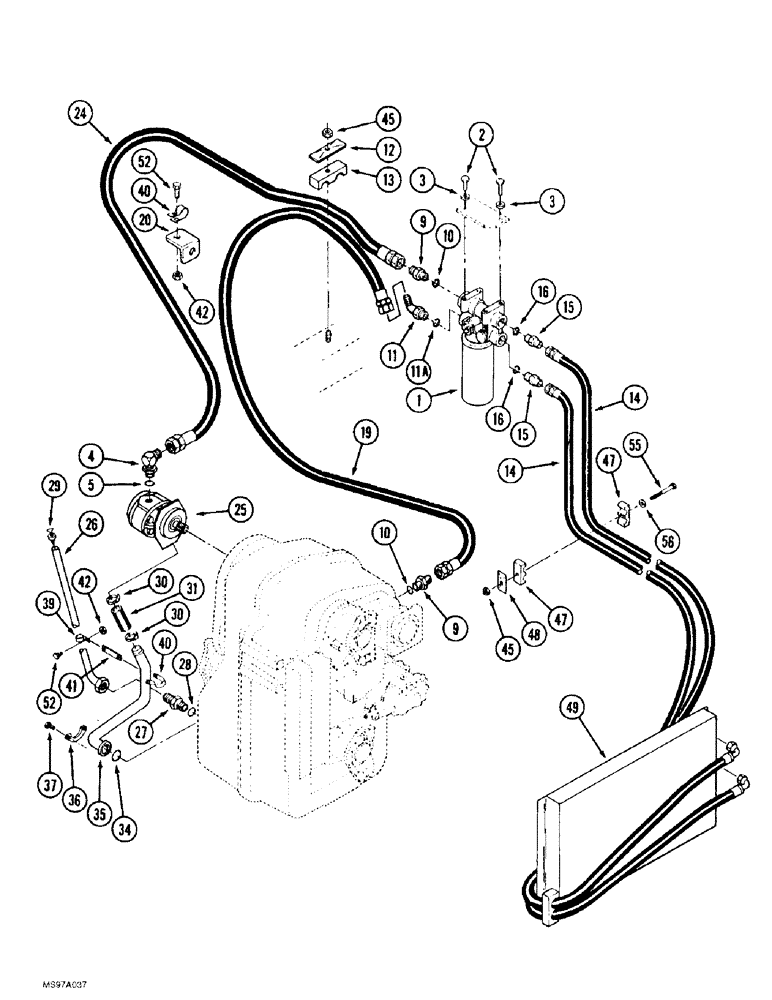

Запчасти Case IH 9380 QUADTRAC (6-040) - TRANSMISSION LUBRICATION, TRANSMISSION TO COOLER (06) - POWER TRAIN

1

50-3632T91

FILTER

ASSEMBLY - hydraulic oil, replaces 50-3493T91 filter, parts list Figure 8-024

1шт.

2

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

2шт.

3

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

4

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

90º, 1-5/16-12 inch flare x adj O-ring boss, Incl. Ref. 5

1шт.

9

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter - straight, 1-5/16-12 inch flare x O-ring boss, Incl. Ref. 10

2шт.

11

218-5140

45 ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

- 45 degree, 1-5/16-12 inch flare x adj O-ring boss, Includes: Ref. 11A

1шт.

12

50-2668T1

PLATE

- clamp support

1шт.

13

50-2965T1

HOSE CLAMP

CLAMP - double, hoses

1шт.

14

31-1486

HOSE

-, Serial Range: filter-cooler

2шт.

15

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, 1-1/16-12 inch flare x O-ring boss, Incl. Ref. 16

2шт.

16

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

14-1, 90 Duro, 1.048" ID x .116" Thk

2шт.

19

31-2938

HOSE

-, Serial Range: filter-transmission

1шт.

20

90-6894T1

SUPPORT

BRACKET - clamp mounting, tube support

2шт.

24

31-3079

HOSE

-, Serial Range: filter-pump

1шт.

25

33-1524T91

PUMP, HYDRAULIC

PUMP ASSEMBLY - transmission lubrication, parts list Figure 6-028

1шт.

33-1524T91R

REMAN-HYD PUMP

QUADTRAC® (1/97-12/99)

1шт.

33-1524T91C

CORE-HYDRAULIC PUMP

RETURN NUMBER

1шт.

26

90-7490T1

TUBE,25, 2.37 mm L

- dipstick

1шт.

27

218-5072

HYD CONNECTOR,1-5/8" - 12 Male JIC x 1-5/8" - 12 Male ORB

ADAPTER - straight, 1-5/8-12 inch flare x O-ring boss, Includes: Ref. 28

1шт.

28

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk

1шт.

29

90-6546T1

DIPSTICK

- oil check

1шт.

30

31-1283

MOUNTING CLIP

CLAMP - adjustable, 1-1/4 x 2-5/8 inch

2шт.

31

1-4571

HOSE

- 114 mm (4-1/2 inch) long, cut from 1-4482 bulk hose, see below, Serial Range: pump-transmission

1шт.

34

238-6222

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

1шт.

35

90-7064T1

TUBE,1.5" OD

- pump to transmission, without PTO

1шт.

35

90-7063T1

TUBE,1.5" OD

- pump to transmission, with PTO

1шт.

36

31-1910

COUPLING FLANGE

FLANGE - split, clamp halves

2шт.

37

426-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8

- hex, 3/8 NC x 1-1/2 inch, grade 8

4шт.

39

515-23317

CLAMP,31.75mm ID, 10.3mm Bolt Hole, P Type

P-type 1 1/4", Insul, 3/8" Bolt

1шт.

40

515-23381

CLAMP,1 1/2", Insul, 3/8" Bolt

P-type 1 1/2", Insul, 3/8" Bolt

2шт.

41

90-6886T1

LARGE PLATE

STRAP - clamp support, replaces 90-6588T1 bracket

1шт.

42

425-106

NUT,3/8"-16, Cl 5

4шт.

45

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

47

50-2534T1

CLAMP

- split, one-half

2шт.

48

50-2533T1

PLATE

- clamp support

1шт.

49

90-8163T1

COOLER, OIL

COOLER - oil, hydraulic, See Figure 8-030 for cooler mounting

1шт.

52

426-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

- hex, 3/8 NC x 3/4 inch, grade 8

4шт.

55

426-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 8

- hex, 5/16 NC x 2-1/2 inch, grade 8

1шт.

56

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32") 5/16"

1шт.

1-4482

LARGE HOSE

HOSE - bulk, 3048 mm (120 inch) long, sold by the foot

1шт.

5

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

10

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

11a

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.
