Запчасти Case IH 9370 QUADTRAC (6-014) - POWER SHIFT TRANSMISSION ASSEMBLY, COMPOUND SHAFT (06) - POWER TRAIN

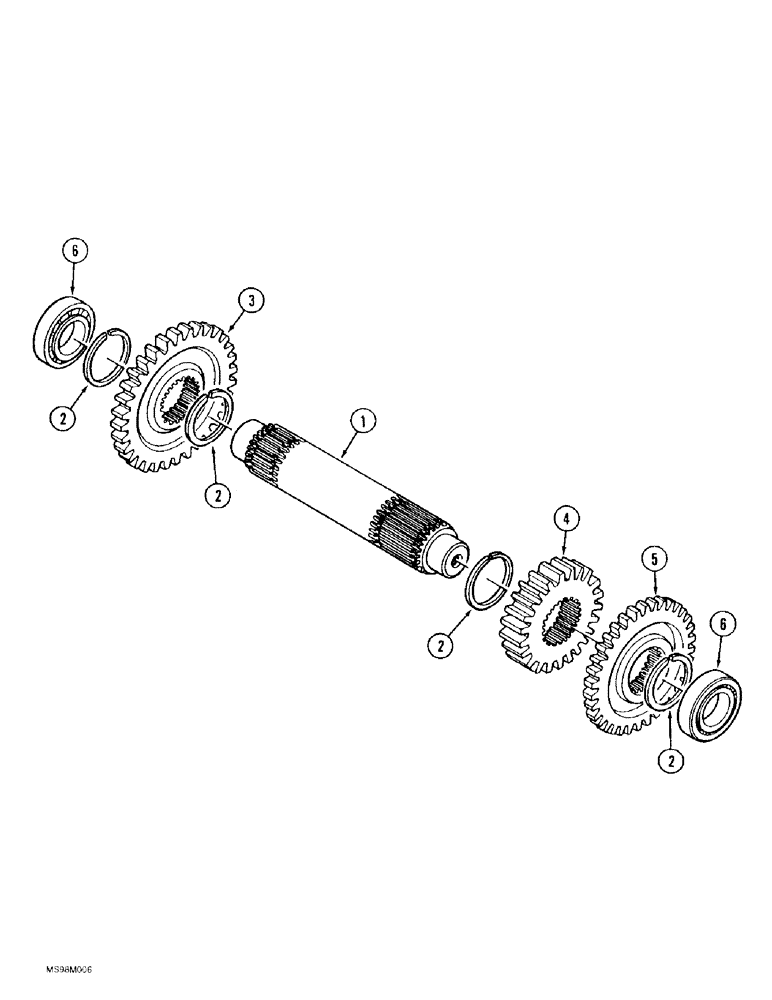

Схема запчастей Case IH 9370 QUADTRAC - (6-014) - POWER SHIFT TRANSMISSION ASSEMBLY, COMPOUND SHAFT (06) - POWER TRAIN
5
6
1
2
2
2
3
4
6
2

Артикул

Название

Примечание

Количество

90-8454T91

GEARBOX ASSY

TRANSMISSION ASSEMBLY - Powershift, replaces 90-7016T91 transmission, parts list Figures 6-004 - 6-030, Includes: Ref. 1 - 6

1шт.

1

33-1436T1

SHAFT

- compound

1шт.

2

33-1416T1

RING, SNAP

RING - retaining

4шт.

3

33-1415T3

PINION

GEAR - compound shaft, replaces 33-1415T2 gear

1шт.

4

33-1434T1

PINION

GEAR - drive, 22 teeth

1шт.

5

33-1435T1

PINION

GEAR - driven, 29 teeth

1шт.

6

90-8459T1

ROLLER BEARING

CONE - tapered roller bearing, replaces 529207R91 cone and 529208R1 cup

2шт.

Выбрано товаров: 7
