Запчасти Case IH 9370 QUADTRAC (6-012) - POWER SHIFT TRANSMISSION ASSEMBLY, HOUSINGS AND CLUTCHES (06) - POWER TRAIN

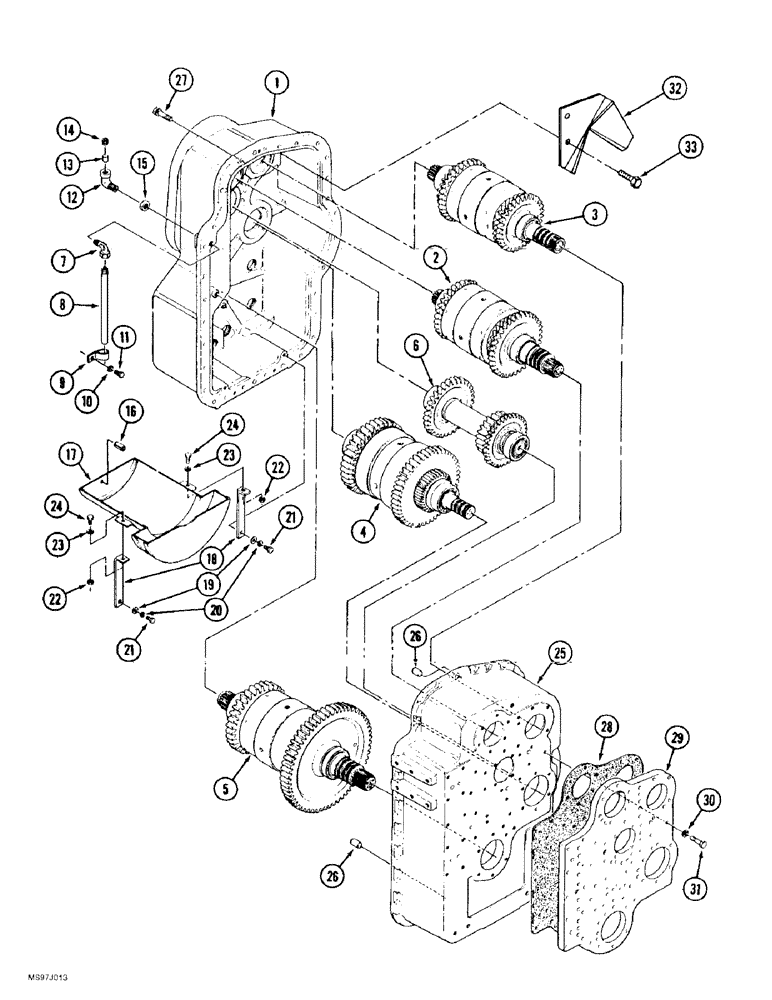

Схема запчастей Case IH 9370 QUADTRAC - (6-012) - POWER SHIFT TRANSMISSION ASSEMBLY, HOUSINGS AND CLUTCHES (06) - POWER TRAIN
24
21
12
30
9
5
32
23
28
21
26
24
33
11
22
2
10
22
1
4
29
25
6
17
27
26
31
19
23
8
18
20
15
16
7
14
3
13

Артикул

Название

Примечание

Количество

90-8454T91

GEARBOX ASSY

TRANSMISSION ASSEMBLY - Powershift, replaces 90-7016T91 transmission, parts list Figures 6-004 - 6-030, Includes: Ref. 1 - 33

1шт.

1

33-1560T1

HOUSING

- transmission, rear

1шт.

2

S2000S02F

CLUTCH & DISC ASSY

PACK ASSEMBLY - clutch, input, replaces S2000S01A pack, parts list Figure 6-016

1шт.

3

S3000S02F

CLUTCH HOUSING

PACK ASSEMBLY - clutch, second, replaces S3000S01F pack, parts list Figure 6-018

1шт.

4

S5000S00F

CLUTCH HOUSING

PACK ASSEMBLY - clutch, 9 inch, parts list Figure 6-022

1шт.

5

S4000S02F

CLUTCH HOUSING

PACK ASSEMBLY - clutch, 8 inch, parts list Figure 6-020

1шт.

6

REF

INSTRUCTION

SHAFT - compound, parts list Figure 6-014

1шт.

7

33-1472T1

ELBOW

- breather tube

1шт.

8

33-1471T1

TUBE

- breather

1шт.

9

33-1473T1

MOUNTING CLIP

CLAMP - breather tube

1шт.

10

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

1шт.

11

SM8124225

BOLT

BOLT - hex, 12 mm - 1.25 x 25 mm

1шт.

12

33-1455T1

VENTILATION PIPE

ELBOW - 90 degree, breather filter

1шт.

13

33-1454T1

BREATHER

FILTER - breather

1шт.

14

SAS99900F

PLUG

- retension, filter element

1шт.

15

SM8911246

NUT

- hex, 16 mm - 1.5

1шт.

16

33-1423T1

PIN, ROLL

PIN - roll

1шт.

17

33-1425T1

PAN, ENGINE OIL

BAFFLE - oil

1шт.

18

33-1424T1

STRAP

- oil baffle

2шт.

19

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

- flat, 13.5 x 24 x 2.5 mm

2шт.

20

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

2шт.

21

SM8124225

BOLT

BOLT - hex, 12 mm - 1.25 x 25 mm

2шт.

22

825-11410

NUT,M10 x 1.25, Cl 8

2шт.

24

SM8124020

BOLT

BOLT - hex, 10 - 1.25 x 20 mm

2шт.

25

S1400S01F

HOUSING

- transmission, front

1шт.

26

33-1467T1

DOWEL

PIN - dowel

2шт.

27

SM8121240

BOLT

BOLT - hex, 12 - 1.75 x 40 mm

30шт.

28

S1590S01F

GASKET

- oil supply plate

1шт.

Part of transmission gasket kit P/N 33-1559T2.

1шт.

29

S1580S00F

LARGE PLATE

PLATE - oil supply

1шт.

30

892-11010

LOCK WASHER,M10

7шт.

31

514-738

BOLT,Hex, M10 x 1.25 x 45mm, Cl 8.8, Full Thd

7шт.

32

90-8403T1

CHANNEL

GUTTER - oil, upper rear input gear mesh

1шт.

33

614-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

2шт.

33-1559T2

GASKET

KIT - gasket, transmission rebuild, Includes: Ref. 28 and parts on Figures 6-004 - 6-026

1шт.

23

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.
