Артикул
Название
Примечание
Количество
90-8454T91
GEARBOX ASSY

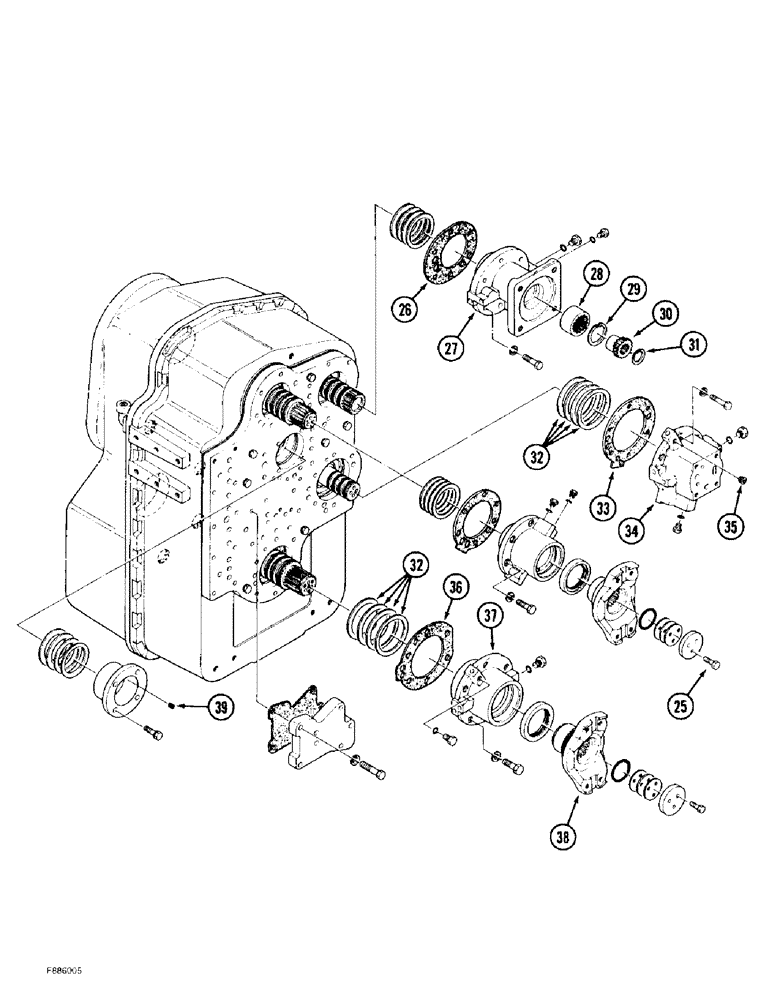

TRANSMISSION ASSEMBLY - Powershift, replaces 90-7016T91 transmission, parts list Figures 6-004 - 6-030, Includes: Ref. 25 - 39 and 1 - 24 on Figure 6-008
1шт.
25
SM8174035
BOLT
BOLT - hex, special, 10 - 1.25 x 35 mm, class 10.9
3шт.
26
33-1468T2
GASKET
- pump support
1шт.
Part of short gasket kit P/N 90-8402T91.
1шт.
27
33-1514T1
HOLDER
SUPPORT - oil pump
1шт.
28
33-1444T1
COUPLING
- pump adapter
1шт.
29
33-1445T1
RING, SNAP
RING - snap
1шт.
30
33-1515T1
ADAPTER
- pump drive
1шт.
31
33-1517T1
RING, SNAP
RING - snap
1шт.
32
33-1460T1
SHIM
- bearing, 0.1 mm thick
1шт.
32
33-1461T1
SHIM
- bearing, 0.3 mm thick
1шт.
32
33-1462T1
SHIM
- bearing, 0.5 mm thick
1шт.
32
33-1463T1
SHIM
- bearing, 0.7 mm thick
1шт.
32
33-1475T1
SHIM
- bearing, 0.15 mm thick
1шт.
33
33-1433T2
GASKET
- clutch collector
1шт.
Part of short gasket kit P/N 90-8402T91.
1шт.
34
33-1438T1
CLUTCH
COLLECTOR - clutch
1шт.
35
STX99700F
PLUG
- oil
1шт.
36
33-1426T2
GASKET
- bearing retainer
1шт.
Part of short gasket kit P/N 90-8402T91.
1шт.
37
33-1427T1
BEARING CARRIER
RETAINER - bearing
1шт.
38
33-1429T1
YOKE
- output, front
1шт.
39
33-1439T1
PLUG
- orifice
2шт.
33-1559T2
GASKET
KIT - gasket, transmission rebuild, Includes: parts on Figures 6-004 - 6-026
1шт.
90-8402T91
GASKET KIT
KIT - gasket, short, Includes: Ref. 26, 33 and 36 and parts on Figures 6-004 - 6-010
1шт.
Выбрано товаров: 25
