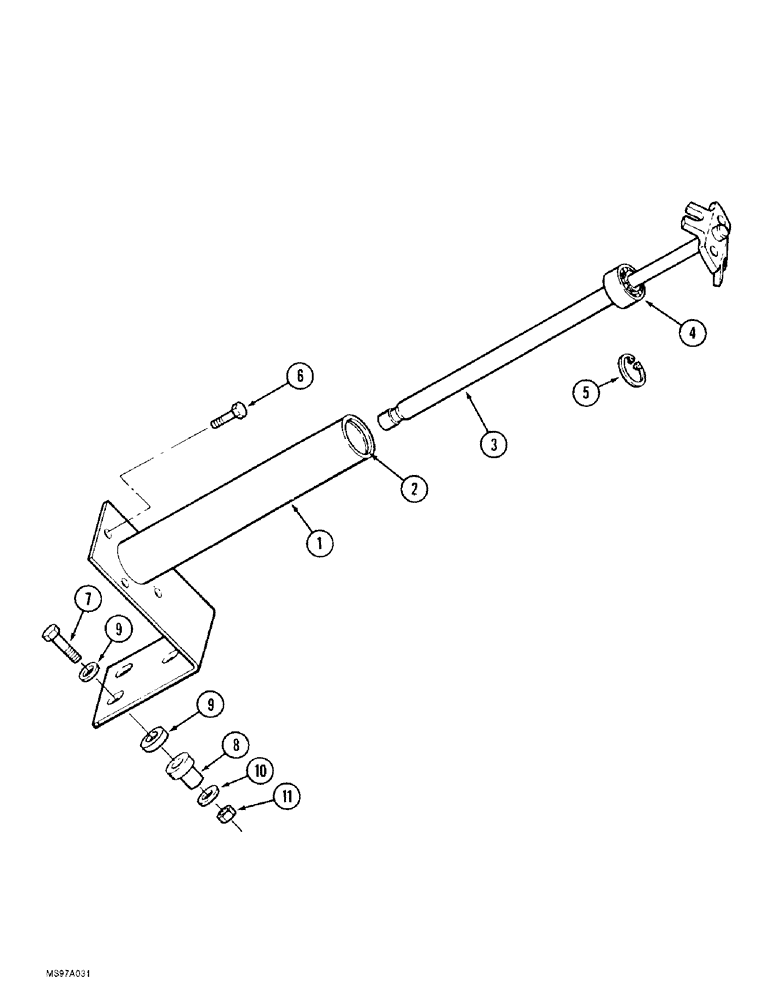

Запчасти Case IH 9370 QUADTRAC (5-004) - STEERING COLUMN LOWER SHAFT (05) - STEERING

60-6855T91

STEERING SHAFT

COLUMN ASSEMBLY - steering, lower, no longer available, order component parts separately, Includes: Ref. 1 - 5

1шт.

1

60-6665T1

STEERING COLUMN

COLUMN - steering shaft, lower

1шт.

2

100-21185

SNAP RING,1.852", Int, #185

Ring, Snap, 1.852", Int, #185

1шт.

3

60-6664T1

STEERING SHAFT

SHAFT ASSEMBLY - lower steering, Includes: Ref. 4 & 5

1шт.

4

60-6177T1

BALL BEARING,0.7874" ID x 1.8504" OD x 0.5512"

BEARING - ball

1шт.

5

19-5860

SNAP RING,#75, Ext

Ring, Snap, #75, Ext

1шт.

6

426-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

- hex, 3/8 NC x 3/4 inch, grade 8, Used with 50-3553T92 steering control, prior to P.I.N. JEE0071531, parts list Figure 5-014

4шт.

6

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 20 mm, class 10.9, Used with 50-3653T91 steering control, P.I.N. JEE0071531 and after, parts list Figure 5-014

4шт.

7

426-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 8

- hex, 3/8 NC x 1-3/4 inch, grade 8

3шт.

8

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

INSULATOR - rubber, replaces 196504C1 bushing

3шт.

9

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

6шт.

10

496-41041

WASHER,13/32" x 1 1/8" x .134"

- flat, 13/32 x 1-1/8 x 9/64 inch, hardened

3шт.

11

231-1446

NUT,3/8" - 16, Gr 5

NUT, LOCK, 3/8"-16, GB

3шт.
