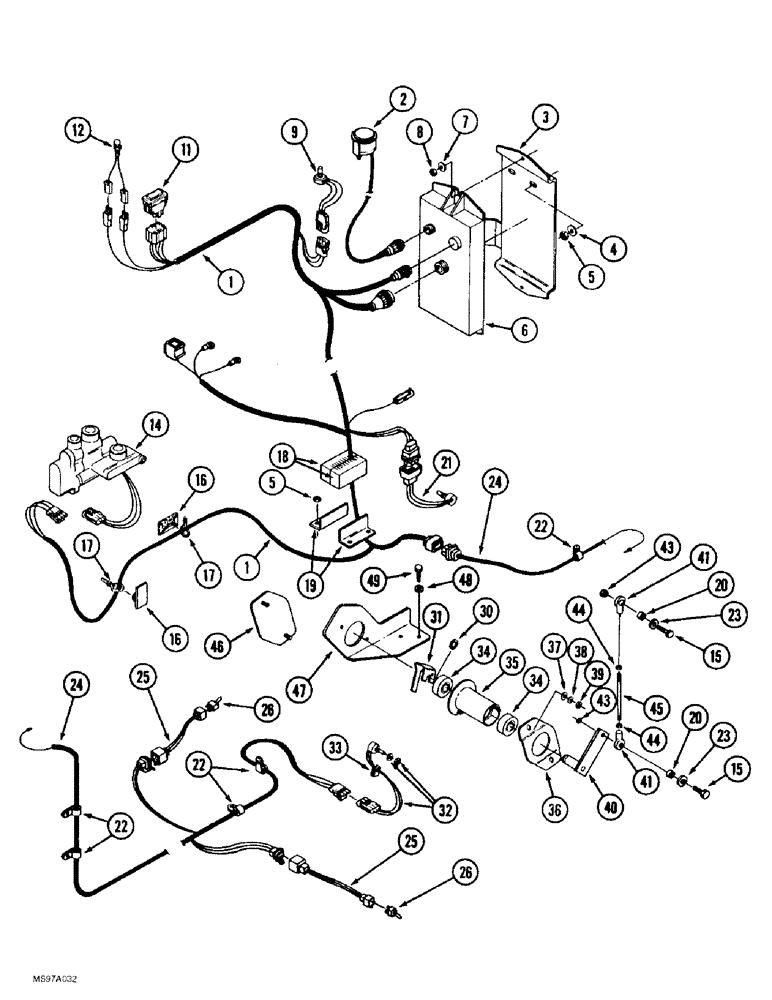

Запчасти Case IH 9370 QUADTRAC (4-070) - THREE POINT HITCH HARNESSES, PRIOR TO P.I.N. JEE0069655 (04) - ELECTRICAL SYSTEMS

1

60-7017T2

HARNESS

- electronic depth control

1шт.

2

60-7222T1

GAUGE ASSY.

GAUGE - display, seven segment

1шт.

3

60-6120T1

LARGE PLATE

PLATE - mounting, controller

1шт.

4

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

3шт.

5

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

7шт.

6

232836A3

CONTROL

LER - three point hitch, electronic

1шт.

7

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

2шт.

8

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

2шт.

9

A186061

POTENTIOMETER,10,000 Ohm, 8V

Electrical 10,000 Ohm, 8V

1шт.

11

60-7018T1

IGNITION SWITCH

SWITCH - rocker

1шт.

12

1964672C1

LIGHT

- indicator, amber, 14 volt

1шт.

14

50-3321T91

VALVE

ASSEMBLY - control, three point hitch, parts list Figure 8-086

1шт.

15

163-55

SCREW,Hex, #10 - 24 x 1 1/4", Gr 5

- machine, hex head, No. 10 NC x 1-1/4 inch

2шт.

16

22-823

MOUNT

MOUNT - adhesive back, strap

2шт.

17

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch

1шт.

18

60-6066T1

FOAM

SEAL - foam

2шт.

19

60-6065T1

ANGLE BAR

ANGLE - retaining, foam

2шт.

20

90-7749T1

SPACER

Joint

2шт.

21

122756A3

POTENTIOMETER,1000 Ohm, 8V

Single, 1K 1000 Ohm, 8V

1шт.

22

515-23238

CLAMP,15/16", Insul, 3/8" Bolt

P-type, Harness 15/16", Insul, 3/8" Bolt

5шт.

23

495-31022

WASHER,#10

2шт.

24

60-7016T3

HARNESS

- three point hitch

1шт.

25

60-7167T1

HARNESS

- switch, three point hitch

2шт.

26

60-7039T1

IGNITION SWITCH

SWITCH - toggle, three point hitch

2шт.

60-7012T91

HOUSING ASSY.

HOUSING ASSEMBLY, Potentiometer, Prior to P.I.N. JEE0069308, See Figure 4-80 for P.I.N. JEE0069308 and after, Includes: Ref. 30 - 47

1шт.

30

19-5860

SNAP RING,#75, Ext

Ring, Snap, #75, Ext

1шт.

31

60-6186T1

SUPPORT

Mount, Potentiometer

1шт.

32

122756A3

POTENTIOMETER,1000 Ohm, 8V

Single, 1K, Raise and Lower 1000 Ohm, 8V

1шт.

33

31-2475

GROMMET

- wire

1шт.

34

60-6177T1

BALL BEARING,0.7874" ID x 1.8504" OD x 0.5512"

BEARING - ball

2шт.

35

60-6167T3

BEARING HOUSING,1.654" ID x 3.25" OD x 2.928"

Housing, Potentiometer

1шт.

36

60-6169T2

RETAINER

Housing

1шт.

37

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

2шт.

38

493-21026

LOCK WASHER,Int Tooth, 1/4"

WASHER - internal tooth lock, 1/4 inch

2шт.

39

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

2шт.

40

60-7159T2

LEVER

- actuating

1шт.

41

H433283

BALL JOINT

JOINT - ball, linkage

2шт.

43

86625057

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

2шт.

44

225-14210

NUT,#10-32

2шт.

45

60-6175T1

TRUSS ROD

ROD - actuating

1шт.

46

60-6185T1

LARGE PLATE

PLATE - mounting, housing

1шт.

47

60-6653T1

SUPPORT

Mount, Potentiometer Assembly

1шт.

48

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

49

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

Prior to P.I.N. JEE0069308 Hex, 3/8"-16 x 1", G8, Full Thd

2шт.
