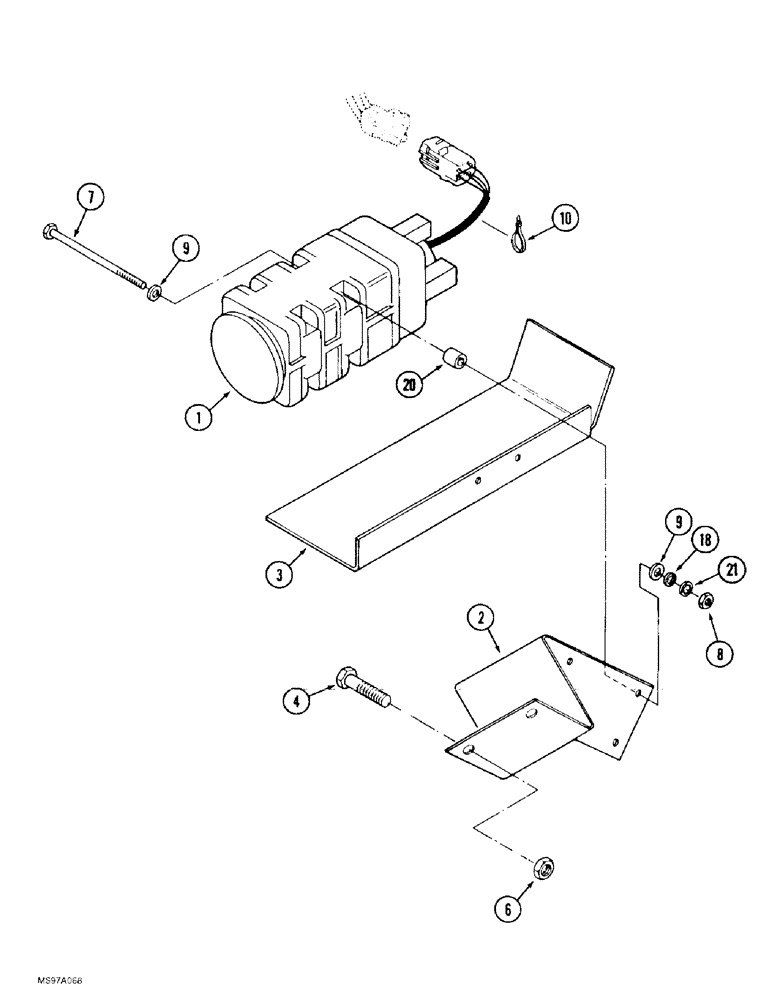

Запчасти Case IH 9370 QUADTRAC (4-068) - GROUND SPEED SENSOR (04) - ELECTRICAL SYSTEMS

1

228760A1

RADAR

SENSOR - speed, ground

1шт.

2

60-6130T1

BRACKET

- mounting, sensor

1шт.

3

60-6131T1

GUARD ASSY.

GUARD - sensor

1шт.

4

426-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 8

- hex, 1/2 NC x 1-3/4 inch, grade 8

2шт.

6

231-1448

NUT,1/2"-13, GB

- hex, self-locking, 1/2 inch NC

2шт.

7

426-472

BOLT,Hex, 1/4" - 20 x 4-1/2", Gr 8

- hex, 1/4 NC x 4-1/2 inch, grade 8

4шт.

8

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

4шт.

9

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

8шт.

10

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch

1шт.

18

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

20

50-2955T1

SPACER

- standoff

4шт.

21

493-21026

LOCK WASHER,Int Tooth, 1/4"

WASHER - internal tooth lock, 1/4 inch, mounting

4шт.
