(4-042) - SIDE MARKER LAMPS

Запчасти Case IH 9370 QUADTRAC (4-042) - SIDE MARKER LAMPS (04) - ELECTRICAL SYSTEMS

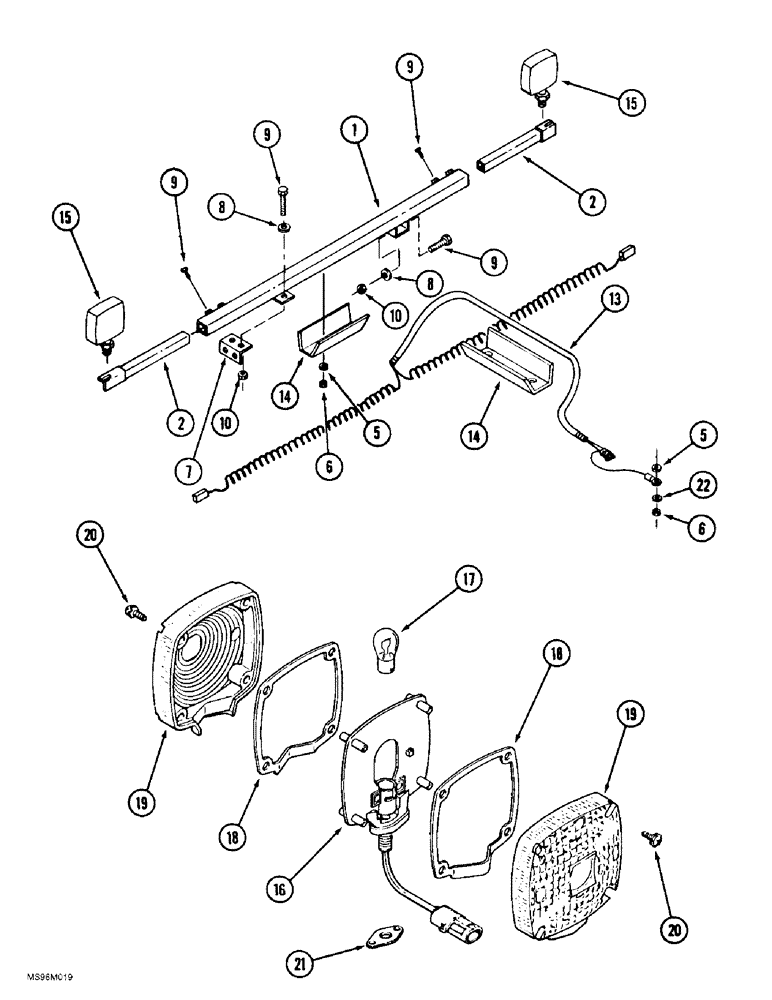

Схема запчастей Case IH 9370 QUADTRAC - (4-042) - SIDE MARKER LAMPS (04) - ELECTRICAL SYSTEMS
9
14
19
2
17
7
20
16
6
18
8
15
14
20
10
13
5
15
19
9
18
5
1
9
6
22
21
2
8
10
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

70-6817T1

TUBE

- side marker

1шт.

2

70-6767T1

TUBE

- extension, side marker

2шт.

5

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

4шт.

6

231-1444

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

5шт.

7

70-6818T1

SUPPORT

ANGLE - support

2шт.

8

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

9шт.

9

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

5шт.

10

425-106

NUT,3/8"-16, Cl 5

9шт.

13

60-7038T1

HARNESS

- side marker

1шт.

14

227934A1

CONDUIT

GUARD - wire

2шт.

15

91913C91

LIGHT

LAMP ASSEMBLY - side marker, Includes: Ref. 16 - 20

2шт.

16

NSS

NOT SOLD SEPARAT

BODY - lamp

1шт.

17

A41264

BULB,#1156, 12V

Lamp #1156, 12V

1шт.

18

A43731

GASKET

- sealing, lens

2шт.

A44202

KIT

- lens, Includes: Ref. 19 & 20

1шт.

19

NSS

NOT SOLD SEPARAT

LENS - lamp, amber

1шт.

20

187-1083

SELF-TAP SCREW,Cross Pan Hd, #8 x 5/8"

SCREW - self-tapping, round head Phillips, No. 8 NC x 5/8 inch

4шт.

21

F63435

GASKET

- lamp mounting

2шт.

22

493-21026

LOCK WASHER,Int Tooth, 1/4"

WASHER - internal tooth lock, 1/4 inch

1шт.
