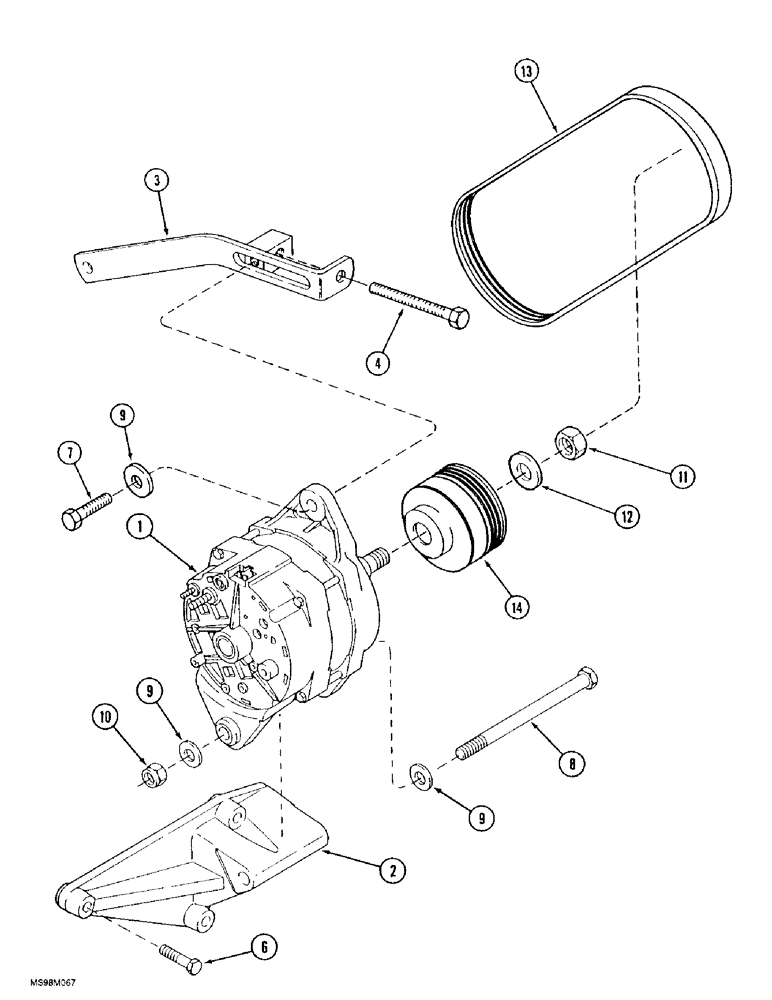

Запчасти Case IH 9370 QUADTRAC (4-034) - ALTERNATOR MOUNTING, P.I.N. JEE0074062 AND AFTER (04) - ELECTRICAL SYSTEMS

1

1987560C1

ALTERNATOR

ALTERNATOR ASSEMBLY - engine, 125 amp, Includes: Ref. 11, A49635 nut and Ref. 12, A40792 washer, parts list Figure 4-036

1шт.

1

1987560C1GV

ALTERNATOR

Value

1шт.

1

1987560C1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 125 ampere

1шт.

1

1987560C1C

CORE-ALTERNATOR

Return Part Number

1шт.

1

125849A1

ALTERNATOR,12V, 135A, W/ Pulley

ALTERNATOR, Units with PIN JEE0074933 and after

1шт.

1

125849A1R

REMAN-ALTERNATOR

Units with PIN JEE0074933 and after

1шт.

1

125849A1C

CORE-ALTERNATOR

Return Number

1шт.

1

125849A1GV

ALTERNATOR

Value, 12 Volt 135 Amp

1шт.

2

REF

INSTRUCTION

MOUNT - alternator

1шт.

Supplied with Cummins engine. See your Cummins engine dealer for service.

1шт.

2

357134A1

MOUNTING PARTS

MOUNT - alternator, Units with PIN JEE0074933 and after

1шт.

3

REF

INSTRUCTION

BRACKET - alternator mount

1шт.

Supplied with Cummins engine. See your Cummins engine dealer for service.

1шт.

3

367449A2

LINK

BRACKET - alternator, Units with PIN JEE0074933 and after

1шт.

4

REF

INSTRUCTION

BOLT - hex

1шт.

Supplied with Cummins engine. See your Cummins engine dealer for service.

1шт.

6

REF

INSTRUCTION

BOLT - hex

3шт.

Supplied with Cummins engine. See your Cummins engine dealer for service.

1шт.

7

REF

INSTRUCTION

BOLT - hex

1шт.

Supplied with Cummins engine. See your Cummins engine dealer for service.

1шт.

8

REF

INSTRUCTION

BOLT - hex

1шт.

Supplied with Cummins engine. See your Cummins engine dealer for service.

1шт.

9

REF

INSTRUCTION

WASHER - flat

3шт.

Supplied with Cummins engine. See your Cummins engine dealer for service.

1шт.

10

REF

INSTRUCTION

NUT - hex

1шт.

Supplied with Cummins engine. See your Cummins engine dealer for service.

1шт.

11

A49635

NUT

NUT - shaft

1шт.

12

A40792

WASHER

WASHER - flat, 5/8 x 1-1/4 x 3/32 inch

1шт.

13

90-8383T1

V-BELT,3.60 mm W x 1054.00 mm L, 5 Ribs

Alternator

1шт.

14

REF

INSTRUCTION

PULLEY - alternator, belt

1шт.

Supplied with Cummins engine. See your Cummins engine dealer for service.

1шт.
