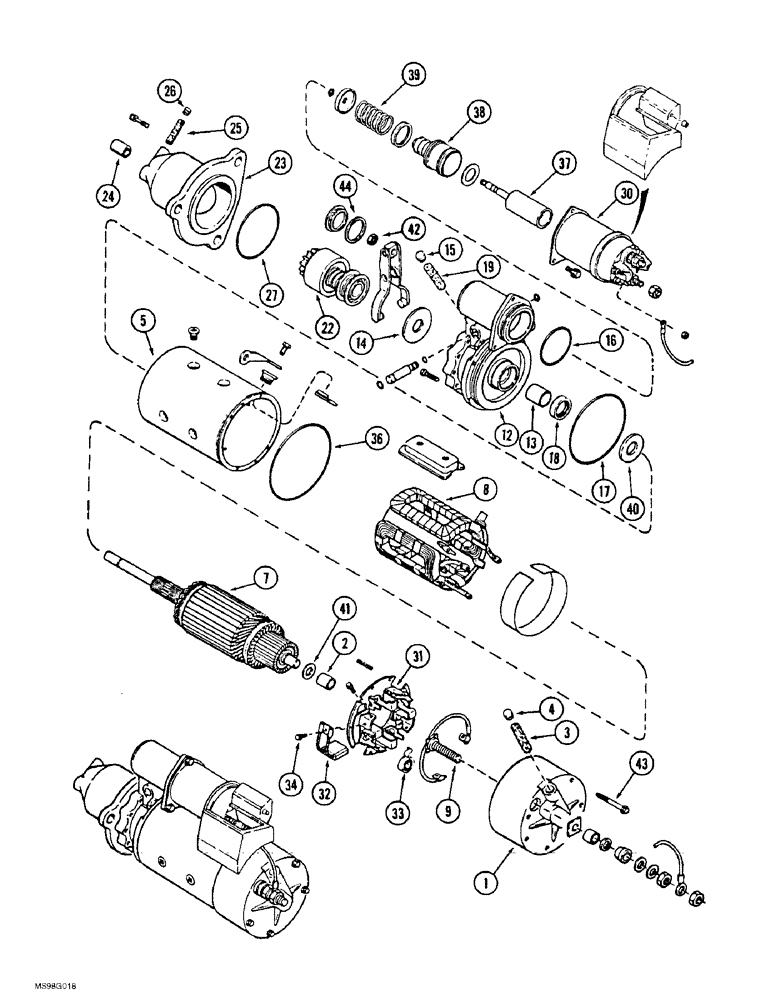

Запчасти Case IH 9370 QUADTRAC (4-028) - STARTER ASSEMBLY (04) - ELECTRICAL SYSTEMS

140855A2

STARTING MOTOR

KIT - starter, 12 volt, Includes: Ref. 1 - 44 and 50 - 99 on Figure 4-030

1шт.

140855A3R

REMAN-STARTER,12V

Remanufactured Starter 12 volt, 42MT

1шт.

140855A3C

CORE-STARTER,12V

Return Part Number 12 volt, 42MT

1шт.

1

A187561

COVER

COVER ASSEMBLY - commutator end, Includes: Ref. 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

BUSHING - armature, cummutator end

1шт.

Included in brush kit A187514.

1шт.

3

A49769

WICK

WICK - oil

1шт.

Included in brush kit A187514.

1шт.

4

A49573

PLUG

PLUG - oil wick

1шт.

Included in brush kit A187514.

1шт.

5

NSS

NOT SOLD SEPARAT

HOUSING - starter

1шт.

7

81772C1

ROTOR

ARMATURE - starter

1шт.

8

81771C1

COIL ASSY.

COIL - field

1шт.

9

A49764

TERMINAL CONNECTOR

WIRE - terminal, commutator end

1шт.

12

A49772

HOUSING

HOUSING - shift lever, Includes: Ref. 13 - 19

1шт.

13

A49765

BUSHING

BUSHING - armature, lever housing

1шт.

Included in brush kit A187514.

1шт.

14

NSS

NOT SOLD SEPARAT

WASHER - shift lever housing, brake

1шт.

Included in brush kit A187514.

1шт.

15

A49573

PLUG

PLUG - oil wick

1шт.

Included in brush kit A187514.

1шт.

16

238-5228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

O-RING, , Switch -228, 70 Duro, 2.234" ID x .139" Thk

1шт.

Included in shift lever kit A187515.

1шт.

Included in brush kit A187514.

1шт.

17

238-5243

O-RING,0.139" Thk x 4.11" ID, -243, Cl 5, 75 Duro

O-RING - 4-1/4 ID x 1/8 inch wide, lever housing

1шт.

Included in brush kit A187514.

1шт.

18

R21582

OIL SEAL

SEAL - oil, lever housing

1шт.

Included in brush kit A187514.

1шт.

19

A49567

WICK

WICK - oil, armature bushing

1шт.

Included in brush kit A187514.

1шт.

22

20-1343T1

DRIVE ASSY.

CLUTCH - drive

1шт.

23

A49773

HOUSING

HOUSING - drive end, Includes: Ref. 24 - 27

1шт.

24

A47257

BUSHING

BUSHING - armature, drive housing

1шт.

Included in brush kit A187514.

1шт.

25

A47888

WICK

WICK - oil

1шт.

Included in brush kit A187514.

1шт.

26

A47889

PLUG

PLUG - oil wick

1шт.

Included in brush kit A187514.

1шт.

27

A43854

O-RING,3.237" ID x 0.106" THK

O-RING - housing, drive housing

1шт.

Included in shift lever kit A187515.

1шт.

Included in brush kit A187514.

1шт.

30

141338A1

SOLENOID

KIT - solenoid, magnetic, with shield

1шт.

31

81769C1

BRUSH HOLDER

HOLDER, BRUSH PLATE - brush, Includes: Ref. 32 - 36

1шт.

81774C1

BRUSH SET

BRUSH KIT - starter, replaces 142961A1 kit, Includes: Ref. 32 - 36

1шт.

32

81770C1

BRUSH, COMMUTATOR

BRUSH BRUSH - starter

4шт.

Included in brush kit 81774C1.

1шт.

33

A49575

SPRING

SPRING - brush

4шт.

Included in brush kit 81774C1.

1шт.

34

A47894

SCREW,#8 - 32 x 5/16"

SCREW - brush retainer

4шт.

Included in brush kit 81774C1.

1шт.

36

238-5158

O-RING,0.103" Thk x 4.737" ID, -158, Cl 5, 75 Duro

O-RING, , Commutator end -158, 70 Duro, 4.737" ID x .103" Thk

1шт.

Included in brush kit A187514.

1шт.

Included in brush kit 81774C1.

1шт.

37

A49757

PLUNGER

PLUNGER - solenoid

1шт.

38

A49589

BOOT

BOOT - plunger

1шт.

39

A41242

SPRING

SPRING - plunger return

1шт.

40

A40892

WASHER

WASHER - thrust, flat, 13/16 x 1-3/4 x 3/16 inch

1шт.

Included in brush kit A187514.

1шт.

41

195-2056

WASHER,5/8" x 1" x .065"

WASHER - flat, 9/16 x 1 x 1/16 inch, thrust

1шт.

Included in brush kit A187514.

1шт.

42

131-489

LOCK NUT,5/16"-24, G8

NUT - hex, self-locking

1шт.

Included in shift lever kit A187515.

1шт.

Included in brush kit A187514.

1шт.

43

142952A1

SCREW,#10 - 32 x 3-1/8"

BOLT - commutator frame, hex Keps

6шт.

Included in brush kit A187514.

1шт.

Included in brush kit 81774C1.

1шт.

44

A41924

GASKET

GASKET - inspection plug

1шт.

Included in shift lever kit A187515.

1шт.

Included in brush kit A187514.

1шт.
