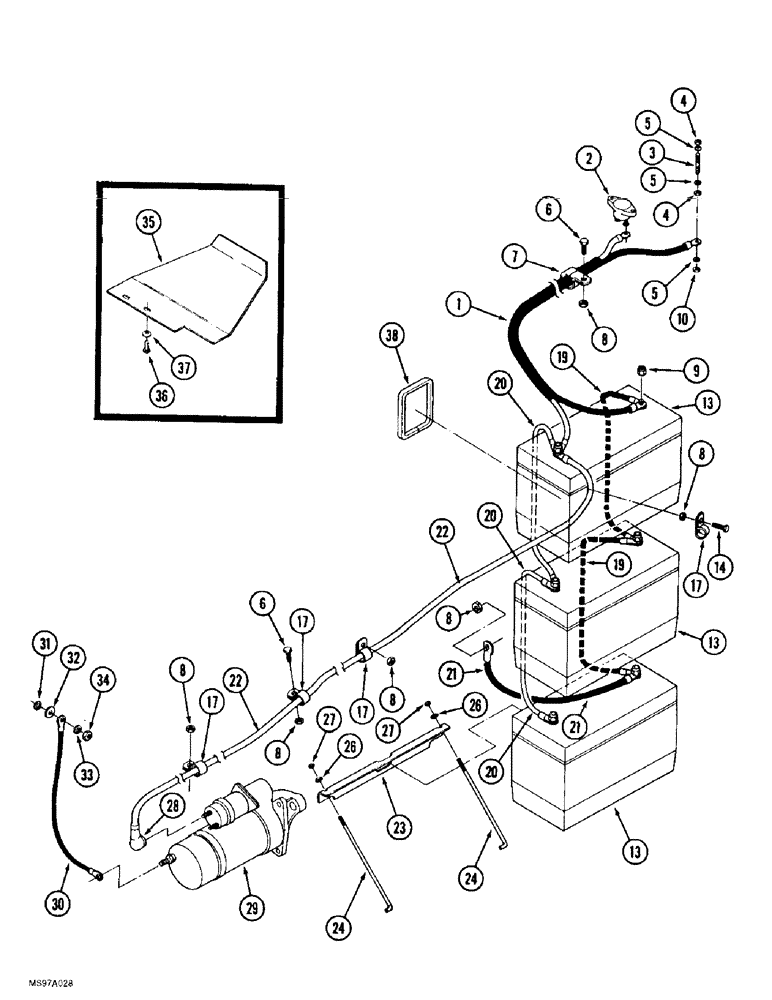

Запчасти Case IH 9370 QUADTRAC (4-026) - BATTERIES AND CABLES (04) - ELECTRICAL SYSTEMS

1

20-2458T1

HARNESS

HARNESS - cab power

1шт.

2

20-2041T2

CIRCUIT BREAKER

BREAKER - circuit

1шт.

3

60-1880T1

STUD

STUD - ground

1шт.

4

425-104

NUT,1/4"-20, Cl 5

NUT - hex, 1/4 inch NC

4шт.

5

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

6

426-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

BOLT - hex, 3/8 NC x 3/4 inch, grade 8

4шт.

7

515-23508

CLAMP,2", Insul, 3/8" Bolt

CLAMP - P-type, 2 inch ID

1шт.

8

232-4136

LOCK NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

5шт.

9

231-1446

NUT,3/8" - 16, Gr 5

NUT, LOCK, 3/8"-16, GB

10шт.

10

231-1444

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

1шт.

13

BMF31FS

DRY BATTERY

BATTERY - tractor, 12 volt

3шт.

14

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

BOLT, Hex, 3/8"-16 x 1 1/2", G5

1шт.

17

515-23238

CLAMP,15/16", Insul, 3/8" Bolt

CLAMP, , P-type 15/16", Insul, 3/8" Bolt

4шт.

19

20-2459T1

CABLE

CABLE - battery, negative

2шт.

20

20-2094T2

CABLE

CABLE - battery, positive

2шт.

21

60-6790T1

CABLE

CABLE - battery, Serial Range: ground-frame

1шт.

22

20-2457T1

CABLE

CABLE -, Serial Range: battery,-starter

1шт.

23

70-5548T1

ANGLE BAR

BRACKET - angle

3шт.

24

198185A1

TRUSS ROD,5/16" - 18 x 9.7"

BOLT - J-type, battery hold down

6шт.

26

495-11034

WASHER,5/16", SAE

WASHER, 5/16" SAE (flat, 11/32 x 11/16 x 1/16")

6шт.

27

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

9шт.

28

20-2424T1

BOOT

BOOT - cable end

1шт.

29

140855A2

STARTING MOTOR

KIT - starter, 12 volt, engine, parts list Figures 4-028 and 4-030

1шт.

29

140855A3R

REMAN-STARTER,12V

Remanufactured Starter 12 volt, 42MT

1шт.

29

140855A3C

CORE-STARTER,12V

Return Part Number, Starter 12 volt, 42MT

1шт.

30

60-6785T1

CABLE

CABLE - starter, ground, Serial Range: starter-frame

1шт.

31

493-41065

LOCK WASHER,Ext Tooth, 5/8"

WASHER - external tooth lock, 5/8 inch

1шт.

32

495-11053

WASHER,1/2", SAE

WASHER, (17/32" x 1-1/16" x 3/32") 1/2", SAE

1шт.

33

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

34

231-1448

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC

1шт.

35

60-6867T1

COVER

COVER - cab power supply

1шт.

36

426-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 8

BOLT - hex, 1/4 NC x 3/4 inch, grade 8

2шт.

37

495-11028

WASHER,1/4", SAE

WASHER, (flat, 9/32 x 5/8 x 1/16") 1/4", SAE

2шт.

38

50-2033T1

GROMMET

GROMMET - hose protection, 381 mm (15 inch) long, cut from 31-1785 bulk grommet, see below

1шт.

31-1785

GROMMET

GROMMET - edge, bulk, 3048 mm (120 inch) long

1шт.
