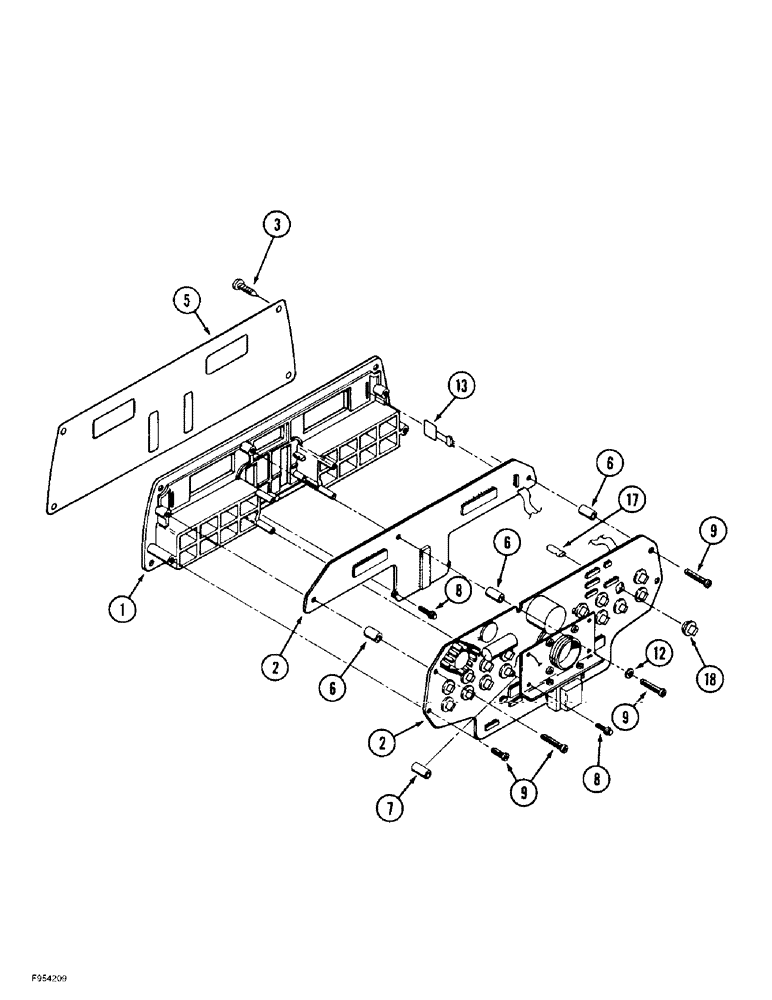

Запчасти Case IH 9370 QUADTRAC (4-020[A]) - INSTRUMENT CLUSTER, P.I.N. JEE0071001 AND AFTER, WITH AXLE LUBE WARNING INDICATOR (04) - ELECTRICAL SYSTEMS

60-7284T92

CLUSTER, INSTR.

CLUSTER ASSEMBLY - instrument, Includes: Ref. 1 - 18

1шт.

Part of axle lube warning kit P/N 35-2013T91.

1шт.

1

NSS

NOT SOLD SEPARAT

COVER - circuit board, plastic

1шт.

2

NSS

NOT SOLD SEPARAT

CIRCUIT BOARD - printed, dash

1шт.

3

280-13410

SELF-TAP SCREW,Slotted Hex Wash Hd, #8 x 5/8"

SCREW - self-tapping, hex washer head, No. 8-18 x 5/8 inch

4шт.

5

60-7285T1

DECAL

- instrument cluster, See Figure 9-078 for decal

1шт.

6

NSS

NOT SOLD SEPARAT

SPACER - circuit board

3шт.

7

NSS

NOT SOLD SEPARAT

SPACER - circuit board

4шт.

8

NSS

NOT SOLD SEPARAT

SCREW - flange head tap, No. 3 x 3/8 inch

6шт.

9

NSS

NOT SOLD SEPARAT

SCREW - pan head tap, No. 8 x 1-1/8 inch

5шт.

12

NSS

NOT SOLD SEPARAT

WASHER - flat, No. 8

1шт.

13

25-9000262

IGNITION SWITCH

SWITCH - instrument cluster

2шт.

17

20-1179T1

LAMP

BULB - lamp, No. 194

16шт.

18

20-1178T1

HOLDER

SOCKET - bulb

16шт.

35-2013T91

SET OF PARTS

KIT - axle lube warning, Includes: Ref. 1 and parts on Figures 4-060 and 8-100 also includes (1) 50-2037T1 tie and (1) 22-824 tie, not shown

1шт.
