Запчасти Case IH 9370 QUADTRAC (4-018) - REAR FRAME HARNESS (04) - ELECTRICAL SYSTEMS

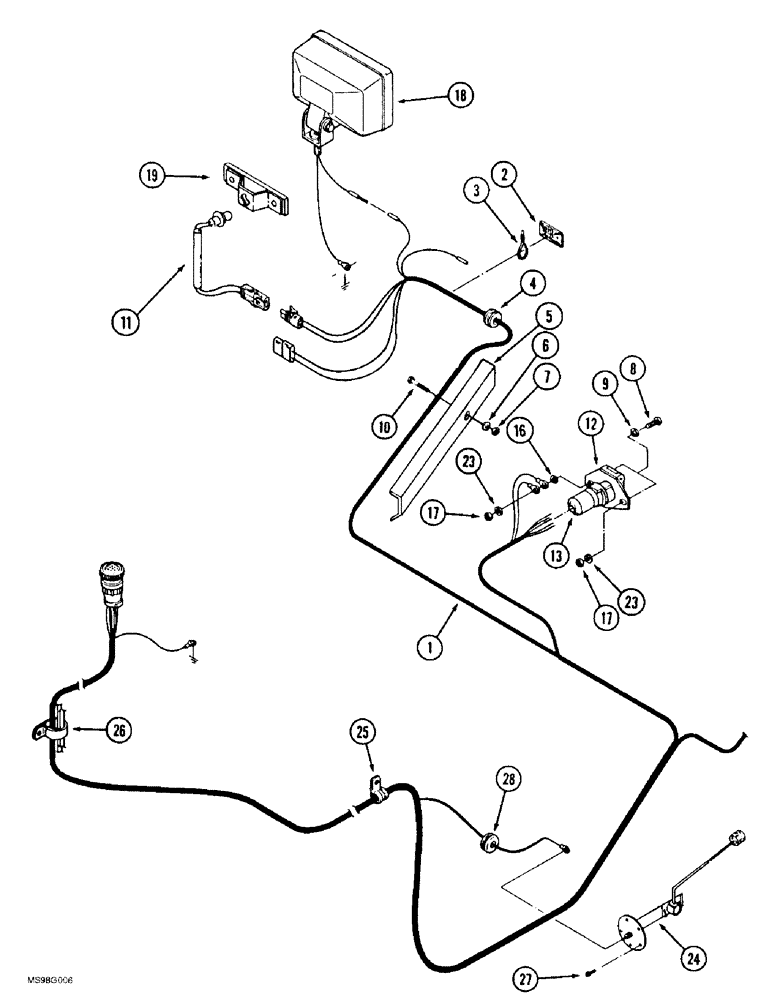

Схема запчастей Case IH 9370 QUADTRAC - (4-018) - REAR FRAME HARNESS (04) - ELECTRICAL SYSTEMS
8
18
23
23
24
17
19
27
1
9
12
6
28
10
17
3
16
7
26
2
11
5
13
25
4

Артикул

Название

Примечание

Количество

1

60-7080T3

HARNESS

- rear frame

1шт.

2

22-823

MOUNT

MOUNT - adhesive back, strap

2шт.

3

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch

1шт.

4

31-2242

GROMMET

- protective

2шт.

5

227934A1

CONDUIT

GUARD - wire

2шт.

6

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

4шт.

7

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

4шт.

8

426-516

BOLT,Hex, 5/16" - 18 x 1", Gr 8

- hex, 5/16 NC x 1 inch, grade 8

2шт.

9

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

10

426-428

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 8

- hex, 1/4 NC x 1-3/4 inch, grade 8

4шт.

11

A186201

WIRE HARNESS

HARNESS - includes socket, tail lamp

2шт.

12

121645C1

MULTIPOLE CONNECTOR,7 Pin

SOCKET - covered, 7 Pin

1шт.

13

481849C1

PROTECTIVE COVER

BOOT - wiring harness

1шт.

16

493-41033

LOCK WASHER,0.33" ID x 0.61" OD x 0.03" Thk

WASHER, LOCK, Ext Tooth, 5/16"

2шт.

17

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

18

ZAA7189850

HEADLIGHT

LAMP ASSEMBLY - field, See Figure 4-39 for mounting hardware

2шт.

19

A186202

LAMP

ASSEMBLY - tail, parts list Figure 4-040

2шт.

23

493-41033

LOCK WASHER,0.33" ID x 0.61" OD x 0.03" Thk

WASHER, LOCK, Ext Tooth, 5/16"

1шт.

24

60-6831T91

SENDER UNIT

SENSOR - fuel

1шт.

25

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

P-type 3/4", Insul, 3/8" Bolt

1шт.

26

515-23381

CLAMP,1 1/2", Insul, 3/8" Bolt

P-type 1 1/2", Insul, 3/8" Bolt

1шт.

27

363-3108

SCREW,Hex Wash Hd, #10-24 x 1/2"

- machine, hex washer head, No. 10 NC x 1/2 inch

5шт.

28

22-766

GROMMET

- protective

1шт.

Выбрано товаров: 23
