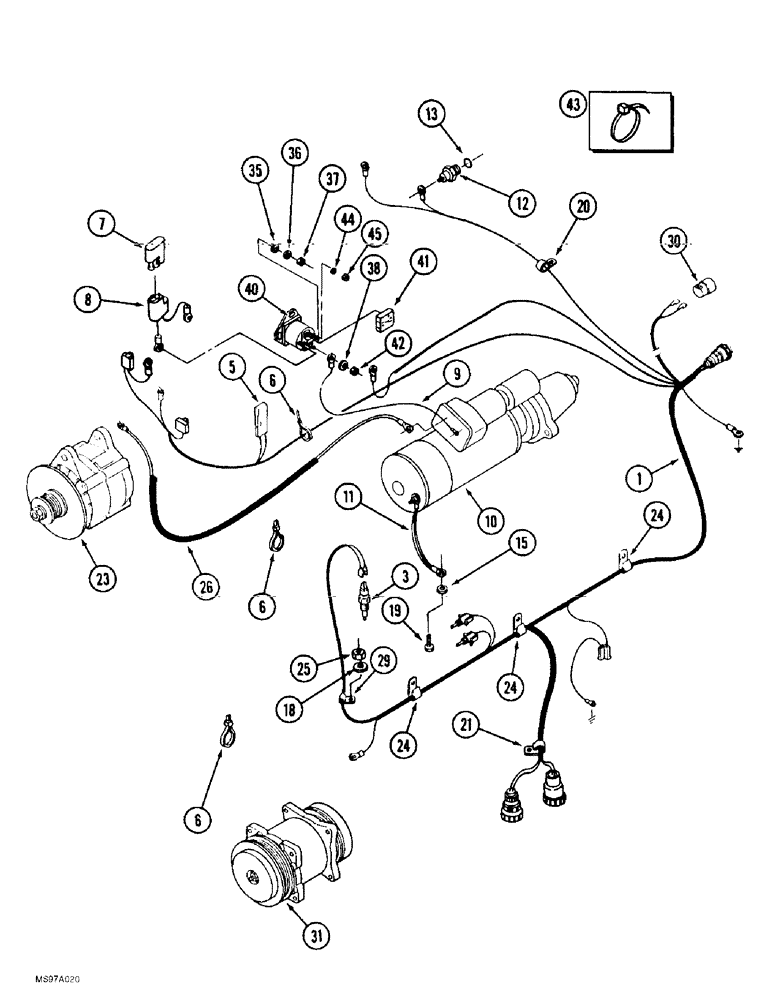

Запчасти Case IH 9370 QUADTRAC (4-010) - ENGINE HARNESS (04) - ELECTRICAL SYSTEMS

1

60-7194T2

HARNESS

HARNESS - engine

1шт.

3

20-1676T2

TEMPERATURE SENDER

SWITCH - temperature, sender

1шт.

5

60-6251T1

DIODE

DIODE - electrical

1шт.

6

22-824

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP STRAP - tie, 7 inch

5шт.

7

22-738

DIODE

DIODE - electrical

1шт.

8

60-7238T1

HARNESS

HARNESS - diode

1шт.

9

60-7237T1

HARNESS

Jumper, starter to switch

1шт.

10

140855A2

STARTING MOTOR

KIT - starter, 12 volt, Delco Remy, parts list Figure 4-028 and 4-030

1шт.

10

140855A3R

REMAN-STARTER,12V

12 volt, 42MT

1шт.

10

140855A3C

CORE-STARTER,12V

Return Part Number

1шт.

11

60-6862T1

CABLE

Ground, engine to starter

1шт.

12

60-6935T1

IGNITION SWITCH

SWITCH - temperature, transmission filter, See Figure 8-25, Includes: Ref. 13

1шт.

13

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

O-RING, 8-1, 90 Duro, .644" ID x .087" Thk

1шт.

15

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

WASHER, (Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

1шт.

18

495-11034

WASHER,5/16", SAE

WASHER, 5/16" SAE (flat, 11/32 x 11/16 x 1/16")

1шт.

19

426-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

BOLT - hex, 3/8 NC x 3/4 inch, grade 8

1шт.

20

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

CLAMP - P-type, 1/4 inch ID

2шт.

21

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

CLAMP, , P-type 3/4", Insul, 3/8" Bolt

1шт.

23

1987560C1

ALTERNATOR

ALTERNATOR ASSEMBLY - engine, 125 amp, parts list Figure 4-036

1шт.

23

1987560C1GV

ALTERNATOR

Value, 12V, 125A

1шт.

23

1987560C1R

REMAN-ALTERNATOR

12 volt 125 ampere

1шт.

23

1987560C1C

CORE-ALTERNATOR

Return Part Number

1шт.

24

358986R1

CABLE CLIP

CLAMP - P-type

3шт.

25

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

1шт.

26

60-6860T1

CABLE

CABLE - alternator

1шт.

29

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

CLAMP, 3/8", Insul, 3/8" Bolt

1шт.

30

1983233C1

RESTRICTION SWITCH

SWITCH - restriction, air cleaner

1шт.

31

1999755C2

COMPRESSOR

COMPRESSOR ASSEMBLY - air conditioning, parts list Figure 9-084

1шт.

31

86993462R

REMAN-COMPRESSOR

QUADTRAC® (1/97-12/99); Reman For New P/N 1999755C2

1шт.

31

86993462C

CORE-COMPRESSOR

Return Part Number

1шт.

31

1999755C3R

REMAN-A/C COMPRESSOR

Inc.- 8 Mounting Holes, 2 Groove Pulley, For Use w/HFC134A Refrigerant

1шт.

31

1999755C3C

CORE-COMPRESSOR

Return Part Number

1шт.

31

48017123R

REMAN-A/C COMP KIT

Reman Kit -- A/C Compressor, Receiver-Dryer, Valve

1шт.

31

48017123C

REMAN-A/C COMP KIT

Return Part Number

1шт.

35

495-11028

WASHER,1/4", SAE

WASHER, (flat, 9/32 x 5/8 x 1/16") 1/4", SAE

2шт.

36

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

37

425-104

NUT,1/4"-20, Cl 5

NUT - hex, 1/4 inch NC

2шт.

178149A1

SOLENOID SWITCH

KIT - solenoid switch, with barrier and cover, Includes: Ref. 38 - 45

1шт.

38

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

40

NSS

NOT SOLD SEPARAT

SWITCH - solenoid

1шт.

41

178148A1

COVER

COVER - solenoid switch

1шт.

42

425-105

NUT,5/16"-18, G5

NUT - hex, 5/16 inch NC

2шт.

43

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP STRAP - tie, 15 inch

2шт.

44

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

45

225-14210

NUT,#10-32

NUT, #10-32

1шт.
