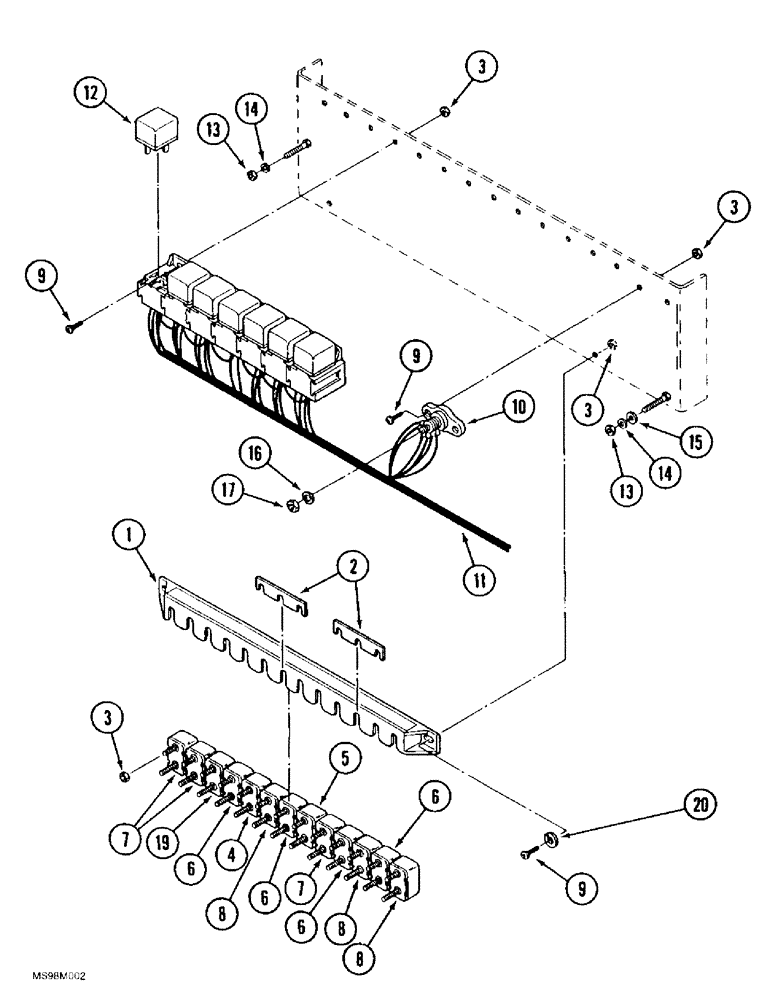

Запчасти Case IH 9370 QUADTRAC (4-006) - OVERHEAD CIRCUIT BREAKERS AND RELAYS (04) - ELECTRICAL SYSTEMS

1

22-674

BRACKET

- mounting, circuit breaker

1шт.

2

22-676

BREAKER

CONNECTOR - circuit breaker

2шт.

3

193-1000

NUT,Keps, w/LW,#10-32

- hex, with external tooth lock washer, No. 10 NF

1шт.

4

22-809

BREAKER

- circuit, 5 ampere

1шт.

5

22-670

BREAKER

- circuit, 10 ampere

1шт.

6

22-671

BREAKER

- circuit, 15 ampere

4шт.

7

245765C1

CIRCUIT-BREAKER,30A

BREAKER - circuit, 30 ampere

3шт.

8

22-672

BREAKER

- circuit, 20 ampere

3шт.

9

459-5108

SCREW,Slotted Pan Hd, #10-32 x 1/2", G5

- machine, pan head slotted, No. 10 NF x 1/2 inch

1шт.

10

20-1451T1

BLOCK

- junction

1шт.

11

60-7192T93

HARNESS - main cab

1шт.

12

1983394C2

RELAY

- mini, 12 volt

8шт.

13

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

3шт.

14

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

15

495-21031

WASHER,1/4"

- flat, 5/16 x 3/4 x 1/16 inch

2шт.

16

19-5577

LOCK WASHER

- lock, 3/8 inch

1шт.

17

115772

NUT

- hex, special, 3/8 inch NC

1шт.

19

A45686

CIRCUIT-BREAKER

BREAKER - circuit, 40 ampere

1шт.

20

495-31022

WASHER,#10

2шт.
