Запчасти Case IH 9370 QUADTRAC (3-002) - FUEL LINE SYSTEM (03) - FUEL SYSTEM

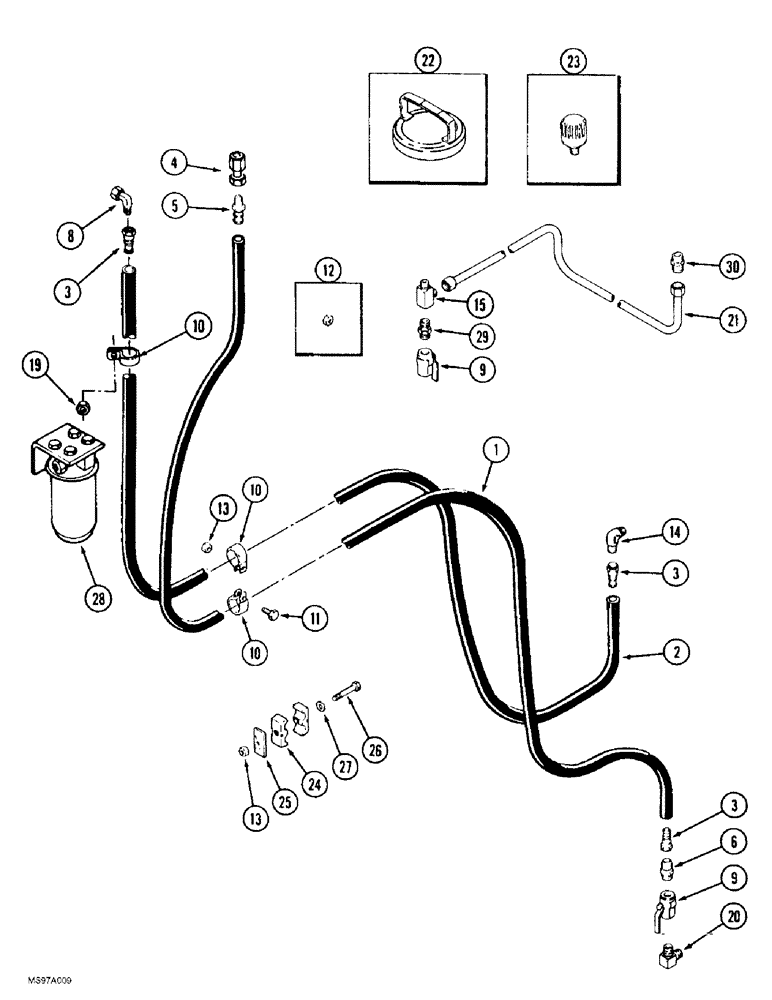

Схема запчастей Case IH 9370 QUADTRAC - (3-002) - FUEL LINE SYSTEM (03) - FUEL SYSTEM
12
9
9
20
13
3
23
28
3
27
5
13
15
10
10
26
10
8
30
14
1
22
24
3
4
11
6
2
21
25
19
29

Артикул

Название

Примечание

Количество

1

31-2967

HOSE

15.9 mm ID x 4368.8 mm; Order 50-3418X1, and Cut to Rquired Length; See Below

1шт.

2

31-2951

HOSE

15.9 mm ID x 4648.2 mm; Order 50-3418X1, and Cut to Required Length; See Below

1шт.

3

31-2976

FITTING

ADAPTER - straight, 7/8-14 female swivel x 31/64 inch barb

3шт.

4

218-1561

HYD CONNECTOR,37 Degree, Sw, 3/4"-16 x 1/2"-14 NPTF

ADAPTER - straight, 3/4-16 swivel x 1/2 inch female PT

1шт.

5

31-2966

FITTING

ADAPTER - straight, special

1шт.

6

218-445

HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

ADAPTER - straight, 7/8-14 flare x 1/2 inch PT

2шт.

8

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

1шт.

9

31-1267

SHUT-OFF VALVE

VALVE - shutoff

2шт.

10

515-23238

CLAMP,15/16", Insul, 3/8" Bolt

P-type 15/16", Insul, 3/8" Bolt

5шт.

11

426-516

BOLT,Hex, 5/16" - 18 x 1", Gr 8

- hex, 5/16 NC x 1 inch, grade 8

1шт.

12

425-106

NUT,3/8"-16, Cl 5

1шт.

13

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

3шт.

14

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree, 7/8-14 flare x 1/2 inch PT

1шт.

15

31-1000

TEE

- 1/2 female PT x 1/2 male PT x 7/8 NF inch flare

1шт.

19

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

2шт.

20

217-1226

ELBOW,90 Degree, 1/2"-14 Male

- 90 degree, 1/2-14 inch NPT

1шт.

21

258497A1

FUEL TUBE,0.625" OD, 889, 132 mm Length

TUBE - fuel, tank

1шт.

22

A162191

CAP

- fuel

1шт.

23

90-7732T1

BREATHER

- fuel tank

1шт.

24

50-2534T1

CLAMP

- split, one-half, replaces 50-2551T1 clamp

6шт.

25

50-2533T1

PLATE

- clamp support

3шт.

26

426-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 8

- hex, 5/16 NC x 2-1/2 inch, grade 8

1шт.

27

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32") 5/16"

2шт.

28

335341A1

SEPARATOR

FILTER - fuel, replaces 90-3941T1 filter

1шт.

29

217-196

FITTING,1/2" - 14 Male NPTF x 1/2" - 14 Male NPTF

NIPPLE - straight, 1/2 PT x 1-13/16 inch

1шт.

30

218-445

HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

ADAPTER - straight, 7/8-14 flare x 1/2 inch PT

1шт.

50-3418X1

HOSE

- bulk, 16 (5/8) ID x 9144 mm (360 inch) long

1шт.

Выбрано товаров: 27
