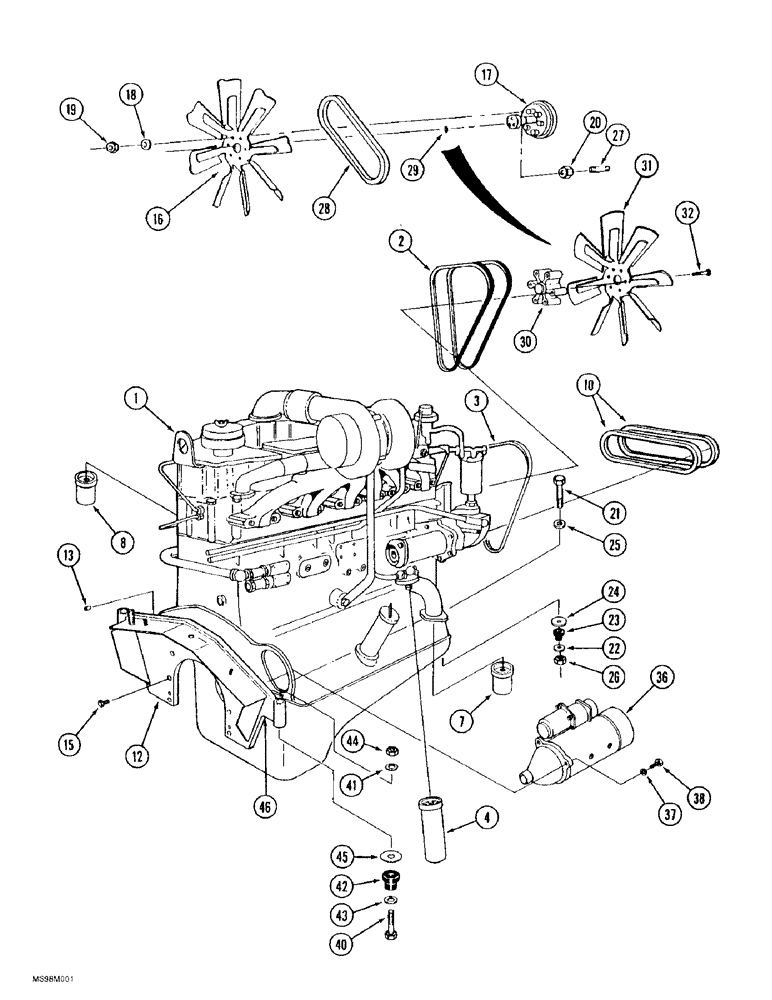

Запчасти Case IH 9370 QUADTRAC (2-020) - ENGINE MOUNTS AND ATTACHING PARTS (02) - ENGINE

1

NSS

NOT SOLD SEPARAT

ENGINE ASSEMBLY - NTA-855-A BC111, 360 horsepower, see your Cummins engine dealer for service parts, Includes: Ref. 2 - 9

1шт.

1

NSS

NOT SOLD SEPARAT

ENGINE ASSEMBLY - NTA-855-A BC111, 400 horsepower, see your Cummins engine dealer for service parts, Includes: Ref. 2 - 9

1шт.

2

90-8264T1

SET OF BELTS,0.88" W x 44.00" L

V-Belt, Set of 2

1шт.

3

90-2383T1

BELT,43.60" L, 6 Ribs

V-type, Water pump

1шт.

4

90-7101T1

FILTER, ENGINE OIL

FILTER, OIL FILTER - engine oil

1шт.

7

A77544

FILTER

FILTER - water conditioning, precharge

1шт.

8

335341A1

SEPARATOR

FILTER - fuel, replaces 90-3941T1 filter

1шт.

The decal that reflects the fuel filter change is p/n 60-7282T1

1шт.

9

A77424

FILLER CAP

CAP - oil fill tube, not shown

1шт.

10

90-1375T1

SET OF BELTS,0.53" W x 45.92" L

V-Belt, Alternator, Set of 2

1шт.

Prior to JEE0074062

1шт.

10

90-8383T1

V-BELT,3.60 mm W x 1054.00 mm L, 5 Ribs

Alternator - single belt

1шт.

The decal that reflects the fuel filter change is p/n 60-7282T1

1шт.

12

229656A3

STANCHION

MOUNT - engine

1шт.

13

NSS

NOT SOLD SEPARAT

PIN - dowel, 9/16 x 1-1/8 inch, serviced through your Cummins dealer

2шт.

15

428-1024

BOLT,Hex, 5/8" - 18 x 1-1/2", Gr 8

BOLT - hex, 5/8 NF x 1-1/2 inch, grade 8

9шт.

16

236987A1

FAN

FAN - engine, P.I.N. JEE0074062 and after

1шт.

17

90-8378T1

CLUTCH

CLUTCH - fan, P.I.N. JEE0074062 and after

1шт.

18

495-21034

WASHER

SPARE PART WASHER - flat, 3/8 inch, P.I.N. JEE0074062 and after

6шт.

19

825-1408

NUT,M8, Cl 8

Nut, , P.I.N. JEE0074062 and after M8, Cl 8

6шт.

20

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex, P.I.N. JEE0074062 and after 1/2"-13, G5

6шт.

21

426-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 8

BOLT - hex, 3/4 NC x 7-1/2 inch, grade 8

2шт.

22

495-21081

WASHER,3/4"

WASHER - flat, 13/16 x 2 x 9/64 inch

2шт.

23

24-231

RUBBER MOUNTING

INSULATOR - mount, rubber, front

2шт.

Rear engine mount applications; subs to P/N 382235A1. Reference NTRSB01700.

1шт.

24

51-128

WASHER

WASHER - flat, 5/8 x 3-1/2 x 3/16 inch

2шт.

25

496-11081

WASHER,13/16" x 1 1/2" x .134", HDN

WASHER, , Flat 13/16" x 1 1/2" x .134", HDN

2шт.

26

231-14412

LOCK NUT,3/4"-10, GB

NUT - hex, self-locking, 3/4 inch NC

2шт.

27

90-8396T1

STUD

STUD - fan, P.I.N. JEE0074062 and after

6шт.

28

90-8400T1

V-BELT,3.56 mm W x 1438.00 mm L, 12 Ribs

Fan, P.I.N. JEE0074062 and after

1шт.

Fan Drive Belt on 9370 qt is P/N 393271A1 th e9380QT & 90 use 90-8400 t1. Per ECN # F001236.

1шт.

29

238-5041

O-RING,0.07" Thk x 2.989" ID, -41, Cl 5, 75 Duro

O-RING, -041, 70 Duro, 2.989" ID x .070" Thk, Seal clutch, P.I.N. JEE0074062 and after

1шт.

30

90-3569T1

SPACER

SPACER - fan, prior to P.I.N. JEE0074062

1шт.

31

90-8164T1

FAN

FAN - engine, prior to P.I.N. JEE0074062

1шт.

32

426-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 8

BOLT, , Prior to P.I.N. JEE0074062 Hex, 1/2"-13 x 3 1/2", G8

6шт.

36

140855A2

STARTING MOTOR

KIT - starter, 12 volt, parts list pages 4-29 and 4-31

1шт.

36

140855A3R

REMAN-STARTER,12V

Remanufactured Starter 12 volt, 42MT

1шт.

36

140855A3C

CORE-STARTER,12V

Return Part Number, Starter 12 volt, 42MT

1шт.

37

19-912

WASHER

WASHER - flat, 21/32 ID x 1-3/16 OD x 3/16 inch thick

3шт.

38

80-11032

12 PT SCREW,Flg, 5/8"-11 x 2", Gr 8

BOLT - 12 point flange, 5/8 NC x 2 inch, grade 8

3шт.

40

426-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 8

BOLT - hex, 5/8 NC x 4 inch, grade 8

2шт.

41

496-81022

WASHER

WASHER - flat, 21/32 x 1-1/4 x 1/4 inch, hardened

2шт.

42

47-4172

SHOCK ABSORBER

INSULATOR - engine mount, rubber, rear

2шт.

43

19-408

WASHER

WASHER - flat, 5/8 x 2-1/2 x 3/16 inch

2шт.

44

232-41110

NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

2шт.

45

19-6150

WASHER,19.84mm ID x 95.25mm OD x 4.78mm Thk

WASHER - flat, special

2шт.

46

229656A2

STANCHION

MOUNT - engine

1шт.
