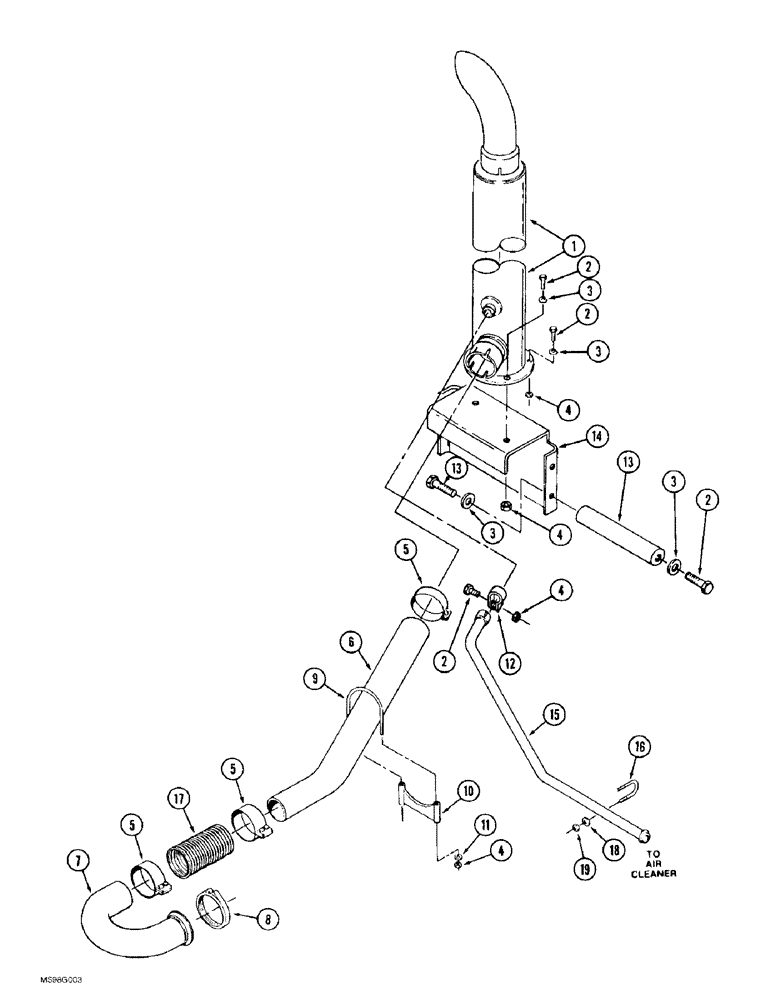

Запчасти Case IH 9370 QUADTRAC (2-016) - EXHAUST SYSTEM (02) - ENGINE

1

90-8295T1

MUFFLER,Aspirated

- exhaust, engine

1шт.

2

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

8шт.

Part of muffler mount brace kit P/N 311089A1.

1шт.

3

496-41041

WASHER,13/32" x 1 1/8" x .134"

- flat, 13/32 x 1-1/8 x 9/64 inch, hardened

11шт.

Part of muffler mount brace kit P/N 311089A1.

1шт.

4

231-1446

NUT,3/8" - 16, Gr 5

NUT, LOCK, 3/8"-16, GB

8шт.

Part of muffler mount brace kit P/N 311089A1.

1шт.

5

90-8320T1

MOUNTING CLIP

CLAMP - exhaust

3шт.

6

230081A1

EXHAUST SYSTEM PIPE,126.87 mm OD

TUBE - exhaust

1шт.

7

90-5776T1

TUBE,5" OD

- elbow, exhaust

1шт.

8

31-1316

MOUNTING CLIP

CLAMP - tube, exhaust

1шт.

9

32-322T1

U-BOLT,3/8" - 16 x 6.62"

- 3/8 inch NC

1шт.

10

32-323T1

STIRRUP

SADDLE - clamp, U-bolt

1шт.

11

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

12

90-7815T1

CLAMP

- adjustable

1шт.

13

311091A1

THREADED ROD

ROD - threaded

1шт.

REF No. 13 is listed as a threaded rod and a bolt. The bolt should be 426-620 per notes in kit 311089A1.

1шт.

Part of muffler mount brace kit P/N 311089A1.

1шт.

14

311090A1

PLATE

- baffle

1шт.

Part of muffler mount brace kit P/N 311089A1.

1шт.

15

230091A1

TUBE

- aspirator

1шт.

16

19-1049

U-BOLT,5/16" - 18 x 50.80mm W x 76.20mm L

1шт.

17

45-177

TUBE

- flex, exhaust

1шт.

18

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

19

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

2шт.

20

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch), Not shown 3/8"

5шт.

Part of muffler mount brace kit P/N 311089A1.

1шт.

311089A1

KIT

- muffler mount brace, includes: Ref. 2 - 4, 13, 14 and 20

1шт.
