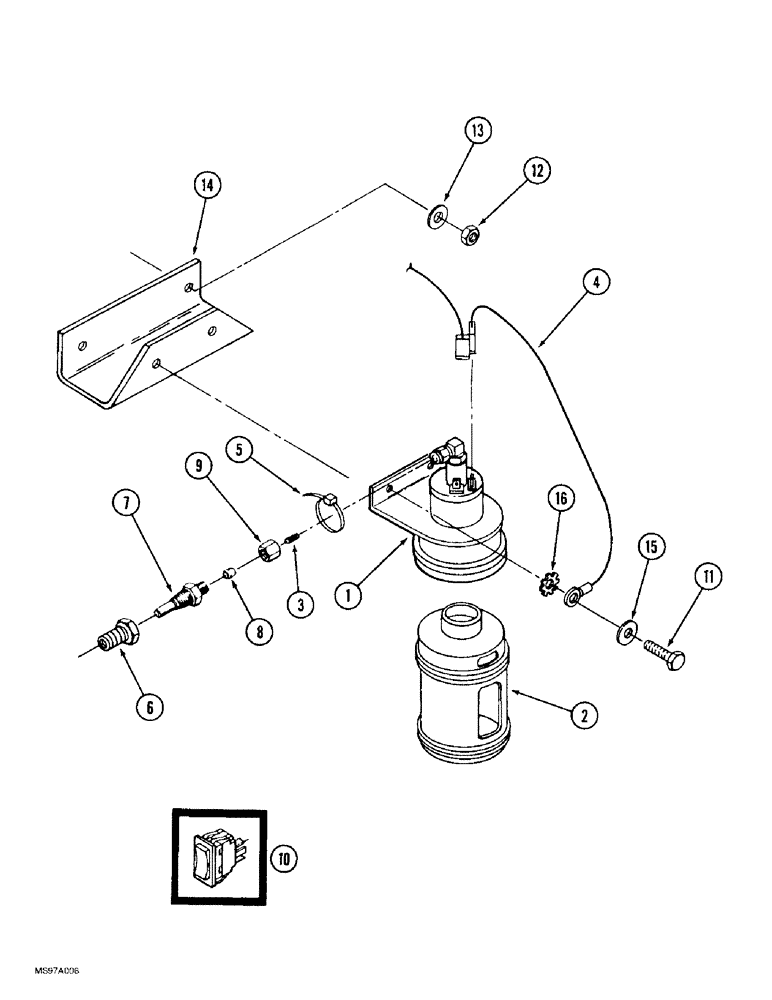

Запчасти Case IH 9370 QUADTRAC (2-014) - ETHER STARTING SYSTEM (02) - ENGINE

185552A2

SOLENOID

ASSEMBLY - ether injection, Includes: Ref. 1 & 2

1шт.

1

NSS

NOT SOLD SEPARAT

SOLENOID - ether injection

1шт.

2

190752A1

HOUSING

- ether injection solenoid

1шт.

3

31-1347

TUBE,0.125" OD, 24" Length

- 610 mm (24 inch) long, cut from 29-53T2 bulk tube, see below, ether solenoid to injector

1шт.

4

60-7166T2

HARNESS

- engine

1шт.

5

19-135

CABLE TIE

STRAP - tie, nylon

1шт.

6

221-84

REDUCER,Hex, 1/4" x 1/8" NPT

- pipe, 1/4 male x 1/8 inch female

1шт.

7

90-7034T1

PACKAGE

INJECTOR ASSEMBLY - nozzle, Includes: Ref. 8 & 9

1шт.

8

222-650

SLEEVE,1/8" Tube, Comp

- tapered, 1/8 inch tube OD

1шт.

9

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

1/8" tube OD 5/16"-24, 45º Fl, Comp

1шт.

10

1964751C1

SWITCH

- rocker, ether start

1шт.

11

426-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

- hex, 5/16 NC x 3/4 inch, grade 8

2шт.

12

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

13

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

14

90-8367T1

SUPPORT

BRACKET - mounting, ether

1шт.

15

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

16

493-41033

LOCK WASHER,0.33" ID x 0.61" OD x 0.03" Thk

WASHER, LOCK, Ext Tooth, 5/16"

1шт.

29-53T2

HOSE

TUBE - bulk, 3 (1/8) OD x 3048 mm (120 inch) long

1шт.
