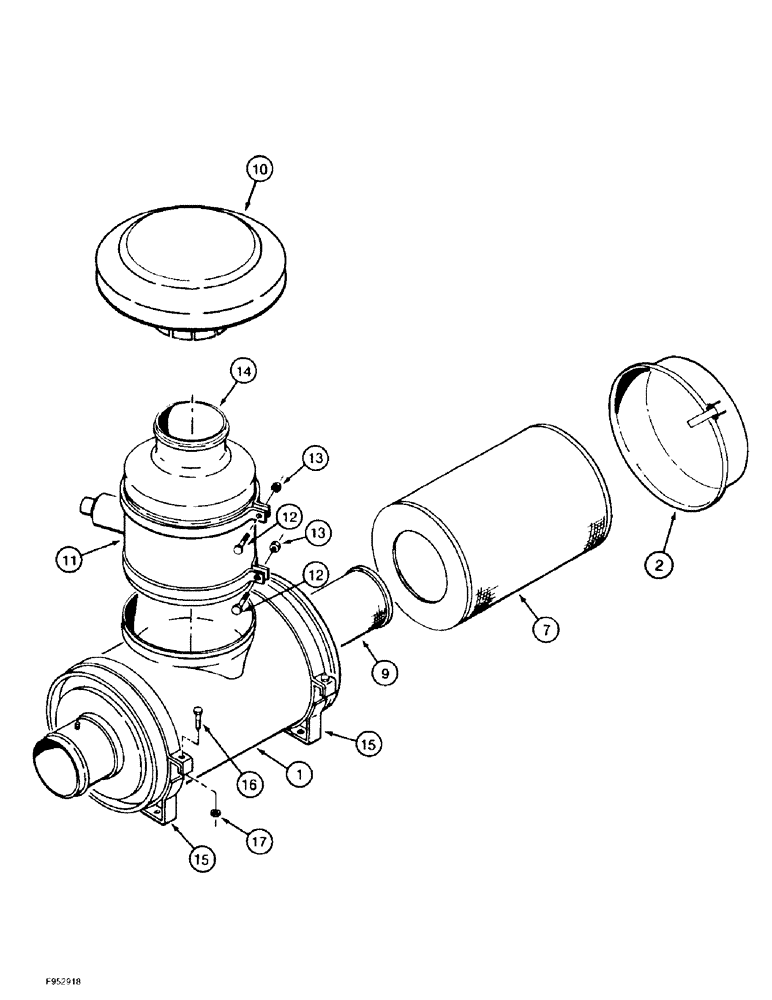

Запчасти Case IH 9370 QUADTRAC (2-012) - AIR CLEANER ASSEMBLY (02) - ENGINE

90-8299T91

AIR CLEANER

CLEANER ASSEMBLY - air, engine, without precleaner and mounting parts, Includes: Ref. 1 - 9

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - air cleaner

1шт.

2

90-8302T1

COVER

- end

1шт.

7

90-8300T1

AIR FILTER

ELEMENT - primary

1шт.

9

90-8301T1

AIR FILTER

ELEMENT - secondary

1шт.

10

9-120

CAP ASSY.

CAP - air inlet

1шт.

11

90-4207T1

PRECLEANER

ASSEMBLY - engine, Includes: Ref. 12 - 17

1шт.

12

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

13

425-106

NUT,3/8"-16, Cl 5

2шт.

14

90-4208T1

ADAPTER

- intake reducer

1шт.

15

90-3871T1

CLIP

CLAMP - band, air cleaner mounting

2шт.

16

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

- hex, 5/16 NC x 1-3/4 inch

1шт.

17

27254R1

NUT

- hex, 5/16 inch NC, grade 8

1шт.
