Запчасти Case IH 9370 QUADTRAC (9-090) - DECALS (09) - CHASSIS/ATTACHMENTS

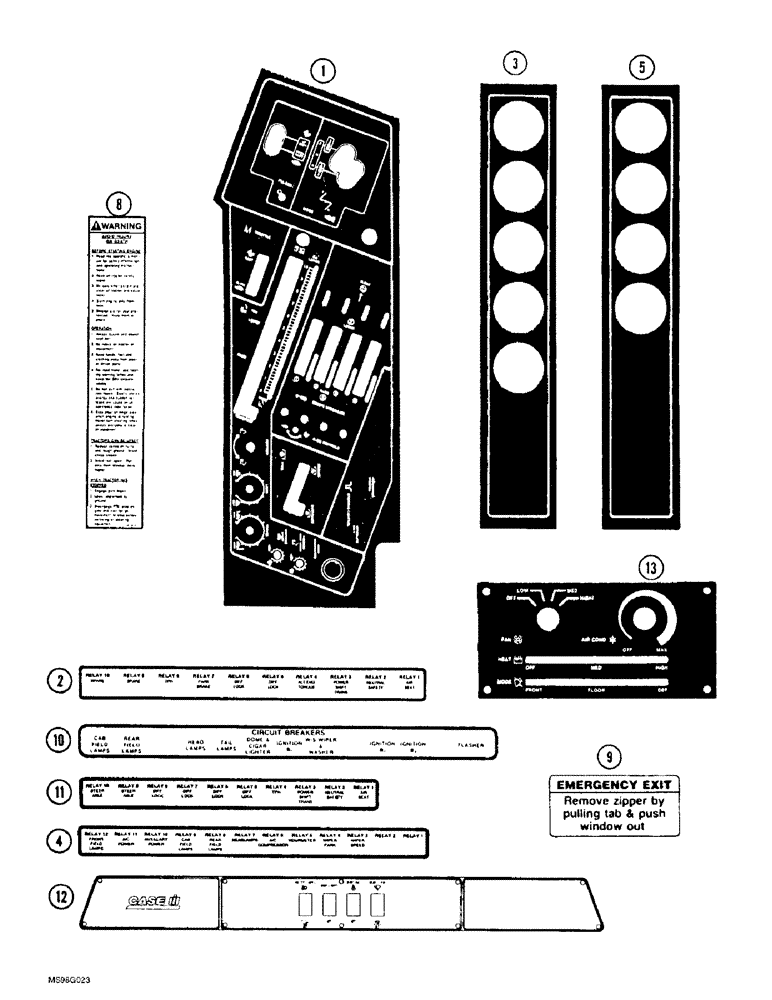

Схема запчастей Case IH 9370 QUADTRAC - (9-090) - DECALS (09) - CHASSIS/ATTACHMENTS
4
8
13
9
2
1
3
5
10
12
11

Артикул

Название

Примечание

Количество

1

60-6416T1

DECAL

- control console

1шт.

Ref #1 -PART #60-7219T1 IS THE DECAL FOR THE QUAD THAT HAS THE POWERSHIFT TRANSMISSION WITH THE PARK BRAKE,ON/OFF SWITCH CUT OUT AND THE CONSTANT SPEED SWITCH CUT OUT. CSD 3/18

1шт.

2

60-7221T1

DECAL

- relay

1шт.

3

60-5939T2

DECAL

- gauge panel, prior to P.I.N. JEE0071001

1шт.

4

60-7064T1

DECAL

- overhead relay

1шт.

5

60-5939T3

DECAL

- gauge panel, P.I.N. JEE0071001 and after

1шт.

8

60-6468T2

DECAL

- Warning, avoid injury or death

1шт.

9

2-6879T1

DECAL

- emergency exit

1шт.

10

60-6297T1

DECAL

- circuit breaker

1шт.

11

60-7158T1

DECAL

- relay

1шт.

12

60-7153T1

DECAL

- overhead controls

1шт.

13

60-6716T1

DECAL

- climate control panel

1шт.

Выбрано товаров: 12
