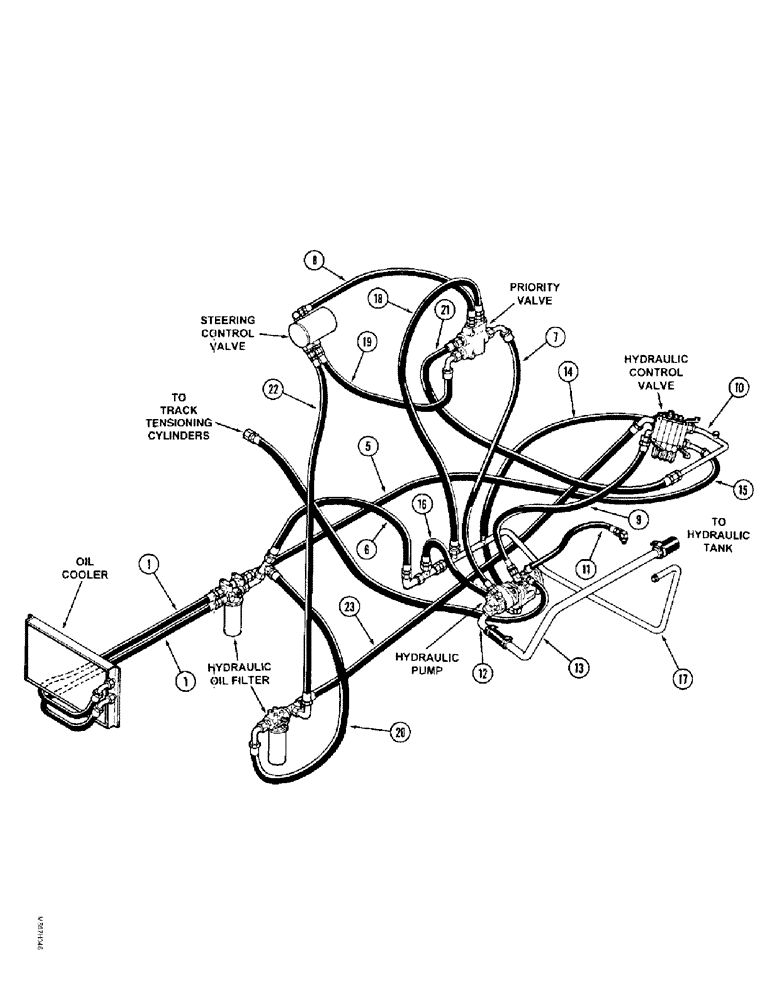

Запчасти Case IH 9370 QUADTRAC (1-30) - PICTORIAL INDEX, HIGH OUTPUT HYDRAULICS (00) - PICTORIAL INDEX

1

Oil Cooler To Filter Hose, 8-123

1шт.

5

Hydraulic Return Hose, 8-119

1шт.

6

Charge Pressure Hose, 8-119

1шт.

7

Gear Pump Outlet Hose, 8-121

1шт.

8

Steering Sensing Hose, 8-121

1шт.

9

Hydraulic Control Valve Supply Hose, 8-119

1шт.

10

Hydraulic Control Valve Supply Tube, 8-121

1шт.

11

Hydraulic Return Hose, 8-119

1шт.

12

Gear Pump Inlet Elbow Tube, 8-121

1шт.

13

Gear Pump Inlet Tube, 8-121

1шт.

14

Hydraulic Pump Pressure Sensing Hose, 8-119

1шт.

15

Hydraulic Control Valve Drain Hose, 8-119

1шт.

16

Hydraulic Pump Supply Hose, 8-119

1шт.

17

Hydraulic Return Tube, 8-119

1шт.

18

Priority Valve Hose to Return Tube, 8-121

1шт.

19

Steering Control Supply, 8-121

1шт.

20

Filter Hose to Charge Hose, 8-119

1шт.

21

Hydraulic Control Valve Supply Hose, 8-121

1шт.

22

Return Hose from Steering Control, 8-121

1шт.

23

Return Hose from Remote Valve, 8-121

1шт.
