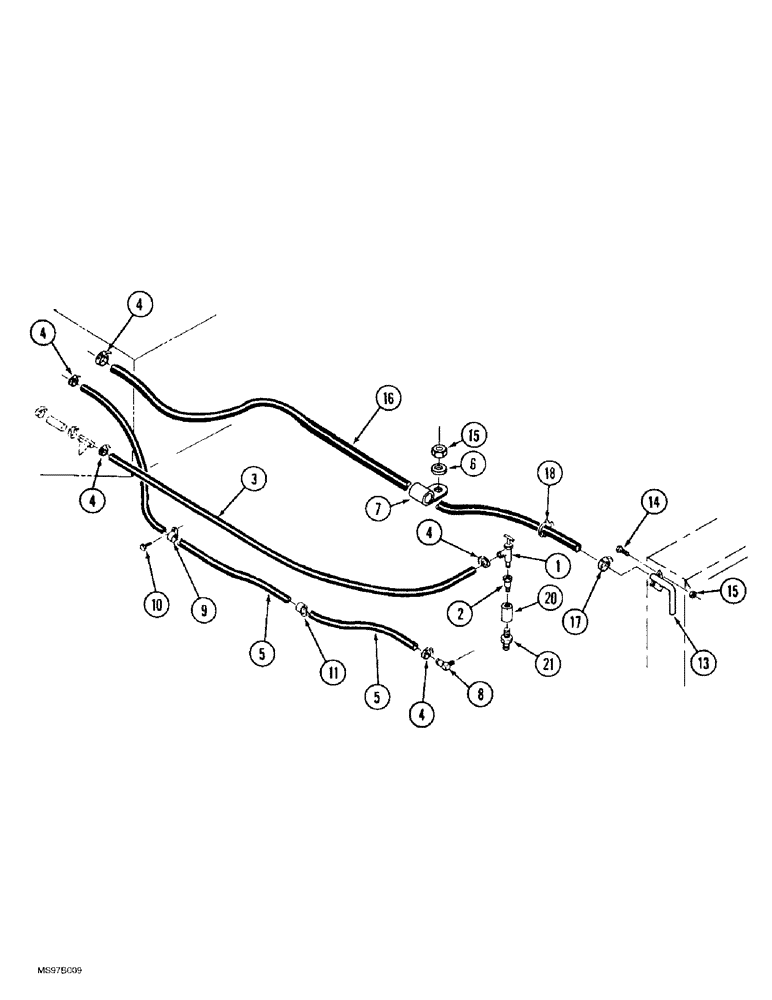

Запчасти Case IH 9370 QUADTRAC (9-078) - CAB HEATER PLUMBING (09) - CHASSIS/ATTACHMENTS

1

301803R1

SHUT-OFF VALVE

VALVE - shutoff, water

1шт.

2

221-89

REDUCER,Hex, 1/2" x 3/8" NPT

- pipe, 1/2 male x 3/8 inch female

1шт.

3

32-333

HOSE

- 787 mm (31 inch) long, cut from 97252CX bulk hose, see below, heater core return

1шт.

4

214-1408

HOSE CLAMP,11.2mm - 19.8mm

CLAMP, HOSE, , Adj. #08, 0.50/0.91 Type F Worm

4шт.

5

31-2937

HOSE,0.63" ID x 96.00"

Heater Core Return; Order 86997299, and Cut to Required Length; See Below 0.63" ID x 96.00"

1шт.

6

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

1шт.

7

515-23381

CLAMP,1 1/2", Insul, 3/8" Bolt

P-type 1 1/2", Insul, 3/8" Bolt

1шт.

8

217-134

ELBOW,90 Degree Elbow, 5/8" Hose Barb x 1/2" Male NPTF

- 90 degree, 5/8 stem end x 1/2 inch PT

1шт.

9

515-25238

CLAMP,15/16", Insul, 1/2" Bolt

P-type 15/16", Insul, 1/2" Bolt

1шт.

10

426-816

BOLT,Hex, 1/2" - 13 x 1", Gr 8

- hex, 1/2 NC x 1 inch, grade 8

2шт.

11

1-2191

MOUNTING CLIP

CLAMP - P-type

1шт.

13

90-6830T1

TUBE,3.69 mm L

- heater

1шт.

14

426-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

- hex, 5/16 NC x 3/4 inch, grade 8

3шт.

15

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

4шт.

16

31-2983

HOSE,1.00" ID x 81.00"

; Order 31-1502, and Cut to Required Length; See Below 1.00" ID x 81.00"

1шт.

17

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP, HOSE, , Adj. #20, 0.81/1.75 Type F Worm

2шт.

18

19-135

CABLE TIE

STRAP - tie, nylon

1шт.

20

221-338

COUPLING,Pipe, 1/2" NPT

- pipe, 1/2 inch

1шт.

21

217-1072

HYD CONNECTOR,1/2" - 14 NPTF

NIPPLE - hex, 1/2 PT x 1-7/8 inch

1шт.

97252CX

HOSE

- bulk, 16 (5/8) x 25 (1) x 15240 mm (600 inch) long

1шт.

32-50

HEATER HOSE,0.62" ID x 120.00", SAE J20R3 Class D2

HOSE 0.62" ID x 120.00", SAE J20R3 Class D2

1шт.
