(9-070) - CAB AIR CONDITIONER AND HEATER MODULE

Запчасти Case IH 9370 QUADTRAC (9-070) - CAB AIR CONDITIONER AND HEATER MODULE (09) - CHASSIS/ATTACHMENTS

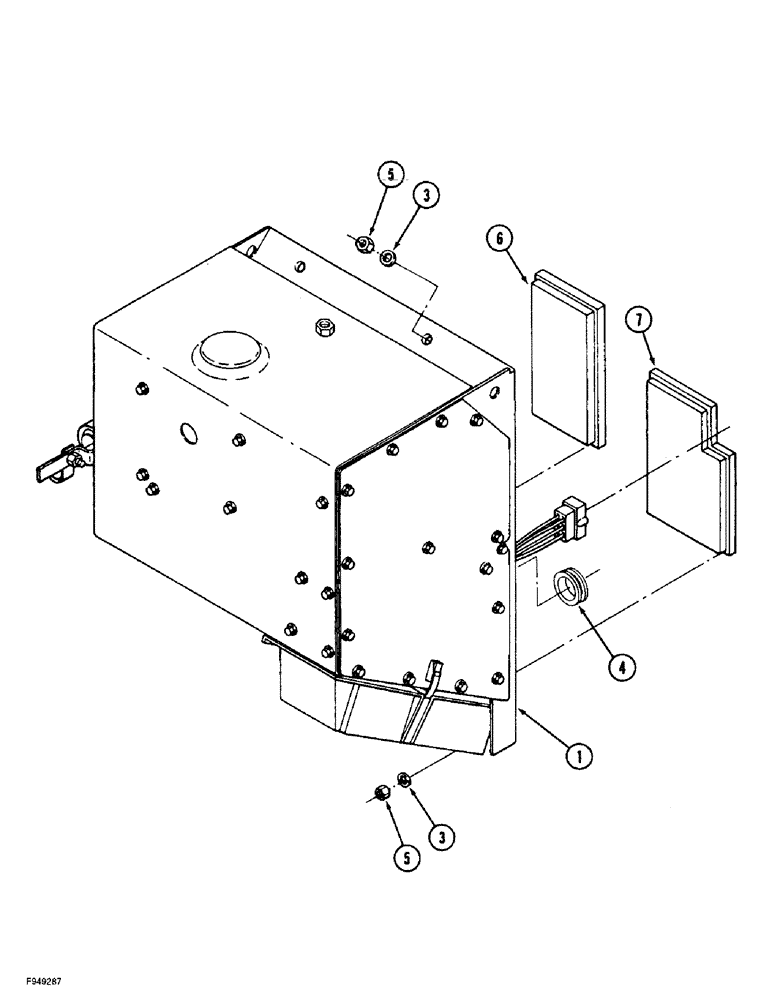

Схема запчастей Case IH 9370 QUADTRAC - (9-070) - CAB AIR CONDITIONER AND HEATER MODULE (09) - CHASSIS/ATTACHMENTS
6
7
4
5
3
3
1
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

60-6973T91

AIR CONDITIONER

MODULE ASSEMBLY - air conditioning and heating, parts list Figures 9-072 - 9-074

1шт.

3

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

4шт.

4

1-1051

GROMMET

- harness protection

1шт.

5

425-106

NUT,3/8"-16, Cl 5

4шт.

6

60-3846T2

FILTER

- air recirculation, cab

1шт.

7

60-6706T1

FILTER

- air recirculation, cab

1шт.
