Запчасти Case IH 9370 QUADTRAC (9-044) - CAB DOOR AND LATCH (09) - CHASSIS/ATTACHMENTS

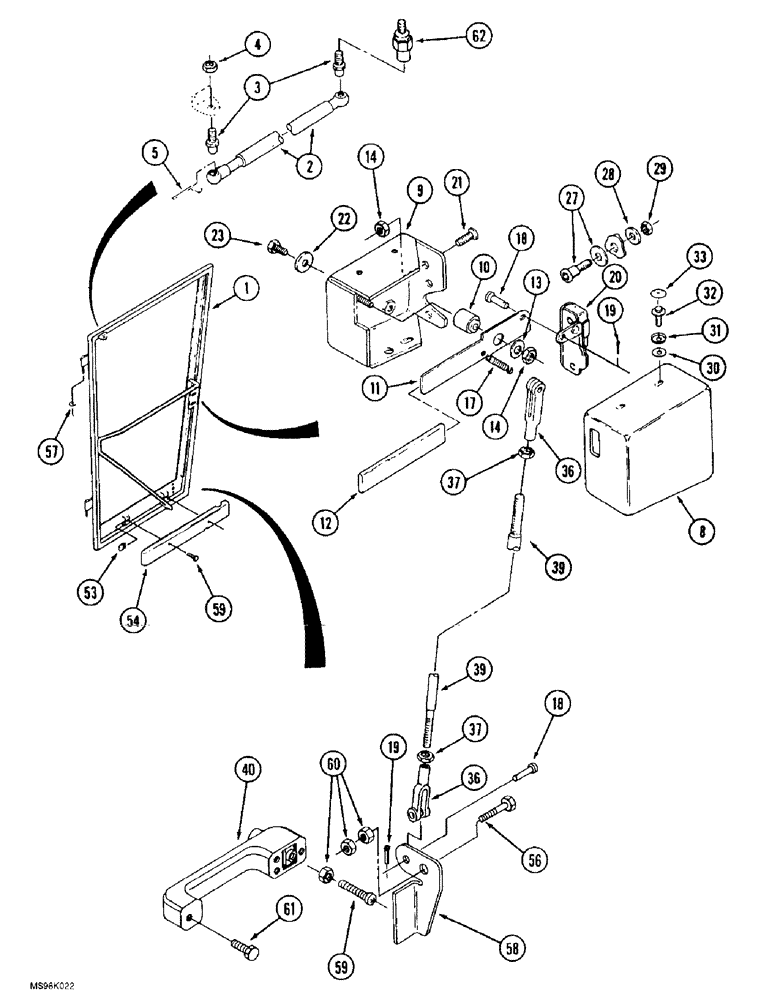

Схема запчастей Case IH 9370 QUADTRAC - (9-044) - CAB DOOR AND LATCH (09) - CHASSIS/ATTACHMENTS
62
1
19
36
19
14
36
58
37
2
40
33
20
60
17
21
31
18
9
12
37
32
61
57
14
59
53
5
8
39
54
30
28
13
18
59
3
22
27
10
4
29
23
11
39
56

Артикул

Название

Примечание

Количество

1

60-7043T1

DOOR ASSY.

DOOR - cab, service Includes: Ref. 18, 19, 36, 37, 39, 40, 53, 54, 56, 58, 59, 60 and 61.

1шт.

2

1280263C1

CYLINDER ASSY.

CYLINDER - door

1шт.

3

3234063R1

BALL STUD,M10 x 1.5

STUD - ball

2шт.

4

832-10410

NUT,M10 x 1.5, Cl 8

NUT, LOCK, M10 x 1.5, Cl 8

1шт.

5

3233348R1

CLIP

- retaining

2шт.

8

60-6269T1

COVER

- latch housing

1шт.

9

60-6265T1

HOOD

HOUSING - latch

1шт.

10

60-6260T1

BUSHING

- pivot, handle

1шт.

11

60-6263T1

LEVER

- latch actuating

1шт.

12

60-6267T1

GRIP

- lever

1шт.

13

60-6261T1

WASHER

- flat, plastic

1шт.

14

19-5777

LOCK NUT

- hex, special

4шт.

17

1970023C1

SPRING

- latch

1шт.

18

427-4077

CLEVIS PIN,1/4" x .770"

PIN, CLEVIS, , Hardened 1/4" x .770"

2шт.

19

432-48

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

2шт.

20

60-5001T1

LATCH

- door

1шт.

21

443-13120

SCREW,Cross Flat Hd, 5/16"-18 x 1 1/4"

- machine, flat Phillips, 5/16 NC x 1-1/4 inch

3шт.

22

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32") 5/16"

2шт.

23

426-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

- hex, 5/16 NC x 3/4 inch, grade 8

2шт.

27

60-4193T1

LATCH

STRIKER - door, Includes: Ref. 28

1шт.

28

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

1шт.

29

231-4117

LOCK NUT,7/16"-14, GB

NUT - hex, self-locking, 7/16 inch NC

1шт.

30

495-31022

WASHER,#10

3шт.

31

1-8674

CAP WASHER

- trim

3шт.

32

60-6688T1

SCREW

- hex washer head, self-tapping, special

3шт.

33

60-5920T1

CAP

- trim, gray

3шт.

36

213-124

ADJUSTABLE CLEVIS,1/4"-28

CLEVIS, ADJUSTABLE, 1/4"-28

2шт.

37

425-114

NUT,1/4"-28, G5

2шт.

39

60-7047T1

THREADED ROD

ROD - actuating, latch

1шт.

40

60-7083T1

HANDLE

- door

1шт.

53

131-837

SPRING NUT,Tinn, U, 1/4"-20

2шт.

54

60-7186T1

COVER

- door, lower

1шт.

56

426-416

BOLT,Hex, 1/4" - 20 x 1", Gr 8

1шт.

57

F64046

WASHER,9.91mm ID x 19.05mm OD x 0.76mm Thk

- thrust, plastic

4шт.

58

60-7046T1

ACTUATOR

ANGLE - latch actuating

1шт.

59

140-114

SCREW,Cross Pan Hd, 1/4" - 20 x 1"

Cross Pan Hd, 1/4"-20 NC x 1"

3шт.

60

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

3шт.

61

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

3шт.

62

60-6256T1

ANCHOR

STUD - anchor

1шт.

Выбрано товаров: 39
