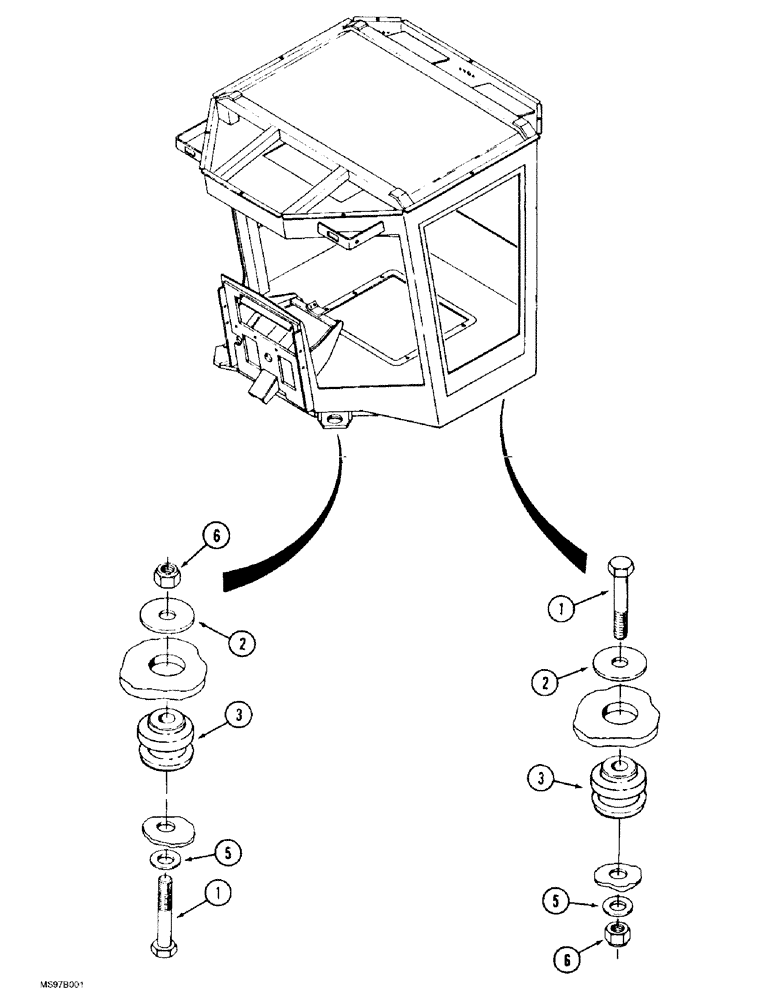

Запчасти Case IH 9370 QUADTRAC (9-038) - MOUNTS, CAB (09) - CHASSIS/ATTACHMENTS

1

413-1672

BOLT,Hex, 1" - 8 x 4-1/2", Gr 5

- hex, 1 NC x 4-1/2 inch

4шт.

2

60-5033T1

WASHER

- special, 1-1/16 x 3-1/4 x 1/4 inch thick

4шт.

3

256214A1

MOUNTING PARTS

MOUNT - rubber isolator

4шт.

5

19-5739

WASHER

- flat, special

8шт.

6

231-14416

LOCK NUT,1"-8, GB

NUT - hex, self-locking, 1 inch NC

4шт.
