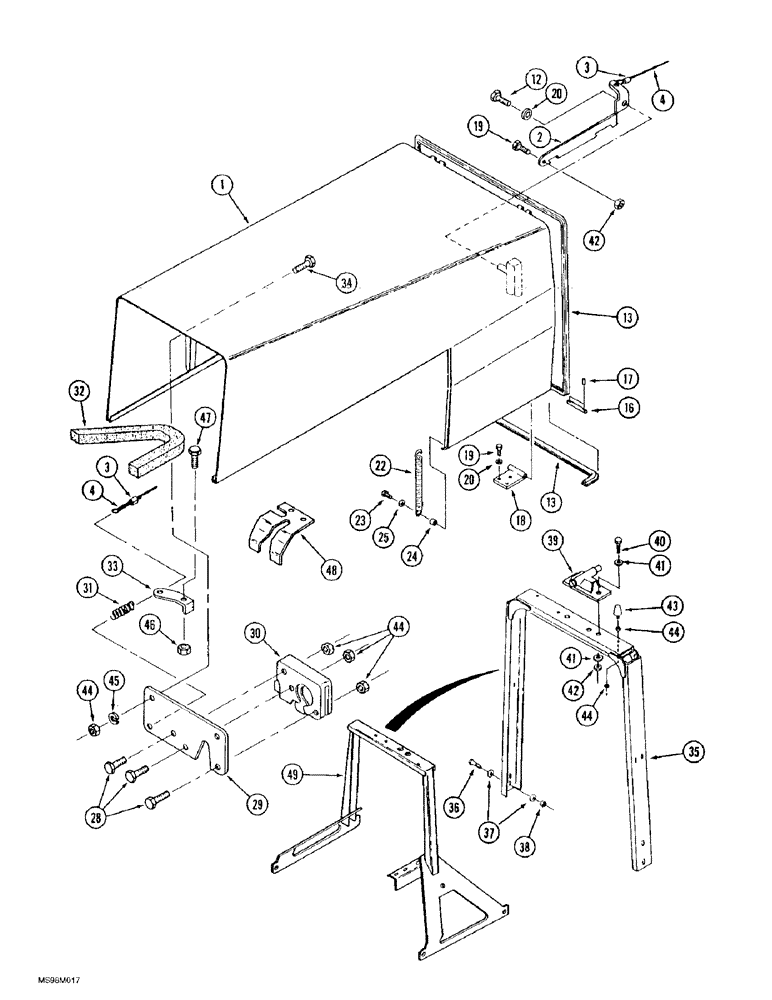

Запчасти Case IH 9370 QUADTRAC (9-030) - HOOD AND SUPPORT (09) - CHASSIS/ATTACHMENTS

1

324564A1

HOOD

- engine, replaces 70-6820T1 hood

1шт.

2

70-6840T1

LATCH

- open hood retaining

1шт.

3

70-5275T1

MOUNTING CLIP

CLAMP - includes U-bolt and nut

3шт.

Part of hood latch kit P/N 35-1983T91

1шт.

4

70-6732T1

ROPE

- wire, 4521 mm (178 inch) long, cut from 70-5252T1 bulk rope, see below

1шт.

12

426-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 8

- hex, 3/8 NC x 5/8 inch, grade 8

1шт.

13

70-5263T1

SEAL

- foam, 1092 mm (43 inch) long, cut from 70-5259T1X bulk seal, see below

5шт.

16

70-4262T2

PIN,12.7mm OD x 185.67mm L

- hood hinge

2шт.

17

9415236

PIN, ROLL

PIN - 1/8 x 3/4 inch

4шт.

18

70-4263T1

HINGE

- hood

2шт.

19

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

7шт.

20

496-41041

WASHER,13/32" x 1 1/8" x .134"

- flat, 13/32 x 1-1/8 x 9/64 inch, hardened

9шт.

22

19-6261

SPRING

- assist, hood opening

2шт.

23

426-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 8

- hex, 1/2 NC x 2-1/4 inch, grade 8

2шт.

24

2-8012T1

SPACER

- spring retainer

2шт.

25

19-961

WASHER,17/32" x 1 1/2" x 1/8"

- flat

2шт.

28

426-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 8

- hex, 5/16 NC x 1-1/2 inch, grade 8

3шт.

Part of hood latch kit P/N 35-1983T91

1шт.

29

313066A1

CATCH

MOUNT - latch, replaces 70-6822T1 mount, also order (1) 324785A1 striker item 39

1шт.

Part of hood latch kit P/N 35-1983T91

1шт.

30

60-5001T1

LATCH

- door

1шт.

Part of hood latch kit P/N 35-1983T91

1шт.

31

A163012

SPRING

- latch return

1шт.

32

60-6705T1

FOAM

SEAL - foam, rear hood

1шт.

33

70-6841T1

LATCH

ARM - latch articulation

1шт.

Part of hood latch kit P/N 35-1983T91

1шт.

34

426-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

- hex, 5/16 NC x 3/4 inch, grade 8

2шт.

Part of hood latch kit P/N 35-1983T91

1шт.

35

70-6501T2

SUPPORT

- hood, prior to P.I.N. JEE0071837

1шт.

36

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

- hex, 1/2 NC x 1-1/2 inch, grade 8

4шт.

37

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 7/64 inch

10шт.

38

231-4118

LOCK NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC

5шт.

39

324785A1

LARGE PLATE

STRIKER - hood retaining latch, replaces 70-6823T1 striker

1шт.

Part of hood latch kit P/N 35-1983T91

1шт.

40

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

3шт.

41

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

5шт.

42

231-1446

NUT,3/8" - 16, Gr 5

NUT, LOCK, 3/8"-16, GB

3шт.

43

N7673

BUMPER

- rubber

2шт.

44

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

9шт.

Part of hood latch kit P/N 35-1983T91

1шт.

45

492-11038

LOCK WASHER,3/8"

2шт.

Part of hood latch kit P/N 35-1983T91

1шт.

46

231-1444

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

1шт.

Part of hood latch kit P/N 35-1983T91

1шт.

47

426-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 8

- hex, 1/4 NC x 3/4 inch, grade 8

1шт.

Part of hood latch kit P/N 35-1983T91

1шт.

48

70-6829T1

LARGE PLATE

PLATE - guide

1шт.

Part of hood latch kit P/N 35-1983T91

1шт.

49

70-6923T1

SUPPORT

- hood, P.I.N. JEE0071837 and after

1шт.

New style hood support to reduce necessity to adjust hood latch in factory. Front frames changed by adding holes to side sheets - deleting brackets.

1шт.

70-5252T1

ROPE

- wire, bulk, 7620 mm (300 inch) long

1шт.

70-5259T1X

SEAL

- foam, bulk, 3048 mm (120 inch) long

1шт.

35-1983T91

PACKAGE,SERVICE

KIT - hood latch, Includes: Refs. 3, 28, 29, 30, 33, 34, 39 and 44 - 48 and (2) 425-106 nuts, and (2) 19-6113 bushings, not shown

1шт.
