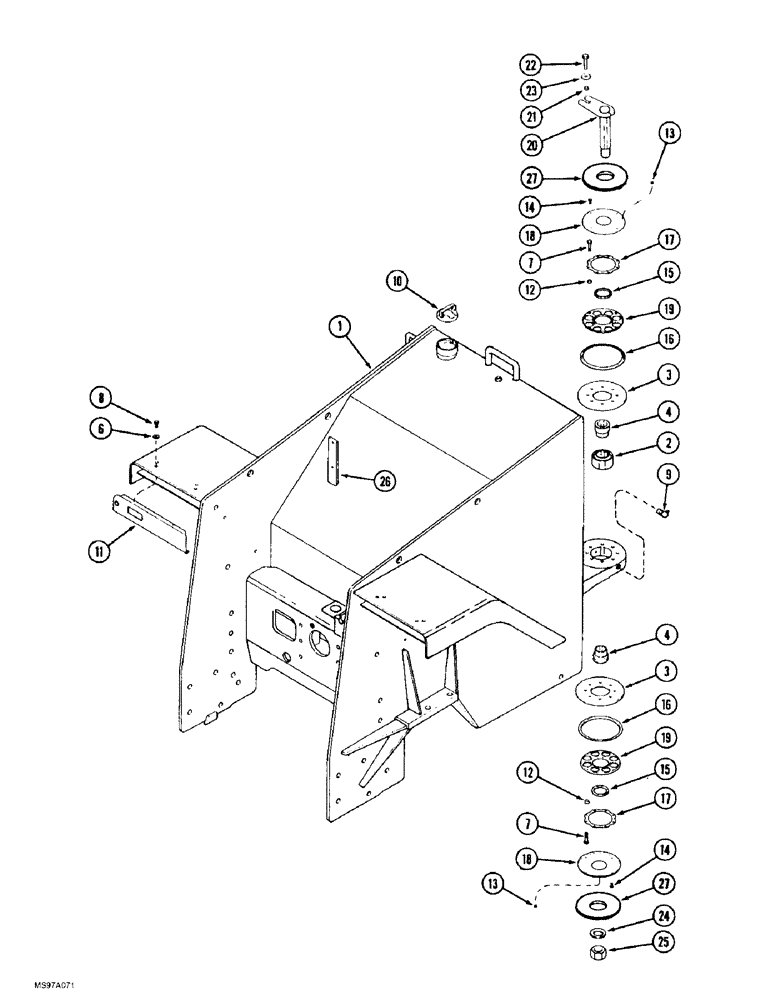

Запчасти Case IH 9370 QUADTRAC (9-028) - REAR FRAME (09) - CHASSIS/ATTACHMENTS

1

199010A2

FRAME

- rear

1шт.

2

R37021

SPHERICAL BEARING,63.5mm ID x 111.13mm OD x 64.64mm W

BEARING - pivot, spherical

1шт.

3

70-6063T1

RETAINER

- bearing

2шт.

4

70-5836T2

RING RACE

SLEEVE - bearing

2шт.

6

495-21031

WASHER,1/4"

- flat, 5/16 x 3/4 x 1/16 inch

4шт.

7

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

16шт.

8

281-54712

SCREW,Hex Wshr Hd, 1/4" - 20 x 3/4"

- self tapping, hex washer head, 1/4 NC x 3/4 inch

10шт.

9

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 45 degree, 1/8 PT x 7/8 inch

1шт.

10

A162191

CAP

- fuel

1шт.

11

282832A1

PLATE

BRACKET - lamp mounting, left-hand, replaces 248877A2 bracket

1шт.

11

282833A1

PLATE

BRACKET - lamp mounting, right-hand, not shown, replaces 248878A2 bracket

1шт.

12

70-6199T1

SPACER

- cover

16шт.

13

217-430

PLUG,Hex Soc, 1/8" - 27 NPTF

- hex socket headless, 1/8 inch PT

2шт.

14

163-47

SCREW,Hex, #10 - 32 x 1/2", Gr 5

8шт.

15

D95148

WIPER SEAL

WIPER - seal

2шт.

16

70-6378T3

SEAL

- outer

2шт.

17

70-6198T1

RETAINER

- gasket

2шт.

18

70-6189T1

COVER

- bearing

2шт.

19

70-6190T1

HOUSING

- bearing

2шт.

20

70-6180T3

PIN

- pivot, frame

1шт.

21

70-5967T1

SPACER,16.7mm ID x 22.2mm OD x 11.2mm

- pin

1шт.

22

426-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 8

- hex, 5/8 NC x 1-1/2 inch, grade 8

1шт.

23

495-11066

WASHER,5/8", SAE

- flat, 21/32 x 1-5/16 x 3/32 inch

1шт.

24

1-4088

WASHER,45mm ID x 69.9mm OD x 6.35mm Thk

- flat, 1-3/4 x 2-3/4 x 1/4 inch

1шт.

25

70-6221T1

JAM NUT

- special locking

1шт.

26

70-5891T2

LARGE PLATE

PLATE - mounting, SMV

1шт.

27

19-5709

WASHER,51.21mm ID x 88.9mm OD x 3.8mm Thk

- special

2шт.
