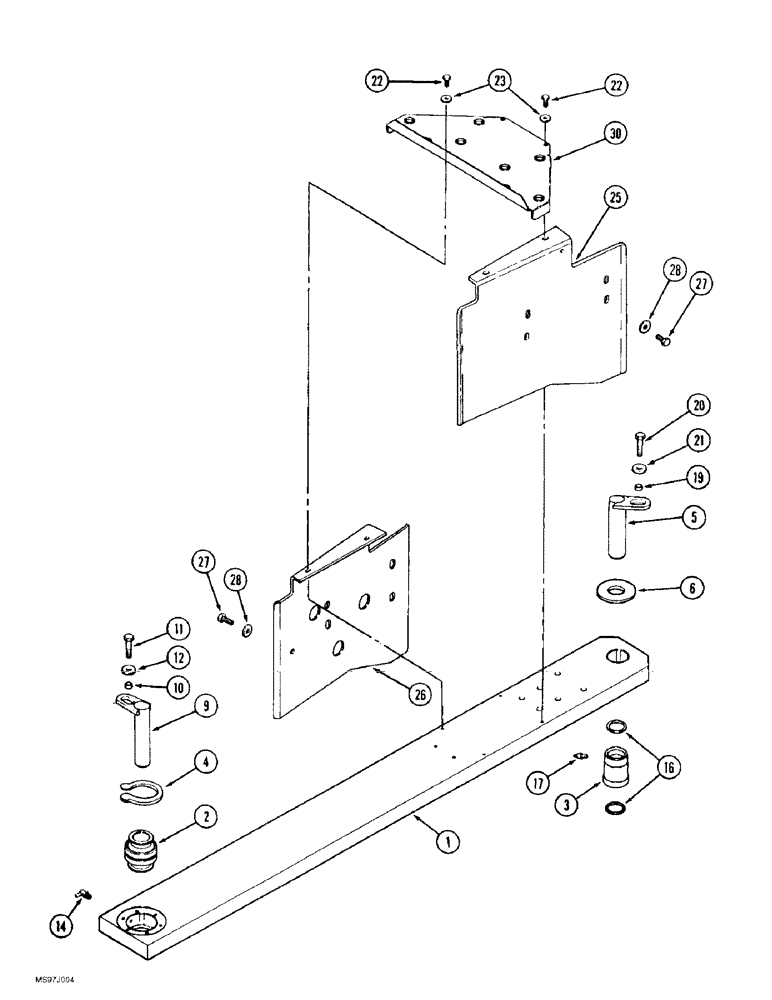

Запчасти Case IH 9370 QUADTRAC (9-026) - CENTER LINK (09) - CHASSIS/ATTACHMENTS

220531A1

LINK

ASSEMBLY - center, Includes: Ref. 1 - 4

1шт.

1

220522A1

LINK

- center, articulation and oscillation

1шт.

2

70-5468T1

SPHERICAL BEARING,1.751" ID x 3.5625" OD x 4"

BEARING - spherical

1шт.

3

70-6217T1

BUSHING

- pivot, link

1шт.

4

101-21354

SNAP RING,#354, Int

RING, SNAP, , Retaining #354, Int

1шт.

5

70-6085T2

PIN

- pivot

1шт.

6

19-5709

WASHER,51.21mm ID x 88.9mm OD x 3.8mm Thk

- special

1шт.

9

70-6076T2

PIN

- pivot

2шт.

10

70-5967T1

SPACER,16.7mm ID x 22.2mm OD x 11.2mm

- pin

1шт.

11

426-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 8

- hex, 5/8 NC x 1-1/2 inch, grade 8

1шт.

12

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

- flat, 21/32 x 1-5/16 x 5/32 inch, hardened

1шт.

14

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

16

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - piston rod

2шт.

17

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

17шт.

19

70-5967T1

SPACER,16.7mm ID x 22.2mm OD x 11.2mm

- pin

1шт.

20

426-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 8

- hex, 5/8 NC x 1-1/2 inch, grade 8

1шт.

21

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

- flat, 21/32 x 1-5/16 x 5/32 inch, hardened

1шт.

22

426-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

- hex, 3/8 NC x 3/4 inch, grade 8

4шт.

23

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

4шт.

25

70-6477T2

COVER

- driveshaft, right-hand, replaces 258812A1 cover

1шт.

26

70-6478T2

COVER

- driveshaft, left-hand, replaces 258811A1 cover

1шт.

27

426-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 8

4шт.

28

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

4шт.

30

70-6216T2

STEP

- maintenance

1шт.
