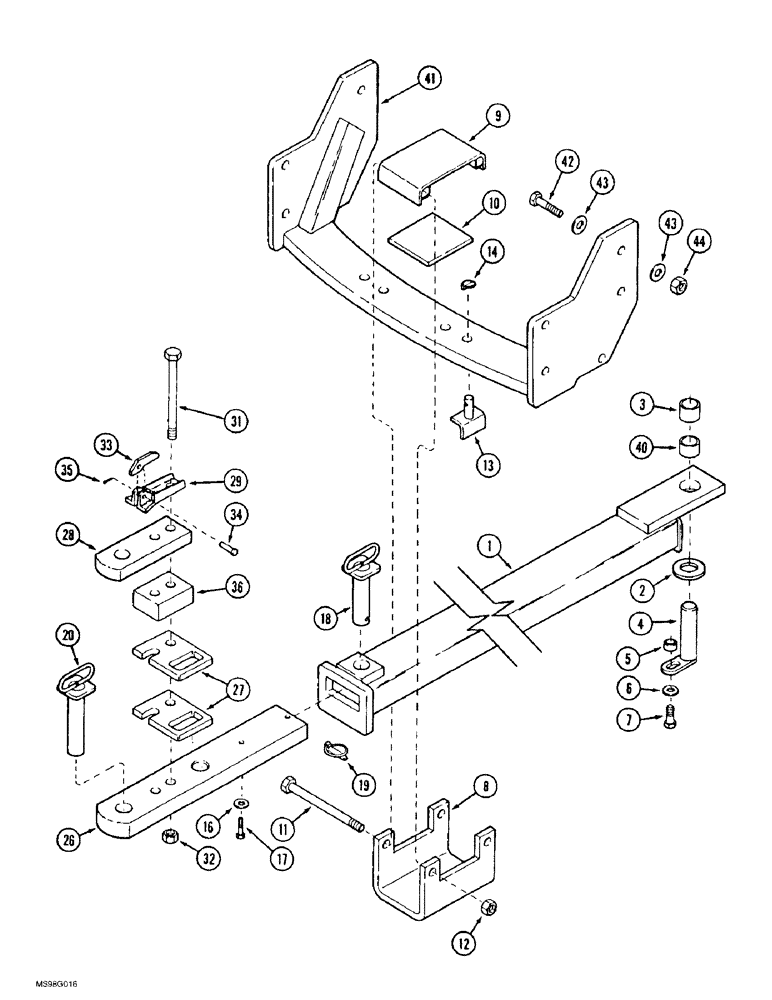

Запчасти Case IH 9370 QUADTRAC (9-020) - DRAWBAR, EXTENDABLE, IF USED (09) - CHASSIS/ATTACHMENTS

1

223010A1

TUBE

- receiver, drawbar

1шт.

2

1-4088

WASHER,45mm ID x 69.9mm OD x 6.35mm Thk

- flat, 1-3/4 x 2-3/4 x 1/4 inch

1шт.

3

70-5915T2

SPACER

- connecting link

1шт.

70-5915T2 Spacer - replaced in later units Oct. 16, 1998 release F98791 release p/n 339922A1 on the Reynolds drawbar option update. NAPO TECH NOTE

1шт.

4

70-6076T2

PIN

- drawbar

1шт.

5

70-5967T1

SPACER,16.7mm ID x 22.2mm OD x 11.2mm

- pin

1шт.

6

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

- flat, 21/32 x 1-5/16 x 5/32 inch, hardened

1шт.

7

426-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 8

- hex, 5/8 NC x 1-1/2 inch, grade 8

1шт.

8

70-4516T1

CLEVIS

YOKE - cradle, drawbar

1шт.

9

70-4555T1

COVER

- retaining, slide

1шт.

10

70-4513T2

SKID/SHOE

SLIDER - plastic, drawbar

1шт.

11

90-7494T1

SCREW,#0 - 8 x 9 1/4""

BOLT - hex, special, 1 NC x 9-1/4 inch

2шт.

12

425-1016

NUT,1"-8, G5

- hex, 1 inch NC

2шт.

13

70-1937T2

SHAFT LOCK

PIN - retaining

2шт.

14

517758R91

SPLIT PIN/SAFETY PIN

PIN - klik, locking

2шт.

16

495-21069

WASHER,5/8"

- flat, 11/16 x 1-3/4 x 9/64 inch

5шт.

17

426-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 8

- hex, 5/8 NC x 1-1/4 inch, grade 8

2шт.

18

70-1731T1

PIN

- drawbar retaining

1шт.

19

19-1041

LOCK PIN,7/16" x 2"

PIN - klik, locking

1шт.

20

70-1735T1

PIN

- drawbar pull

1шт.

70-6254T91

DRAWBAR

ASSEMBLY - extendable, Includes: Ref. 26 - 36

1шт.

26

70-6913T1

DRAWBAR

- extendable

1шт.

27

70-6263T2

LARGE PLATE

PLATE - spacer block

2шт.

28

70-6265T1

LARGE PLATE

PLATE - hammerstrap

1шт.

29

70-6249T1

LATCH

- mount

1шт.

31

90-7494T1

SCREW,#0 - 8 x 9 1/4""

BOLT - hex, special, 1 NC x 9-1/4 inch

2шт.

32

425-1016

NUT,1"-8, G5

- hex, 1 inch NC

2шт.

33

1965315C2

LEVER

- hammerstrap

1шт.

34

527-204

CLEVIS PIN,M12 x 43

PIN - clevis, 10 x 43 mm

1шт.

35

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

1шт.

36

70-6264T2

LARGE PLATE

BLOCK - spacer, 1-1/2 inch thick

1шт.

40

70-4620T2

BUSHING,44.6mm ID x 57.12mm OD x 37.34mm L

- drawbar

1шт.

41

223274A1

HANGER

- drawbar

1шт.

42

426-1648

BOLT,Hex, 1" - 8 x 3", Gr 8

- hex, 1 NC x 3 inch, grade 8

10шт.

43

19-5739

WASHER

- flat, special

20шт.

44

425-1016

NUT,1"-8, G5

- hex, 1 inch NC

10шт.
