Запчасти Case IH 9370 QUADTRAC (9-014) - THREE POINT HITCH LIFT LINKS, P.I.N. JEE0069308 AND AFTER (09) - CHASSIS/ATTACHMENTS

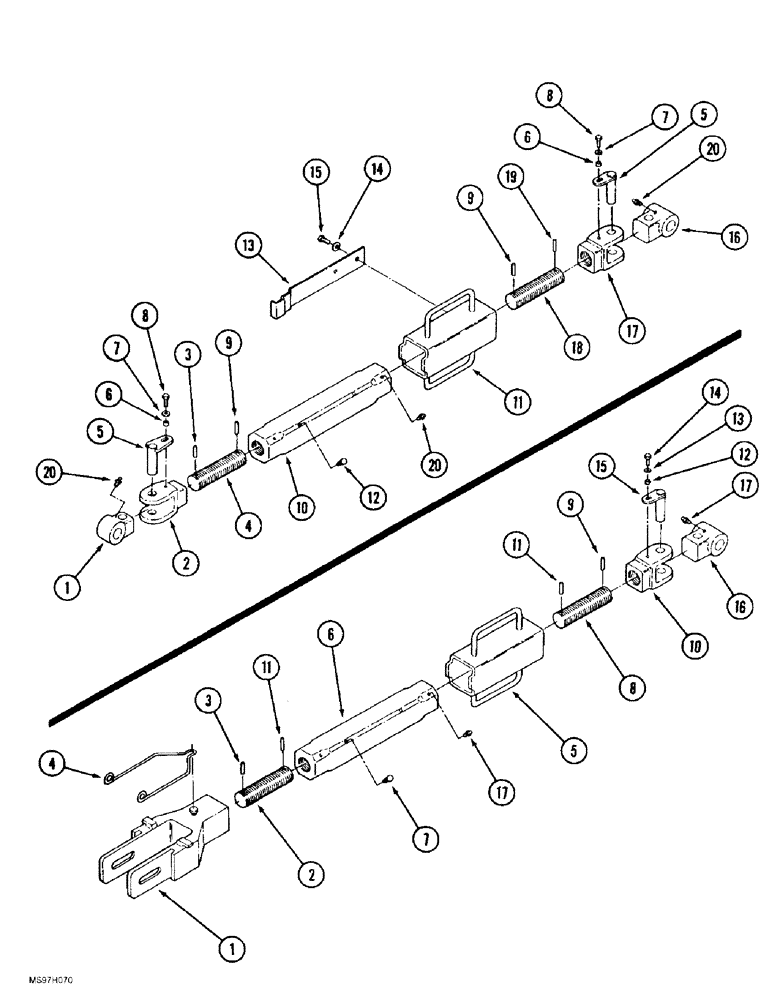

Схема запчастей Case IH 9370 QUADTRAC - (9-014) - THREE POINT HITCH LIFT LINKS, P.I.N. JEE0069308 AND AFTER (09) - CHASSIS/ATTACHMENTS
6
9
9
10
7
4
16
2
9
5
18
8
8
20
4
11
3
13
16
2
20
8
3
7
5
15
7
10
6
17
17
12
14
5
1
11
6
17
13
15
14
12
11
19
1
20

Артикул

Название

Примечание

Количество

253908A1

LINK

ASSEMBLY - upper, Includes; Ref. 1 - 20

1шт.

1

258946A1

KNUCKLE

- link, left-hand side

1шт.

279050A1

LINK

ASSEMBLY - U-joint, left-hand thread, Includes: Ref. 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

U-JOINT - link, left-hand

1шт.

3

NSS

NOT SOLD SEPARAT

PIN - coiled spring, 10 x 65 mm

1шт.

4

NSS

NOT SOLD SEPARAT

ROD - linkage, left-hand thread

1шт.

5

70-6013T2

PIN

- pivot, knuckle

2шт.

6

70-5967T1

SPACER,16.7mm ID x 22.2mm OD x 11.2mm

- pin

2шт.

7

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

- flat, 17.5 x 30 x 4 mm, hardened

2шт.

8

627-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd

2шт.

9

838-3655

PIN

- roll, 6 x 55 mm

2шт.

10

258550A1

TURNBUCKLE

- linkage

1шт.

11

283052A2

LOCK

- upper link

1шт.

12

295004A1

PLUG

- turnbuckle

4шт.

13

282523A1

LOCK

- anti-rotation

1шт.

14

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

2шт.

15

627-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 12 mm, class 10.9

2шт.

16

253894A1

KNUCKLE

- link, right-hand side

1шт.

279051A1

LINKAGE

LINK ASSEMBLY - U-joint, right-hand thread, Includes: Ref. 17 - 19

1шт.

17

NSS

NOT SOLD SEPARAT

U-JOINT - link, right-hand

1шт.

18

NSS

NOT SOLD SEPARAT

ROD - linkage, right-hand thread

1шт.

19

NSS

NOT SOLD SEPARAT

PIN - coiled spring, 10 x 65 mm

1шт.

20

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

6шт.

253909A1

ROCKER ARM

LINK ASSEMBLY - lift, Includes: Ref. 1 - 15

2шт.

279052A1

CLEVIS

LINK ASSEMBLY - clevis, Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

CLEVIS - hitch, left-hand

1шт.

2

NSS

NOT SOLD SEPARAT

ROD - linkage, left-hand thread

1шт.

3

NSS

NOT SOLD SEPARAT

PIN - coiled spring, 10 x 65 mm

1шт.

4

259472A1

SPRING LOCK

SPRING - lock

1шт.

5

258552A2

JOINT

LOCK - anti-rotation

1шт.

6

258550A1

TURNBUCKLE

- linkage

1шт.

7

295004A1

PLUG

- turnbuckle

4шт.

279051A1

LINKAGE

LINK ASSEMBLY - U-joint, right-hand, Includes: Ref. 8 - 10

1шт.

8

NSS

NOT SOLD SEPARAT

ROD - linkage

1шт.

9

NSS

NOT SOLD SEPARAT

PIN - coiled spring, 10 x 65 mm

1шт.

10

NSS

NOT SOLD SEPARAT

U-JOINT - link

1шт.

11

838-3655

PIN

- roll, 6 x 55 mm

2шт.

12

70-5967T1

SPACER,16.7mm ID x 22.2mm OD x 11.2mm

- pin

1шт.

13

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

- flat, 17.5 x 30 x 4 mm, hardened

1шт.

14

627-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd

1шт.

15

70-6013T2

PIN

- pivot, knuckle

1шт.

16

253894A1

KNUCKLE

- link, lift

1шт.

17

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

4шт.

Выбрано товаров: 43
