Запчасти Case IH 9370 QUADTRAC (9-006) - THREE POINT HITCH UPPER AND LOWER LINK MOUNTS, PRIOR TO P.I.N. JEE0069308 (09) - CHASSIS/ATTACHMENTS

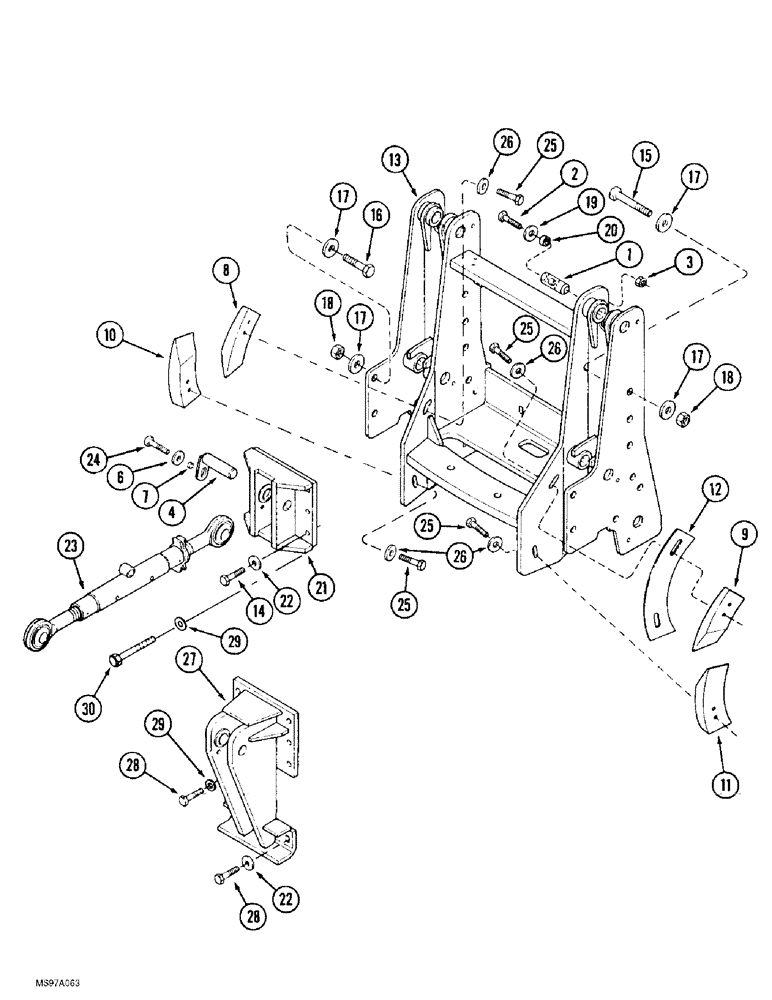

Схема запчастей Case IH 9370 QUADTRAC - (9-006) - THREE POINT HITCH UPPER AND LOWER LINK MOUNTS, PRIOR TO P.I.N. JEE0069308 (09) - CHASSIS/ATTACHMENTS
8
25
21
28
17
22
9
18
19
16
20
25
22
17
29
2
30
23
26
17
25
13
17
3
11
7
28
18
25
27
24
6
26
4
1
12
29
26
14
10
15

Артикул

Название

Примечание

Количество

231588A1

MOUNTING PARTS

MOUNT ASSEMBLY - three point hitch, Includes: Ref. 1 - 12

1шт.

1

70-5972T2

PIN

- rocker shaft

6шт.

2

426-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

- hex, 5/8 NC x 2 inch, grade 8

14шт.

3

425-1010

NUT,5/8"-11, G5

6шт.

4

70-6147T2

PIN

- upper

2шт.

6

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

- flat, 21/32 x 1-5/16 x 5/32 inch, hardened

1шт.

7

70-5967T1

SPACER,16.7mm ID x 22.2mm OD x 11.2mm

- pin

1шт.

8

70-6096T1

STIFFENER

BLOCK - no sway, left-hand upper

1шт.

9

70-6018T1

BLOCK

- no sway, right-hand upper

1шт.

10

70-6098T1

SPACER

BLOCK - no sway, left-hand lower

1шт.

11

70-6020T1

BLOCK ASSY.

BLOCK - no sway, right-hand lower

1шт.

12

70-6387T1

LARGE PLATE

PLATE - sway block

2шт.

13

70-5991T2

SUPPORT

MOUNT - rear frame, three point hitch

1шт.

REF: 13 WHEEL TRACTOR ONLY FOR QUADTRAC ORDER P/N 227686A1 FOR S/N JEE0069308 & AFTER. NAPO TECH. NOTE

1шт.

14

827-20210

BOLT,Hex, M20 x 2.5 x 210mm, Cl 10.9

- hex, 20 - 2.5 x 210 mm, class 10.9, with PTO

6шт.

15

90-7493T1

SCREW,#0 - 8 x 10"

BOLT - hex, 1 NC x 10 inch

10шт.

16

426-1640

BOLT,Hex, 1" - 8 x 2-1/2", Gr 8

- hex, 1 NC x 2-1/2 inch, grade 8

6шт.

17

496-21106

WASHER,1 1/16" x 2" x .209", HDN

- flat, 1-1/16 x 2 x 13/64 inch, Hardened

32шт.

18

429-1016

NUT,1"-8, G8

- hex, 1 inch NC, grade 8

16шт.

19

495-11066

WASHER,5/8", SAE

- flat, 21/32 x 1-5/16 x 3/32 inch

2шт.

20

70-5967T1

SPACER,16.7mm ID x 22.2mm OD x 11.2mm

- pin

2шт.

21

70-6022T1

SUPPORT

MOUNT - upper link, with PTO

1шт.

22

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

- flat, 22 x 37 x 4 mm, hardened

8шт.

23

70-6473T91

UPPER LINK

LINK ASSEMBLY - upper, parts list Figure 9-012

1шт.

24

426-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 8

- hex, 5/8 NC x 1-1/2 inch, grade 8

1шт.

25

426-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

- hex, 5/8 NC x 2 inch, grade 8

8шт.

26

495-11066

WASHER,5/8", SAE

- flat, 21/32 x 1-5/16 x 3/32 inch

8шт.

27

70-6025T3

SUPPORT

MOUNT - upper link, without PTO

1шт.

28

827-20075

BOLT,Hex, M20 x 2.5 x 75mm, Cl 10.9, Full Thd

- hex, 20 - 2.5 x 75 mm, class 10.9, without PTO

8шт.

29

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

- flat, 22 x 37 x 4 mm, hardened

8шт.

30

827-20190

BOLT,Hex, M20 x 2.5 x 190mm, Cl 10.9

- hex, 20 - 2.5 x 190 mm, class 10.9, with PTO

2шт.

REF: 30 R/B QTY 2 OF L130035 SPACER AND QTY 2 OF 827-20210 BOLT M20 X 210 10.9 ZND ECN F990082 NAPO TECH NOTE

1шт.

Выбрано товаров: 32
