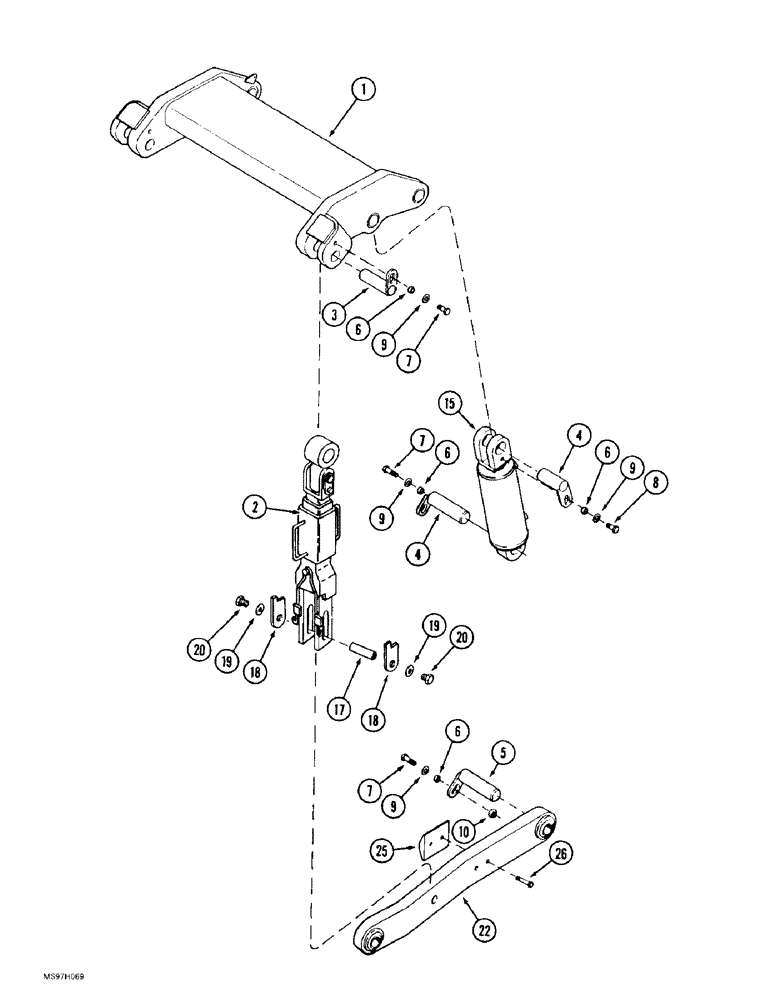

Запчасти Case IH 9370 QUADTRAC (9-004) - THREE POINT HITCH CYLINDERS AND LOWER LIFT ARM, P.I.N. JEE0069308 AND AFTER (09) - CHASSIS/ATTACHMENTS

254558A1

MOUNTING PARTS

MOUNT ASSEMBLY - three point hitch, See Figure 9-008, Includes: Ref. 1 - 26

1шт.

1

REF

INSTRUCTION

ROCKERSHAFT ASSEMBLY - hitch, parts list Figure 9-010

1шт.

2

253909A1

ROCKER ARM

LINK ASSEMBLY - lift, parts list Figure 9-014

2шт.

3

70-6076T2

PIN

- lift link, upper

2шт.

4

70-5973T2

PIN

- cylinder, upper

2шт.

5

70-5972T2

PIN

- cylinder lower and draft arm

6шт.

6

70-5967T1

SPACER,16.7mm ID x 22.2mm OD x 11.2mm

- pin

10шт.

7

627-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd

6шт.

8

426-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 8

- hex, 5/8 NC x 1-1/4 inch, grade 8

2шт.

9

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

- flat, 17.5 x 30 x 4 mm, hardened

8шт.

15

50-3410T91

CYLINDER ASSY.

CYLINDER ASSEMBLY - lift, parts list Figure 8-85

2шт.

17

253900A1

PIN

- lower, draft arm

2шт.

18

253901A1

LARGE PLATE

PLATE - lockout

4шт.

19

495-21069

WASHER,5/8"

- flat, 11/16 x 1-3/4 x 9/64 inch

4шт.

20

627-16030

BOLT,Hex, M16 x 2 x 30mm, Cl 10.9, Full Thd

4шт.

22

278604A1

LINK

ARM - draft, lower link, lift

2шт.

25

279613A1

BLOCK ASSY.

BLOCK - wear

2шт.

26

827-12065

BOLT,Hex, M12 x 1.75 x 65mm, Cl 10.9

- hex, 12 - 1.75 x 65 mm, class 10.9

4шт.
