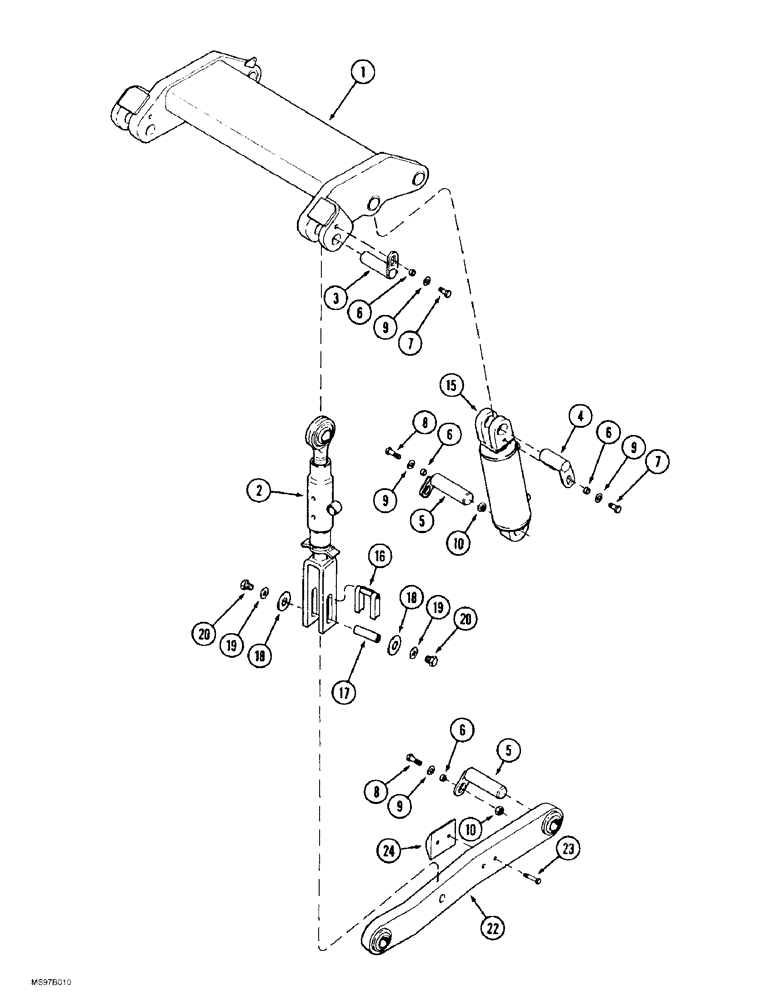

Запчасти Case IH 9370 QUADTRAC (9-002) - THREE POINT HITCH CYLINDERS AND LOWER LIFT ARMS, PRIOR TO P.I.N. JEE0069308 (09) - CHASSIS/ATTACHMENTS

231588A1

MOUNTING PARTS

MOUNT ASSEMBLY - three point hitch, Includes: Ref. 1 - 24

1шт.

1

REF

INSTRUCTION

ROCKERSHAFT ASSEMBLY - hitch, parts list Figure 9-11

1шт.

2

70-6468T91

ROD, CONNECTING

LINK ASSEMBLY - lift, parts list Figure 9-012

2шт.

3

70-6147T2

PIN

- lift link, upper

2шт.

4

70-5973T2

PIN

- cylinder, upper

2шт.

5

70-5972T2

PIN

- cylinder lower and draft arm

4шт.

6

70-5967T1

SPACER,16.7mm ID x 22.2mm OD x 11.2mm

- pin

8шт.

7

426-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 8

- hex, 5/8 NC x 1-1/4 inch, grade 8

4шт.

8

426-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

- hex, 5/8 NC x 2 inch, grade 8

4шт.

9

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

- flat, 21/32 x 1-5/16 x 5/32 inch, hardened

8шт.

10

425-1010

NUT,5/8"-11, G5

4шт.

15

50-3410T91

CYLINDER ASSY.

CYLINDER ASSEMBLY - lift, parts list Figure 8-83

2шт.

16

70-6458T91

BLOCK ASSY.

BLOCK ASSEMBLY - clevis locking, three piece, parts list Figure 9-010

2шт.

17

70-2059T1

PIN

- lower

2шт.

18

495-21138

WASHER,1 1/4"

- flat, 1-3/8 x 3 x 5/32 inch

4шт.

19

495-21069

WASHER,5/8"

- flat, 11/16 x 1-3/4 x 9/64 inch

4шт.

20

413-1012

BOLT,Hex, 5/8" - 11 x 3/4", Gr 5

- hex, 5/8 NC x 3/4 inch

4шт.

22

70-6467T1

LINK

ARM - draft, lower link, lift

2шт.

23

426-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 8

- hex, 1/2 NC x 2-1/2 inch, grade 8

4шт.

24

70-6016T1

LARGE PLATE

PLATE - wear

2шт.
