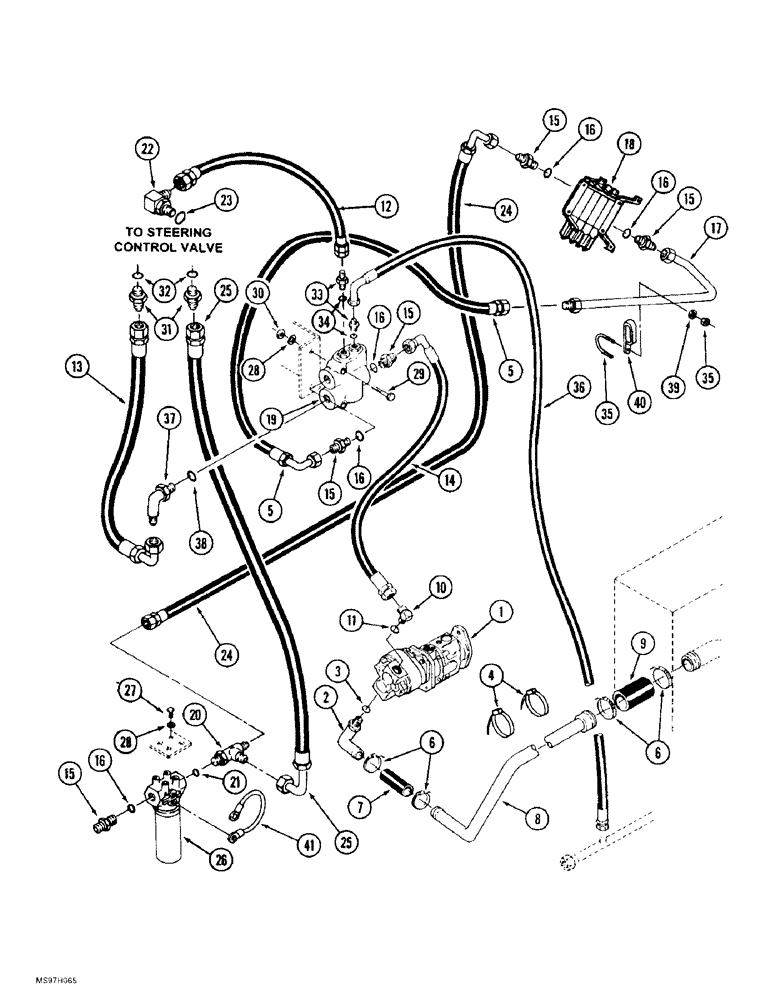

Запчасти Case IH 9370 QUADTRAC (8-120) - HIGH OUTPUT HYDRAULIC SYSTEM, GEAR PUMP CIRCUIT TO PRIORITY VALVE, P.I.N. JEE0071001 AND AFTER (08) - HYDRAULICS

1

50-3619T91

PUMP, HYDRAULIC

PUMP ASSEMBLY - tandem, parts list Figure 8-012

1шт.

2

31-1394

ELBOW

- hose stem, special, Includes: Ref. 3

1шт.

3

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk

1шт.

4

19-135

CABLE TIE

STRAP - tie, nylon

5шт.

5

31-3155

HOSE

- 1003 mm (39-1/2 inch) long, priority valve to pressure tube

1шт.

6

31-1283

MOUNTING CLIP

CLAMP - adjustable, 1-1/4 x 2-5/8 inch

4шт.

7

1-5651

HOSE,1.45" ID, 1.55" ID x 8.00"

cut from 1-4482 bulk hose, see below 1.45" ID, 1.55" ID x 8.00"

1шт.

8

50-3415T2

HYD TUBE

TUBE - supply, Serial Range: pump-tank

1шт.

9

31-2427

HOSE,2.00" ID x 6.00"

; Order 1-4568T1, and Cut to Required Length; See Below 2.00" ID x 6.00"

1шт.

10

218-5124

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

- 90 degree, 1-5/16-12 flare x 1-1/16-12 inch adj O-ring boss, Includes: Ref. 11

1шт.

11

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

12

31-2814

HOSE

- 711 mm (28 inch) long, steering sensing

1шт.

13

31-1041

HOSE,19.05mm ID x 838mm L

- 838 mm (33 inch) long, priority valve to steering control

1шт.

14

32-187

HOSE

- 762 mm (30 inch) long, to priority valve

1шт.

15

218-5050

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR, HYD., straight, 1-5/16-12 flare x 1-1/16-12 inch O-ring boss, Incl. Ref. 16

3шт.

16

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

3шт.

17

50-3554T1

HYD TUBE

TUBE - supply, hose to control valve

1шт.

18

50-3609T91

VALVE

ASSEMBLY - remote, four spool, parts list Figure 8-038

1шт.

19

50-3155T91

VALVE

ASSEMBLY - priority, parts list Figure 8-028

1шт.

20

218-5584

TEE,37 Degree, 1 5/16"-12, 1 5/16"-12 O-Ring Run, 1 1/16"-12

- 1-1/16-12 fl branch x 1-5/16-12 inch adj O-ring x flare, Includes: Ref. 21

2шт.

21

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch wide

2шт.

22

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

- 90 degree, 7/16-20 inch flare x adj O-ring boss, Includes: Ref. 23

1шт.

24

31-3174

HOSE

- 1752 mm (75 inch) long, priority, Serial Range: valve-filter

1шт.

25

31-3220

HOSE ASSY.

HOSE - priority valve to steering control

1шт.

26

D131293

FILTER

ASSEMBLY - hydraulic oil, parts list Figure 8-026

1шт.

27

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

28

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32") 5/16"

4шт.

29

426-556

BOLT,Hex, 5/16" - 18 x 3-1/2", Gr 8

- hex, 5/16 NC x 3-1/2 inch, grade 8

2шт.

30

231-1446

NUT,3/8" - 16, Gr 5

NUT, LOCK, 3/8"-16, GB

3шт.

31

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, 1-1/16-12 inch flare x O-ring boss, Incl. Ref. 32

2шт.

32

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

2шт.

33

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

ADAPTER - straight, 7/16-20 flare x O-ring boss, Incl. Ref. 34

2шт.

35

19-6258

U-BOLT

- 1/4-20 inch, 1/4-20 inch, supplied with (2) nuts

1шт.

36

31-3027

HOSE

- 965 mm (38 inch) long, to return tube

1шт.

37

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º, 1-1/16-12 inch flare x adj O-ring boss, Incl. Ref. 38

1шт.

38

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

39

495-21031

WASHER,1/4"

- flat, 5/16 x 3/4 x 1/16 inch

2шт.

40

L101181

CLAMP,0.75" D Clamping pipes x 2

- double

1шт.

41

60-7251T1

ELECTRICAL WIRE

WIRE - filter restriction

1шт.

1-4482

LARGE HOSE

HOSE - bulk, 3048 mm (120 inch) long, sold by the foot

1шт.

1-4568

HOSE

- bulk, 51 (2) ID x 3048 mm (120 inch) long

1шт.

23

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

34

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

2шт.
