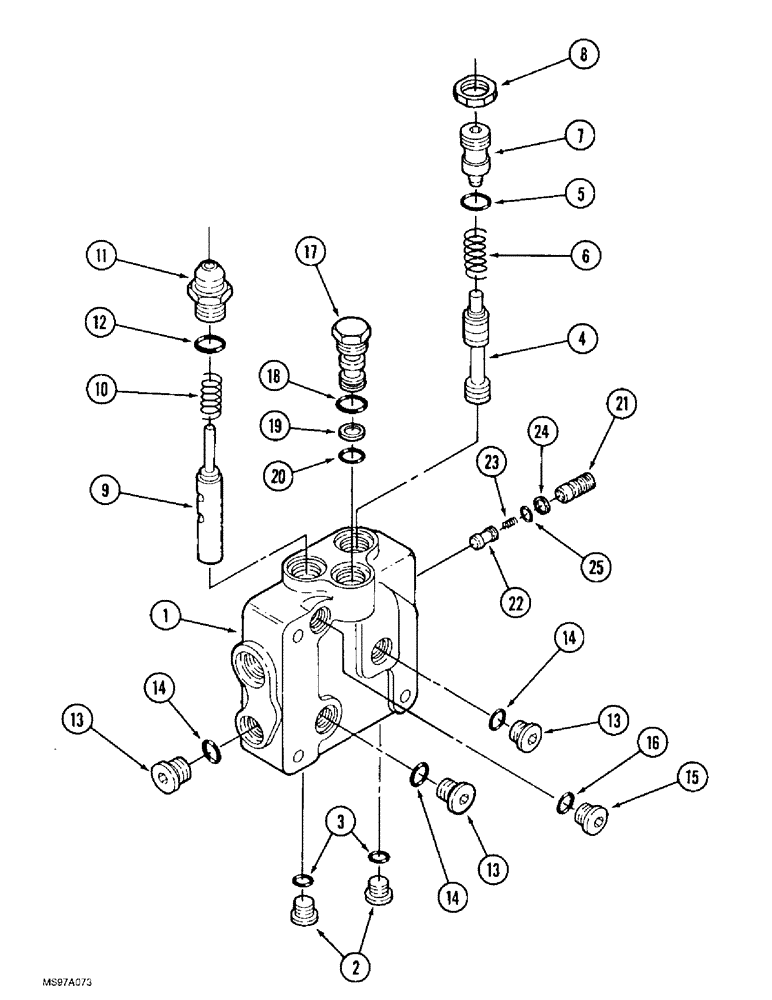

Запчасти Case IH 9370 QUADTRAC (8-106) - AXLE HYDRAULICS, REGULATOR VALVE ASSEMBLY (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
245040A2
VALVE
ASSEMBLY - regulator, Includes: Ref. 1 - 25
1шт.
1
NSS
NOT SOLD SEPARAT
HOUSING - regulator valve
1шт.
2
221578A1
PLUG,M18 x 1.5 ORB
Includes Ref. 3 Hex Soc, M18 x 1.5, ORB
2шт.
3
637-63193
O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro
Cl 6, 19.3MM ID x 2.2 Thk
2шт.
4
119182A3
SPOOL
- regulator
1шт.
5
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
12-1, 90 Duro, .924 ID x .116" Thk
1шт.
6
176312A1
SPRING
- regulator
1шт.
7
119184A2
PLUG
- adjusting
1шт.
8
218-1280
BHD LOCK NUT,Blkhd, 1 1/16"-12
NUT, LOCK, Blkhd, 1 1/16"-12
1шт.
9
248861A2
SPOOL
- lube
1шт.
10
245400A1
SPRING
- spool
1шт.
11
218-5064
HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB
ADAPTER - straight, 1-1/16-12 inch flare x O-ring boss, Incl. Ref. 12
1шт.
12
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
12-1, 90 Duro, .924 ID x .116" Thk
1шт.
13
221578A1
PLUG,M18 x 1.5 ORB
Includes Ref. 14 Hex Soc, M18 x 1.5, ORB
3шт.
14
637-63153
O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro
Cl 6, 15.3MM ID x 2.2 Thk
3шт.
16
637-63113
O-RING,2.2mm Thk x 11.3mm ID, Cl 6
Cl 6, 11.3MM ID x 2.2 Thk
1шт.
251714A1
PLUG
ASSEMBLY - pilot relief, Includes: Ref. 17 - 20
1шт.
17
251714A1
PLUG
ASSEMBLY - pilot relief, replaces 248512A1 plug
1шт.
18
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
12-1, 90 Duro, .924 ID x .116" Thk
1шт.
19
G35540
BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk
- backup
1шт.
20
238-6018
O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro
1шт.
1542563C1
KIT
VALVE ASSEMBLY - check, Includes: Ref. 21 - 25
1шт.
21
1994580C1
PLUG
- check
1шт.
22
1543329C1
VALVE POPPET,7mm ID x 13.8mm OD x 27mm L
PLUG - poppet
1шт.
23
1994581C1
SPRING,6.1mm OD x 31.1mm L
- load check
1шт.
24
G108723
RING,14.34mm ID x 16.94mm OD x 1.32mm Thk
- backup
1шт.
25
238-6015
O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro
1шт.
Выбрано товаров: 28
