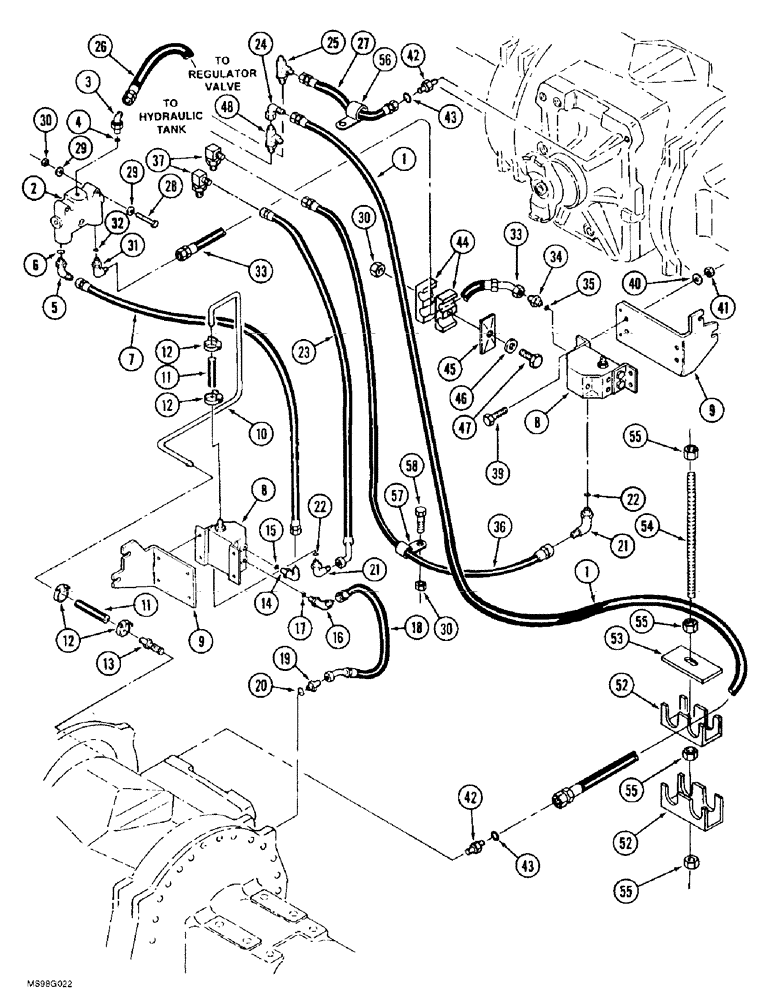

Запчасти Case IH 9370 QUADTRAC (8-102) - AXLE HYDRAULICS, AXLE LUBRICATION AND COOLING CIRCUIT (08) - HYDRAULICS

1

249492A1

HOSE

- 2844 mm (112 inch) long, prior to P.I.N. JEE0073053

1шт.

1

313819A2

HOSE ASSY.

HOSE - P.I.N. JEE0073053 and after

1шт.

2

245860A1

VALVE

- flow divider

1шт.

3

218-5528

ELBOW,45 Degree, 1 1/16"-12 x 7/8"-14, O-Ring

- 45 degree, 1-1/16-12 flare x 7/8-14 inch adj O-ring, Includes: Ref. 4

1шт.

4

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

5

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 3/4-16 flare x 7/8-14 inch adj O-ring boss, Includes: Ref. 6

1шт.

6

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

7

31-3167

HOSE

- 2590 mm (102 inch) long, prior to P.I.N. JEE0073053

1шт.

7

313817A2

HOSE ASSY.

HOSE - P.I.N. JEE0073053 and after

1шт.

8

222162A2

MOTOR, HYDRAULIC

PUMP - motor

2шт.

9

248788A3

LARGE PLATE

PLATE - pump

2шт.

10

251144A1

TUBE

- axle

2шт.

11

31-2757

HOSE,1.00" ID x 4.00"

; Order S118383X, and Cut to Required Length; See Below 1.00" ID x 4.00"

4шт.

12

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP, HOSE, , Adj. #20, 0.81/1.75 Type F Worm

8шт.

13

247256A1

SCREEN

- suction

2шт.

Ref 13 THIS SCREEN USES O-RING P/N 238-5137

1шт.

14

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adj O-ring boss, Includes: Ref. 15

1шт.

15

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

16

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 45 degree, 3/4-16 inch flare x adj O-ring boss

2шт.

17

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

18

31-3147

HOSE

- 838 mm (33 inch) long

2шт.

19

248454A1

ADAPTER

- straight, 1/2 inch, Includes: Ref. 20

2шт.

20

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

Cl 6, 19.3MM ID x 2.2 Thk

2шт.

21

218-5117

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 7/8-14 flare x 3/4-16 inch adj O-ring boss, Includes: Ref. 22

3шт.

22

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

23

31-3149

HOSE

- 3175 mm (125 inch) long, prior to P.I.N. JEE00730053

1шт.

23

313818A2

HOSE ASSY.

HOSE - P.I.N. JEE0073053 and after

1шт.

24

218-5381

ELBOW,90 Degree, 3/4"-16, 37 Degree x 7/8"-14, 37 Degree Fem Sw

- 90 degree, 3/4-16 flare x 7/8-14 inch swivel, replaces 218-5230 elbow

1шт.

25

218-625

TEE,3/4"-16, 37 Degree x 1/2"-14, NPTF Run

- 3/4-16 flare branch x flare x 1/2 inch PT

1шт.

26

31-3169

HOSE

- 546 mm (21-1/2 inch) long

1шт.

27

248001A1

HOSE

- 2540 mm (100 inch) long, prior to P.I.N. JEE0073053

1шт.

27

313821A1

HOSE ASSY.

HOSE - P.I.N. JEE0073053 and after

1шт.

28

426-552

BOLT,Hex, 5/16" - 18 x 3-1/4", Gr 8

- hex, 5/16 NC x 3-1/4 inch, grade 8

3шт.

29

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

6шт.

30

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

7шт.

31

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 3/4-16 flare x 7/8-14 inch adj O-ring boss, Includes: Ref. 32

1шт.

32

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

33

280401A1

HOSE

- 1854 mm (73 inch) long, flow valve to motor pump

1шт.

34

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss, Incl. Ref 35

1шт.

35

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

36

322261A1

HOSE

- replaces 31-3148 hose

1шт.

37

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree, 7/8-14 flare x 1/2 inch PT

2шт.

39

426-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

- hex, 3/8 NC x 3/4 inch, grade 8

8шт.

31-2755

HOSE,1.00" ID

Bulk 1.00" ID

1шт.

40

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

16шт.

41

425-106

NUT,3/8"-16, Cl 5

8шт.

42

700-102

HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

CONNECTOR, HYD.,, Incl. Ref. 43 13/16"-16 ORFS x M18 x 1.5 ORB

2шт.

43

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

Cl 6, 15.3MM ID x 2.2 Thk

2шт.

44

50-2551T1

CLAMP

- hose, split, includes both halves

2шт.

45

50-2533T1

PLATE

- clamp support

1шт.

46

496-11034

WASHER,11/32" x 11/16" x 1/16", HDN

- flat, 11/32 x 11/16 x 1/16 inch, hardened

2шт.

47

426-548

BOLT,Hex, 5/16" - 18 x 3", Gr 8

- hex, 5/16 NC x 3 inch, grade 8

1шт.

48

218-615

TEE,7/8"-14, 37 Degree x 1/2"-14, NPTF Run

- 7/8-14 flare branch x flare x 1/2 inch PT

1шт.

52

313814A1

BRACKET

- hose

2шт.

53

313815A1

STRAP

PLATE - bracket

1шт.

54

50-2713T1

STUD

- clamp, 5/16 NC x 8-1/2 inch

1шт.

55

425-106

NUT,3/8"-16, Cl 5

7шт.

56

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

P-Type 5/8", Insul, 3/8" Bolt

1шт.

57

515-22254

CLAMP,1", Insul, 5/16" Bolt

P-type 1", Insul, 5/16" Bolt

1шт.

58

426-516

BOLT,Hex, 5/16" - 18 x 1", Gr 8

- hex, 5/16 NC x 1 inch, grade 8

1шт.

59

90-6894T1

SUPPORT

BRACKET - clamp mounting, tube support, not shown

1шт.
