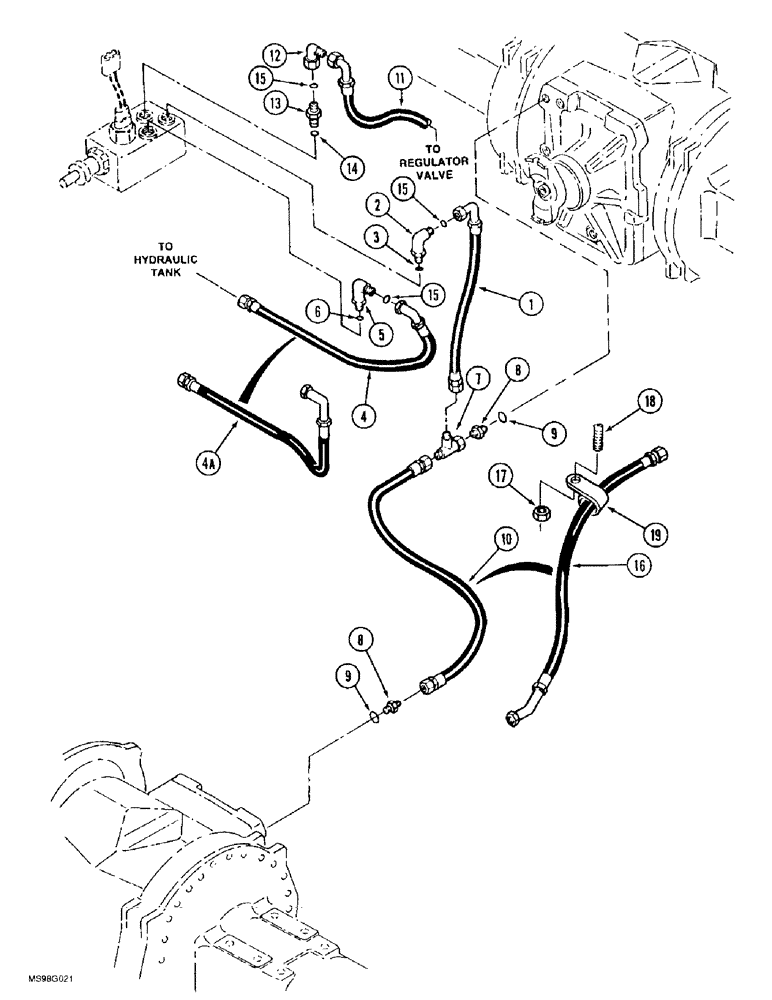

Запчасти Case IH 9370 QUADTRAC (8-098) - AXLE HYDRAULICS, SERVICE BRAKE CIRCUIT (08) - HYDRAULICS

1

257766A1

HOSE

- 1790 mm (70 inch) long, prior to P.I.N. JEE0073053

1шт.

1

313822A1

HOSE ASSY.

HOSE - P.I.N. JEE0073053 and after

1шт.

2

700-343

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x M18 x 1.5 Male ORB

- 90 degree, 1-14 inch face seal x 18-1.5 mm O-ring boss, Includes: Ref. 3

1шт.

3

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

Cl 6, 15.3MM ID x 2.2 Thk

1шт.

4

257767A1

HOSE

- 1885 mm (74 inch) long, brake valve to hydraulic tank, prior to P.I.N. JEE0073053

1шт.

4a

313823A1

HOSE ASSY.

HOSE - brake valve to hydraulic tank, P.I.N. JEE007353 and after

1шт.

5

700-306

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x M22 x 1.5 Male ORB

- 90 degree, 1-14 inch face seal x 22-1.5 mm O-ring boss, Includes: Ref. 6

1шт.

6

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

Cl 6, 19.3MM ID x 2.2 Thk

1шт.

7

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

- 3/4-16 inch flare branch x flare x swivel, replaces 218-5220 tee

1шт.

8

248454A1

ADAPTER

- straight, 1/2 inch, Includes: Ref. 9

2шт.

9

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

Cl 6, 19.3MM ID x 2.2 Thk

3шт.

10

279002A1

HOSE

- 3302 mm (130 inch) long, prior to P.I.N. JEE0073053, front differential to rear differential

1шт.

11

257767A1

HOSE

- 1885 mm (74 inch) long, prior to P.I.N. JEE0073053, brake valve to regulator valve

1шт.

11

313823A1

HOSE ASSY.

HOSE - P.I.N. JEE0073053 and after, brake valve to regulator valve

1шт.

12

201-361

ELBOW,90 Degree Elbow, 1" - 14 Male JIC x 1" - 14 Female JIC

- 90 degree, 1-14 inch face seal x swivel face

1шт.

13

700-115

HYD CONNECTOR,1" - 14 Male ORFS x M18 x 1.5 Male ORB

CONNECTOR, , Incl. Ref. 14 & 15 1"-14 ORFS x M18 x 1.5 ORB

1шт.

14

637-63133

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

Cl 6, 13.3MM ID x 2.2 Thk

1шт.

15

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

3шт.

16

313820A2

HOSE ASSY.

HOSE - P.I.N. JEE0073053 and after

1шт.

17

425-106

NUT,3/8"-16, Cl 5

1шт.

18

50-2713T1

STUD

- clamp, 5/16 NC x 8-1/2 inch, See Figure 8-105 for additional parts, Serial Range: mounting-stud

1шт.

19

515-22254

CLAMP,1", Insul, 5/16" Bolt

P-type 1", Insul, 5/16" Bolt

1шт.
