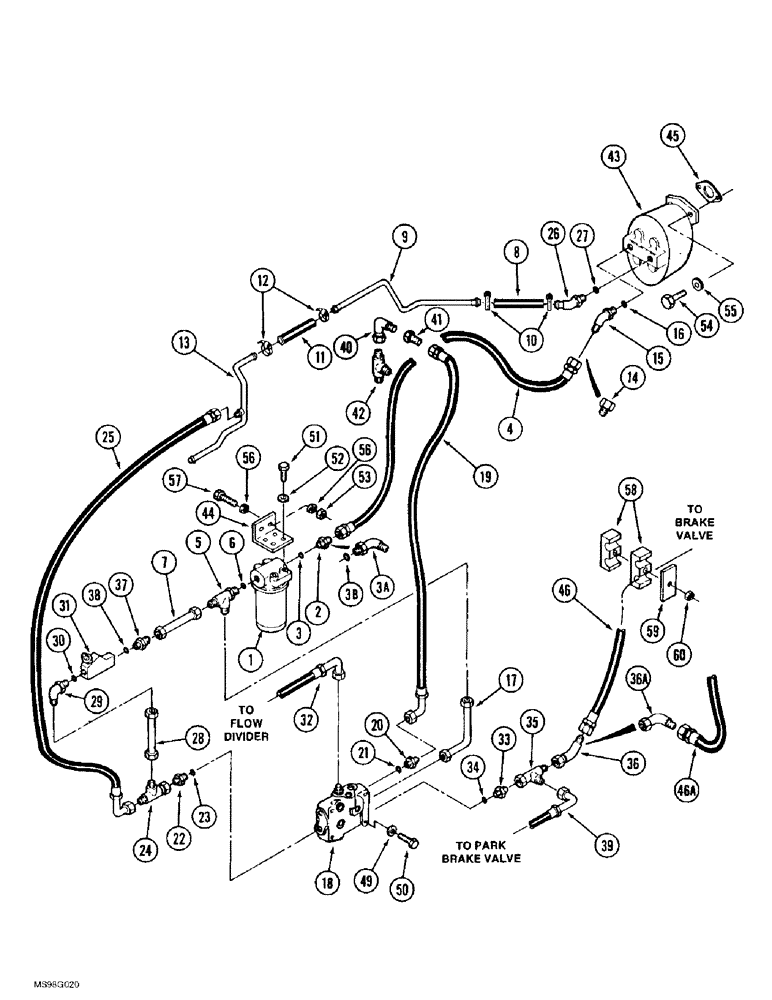

Запчасти Case IH 9370 QUADTRAC (8-094) - AXLE HYDRAULICS, HYDRAULIC PUMP TO REGULATOR VALVE (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
D131293
FILTER
ASSEMBLY - hydraulic oil, parts list page 8-026, replaces 50-3633T91 filter
1шт.
2
218-5069
HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB
Adapter - straight, 1-5/16-12 inch flare x O-ring boss, prior to P.I.N. JEE0073053, Incl. Ref. 3
1шт.
3
237-6020
O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro
20-1, 90 Duro, 1.475" ID x .118" Thk
1шт.
3a
218-5118
ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB
- 90 degree, 1-1/16-12 flare x 1-5/16-12 inch adj O-ring boss, P.I.N. JEE0073053 and after, Includes: Ref. 3B
1шт.
3b
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
8-1, 90 Duro, .644" ID x .087" Thk
1шт.
4
31-3105
HOSE
- 406 mm (16 inch) long, filter to hydraulic pump
1шт.
5
218-5245
TEE,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB
- 1-5/16-12 inch flare branch x flare x adj O-ring boss, Includes: Ref. 6
1шт.
7
247371A1
TUBE,25.4 mm OD, 170 mm Length
- filter to relief valve
1шт.
8
31-2757
HOSE,1.00" ID x 4.00"
; Order S118383X, and Cut to Required Length, prior to P.I.N. JEE0073053; See Below 1.00" ID x 4.00"
5шт.
8
322133A1
HOSE
- cut from 31-2755 bulk hose, P.I.N. JEE0073053 and after, see below
1шт.
9
230128A1
HYD TUBE
TUBE - suction
1шт.
10
214-1420
HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm
CLAMP, HOSE, , Adj. #20, 0.81/1.75 Type F Worm
10шт.
11
1-4571
HOSE
- 114 mm (4-1/2 inch) long, cut from 1-4482 bulk hose, see below
2шт.
12
214-1432
HOSE CLAMP,#32, 1.56" - 2.5", Type F Worm
CLAMP, HOSE, , Adjustable #32, 1.56/2.50 Type F Worm
4шт.
13
247702A1
TUBE,298 mm Length
- suction tank
1шт.
14
218-728
REDUCER,37 Degree, 1 1/16"-12, Fem x 1 5/16"-12 Male
ADAPTER - straight, 1-1/16-12 str thr x 1-5/16-12 inch flare, prior to P.I.N. JEE0073053
1шт.
15
218-5528
ELBOW,45 Degree, 1 1/16"-12 x 7/8"-14, O-Ring
- 45 degree, 1-1/16-12 flare x 7/8-14 inch adj O-ring, Includes: Ref. 16
2шт.
16
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
10-1, 90 Duro, .755" ID x .097" Thk
1шт.
17
247376A1
TUBE,25.4 mm OD, 170, 127 mm Length
- filter to regulator
1шт.
18
245040A2
VALVE
ASSEMBLY - regulator, parts list page 8-106
1шт.
19
31-3159
HOSE
- 1270 mm (50 inch) long
1шт.
20
247417A1
ADAPTER
- straight, Includes: Ref. 21
1шт.
21
637-63133
O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro
Cl 6, 13.3MM ID x 2.2 Thk
1шт.
22
246680A1
ADAPTER
- straight, Includes: Ref. 23
2шт.
23
637-64296
O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro
Cl 6, 29.6MM ID x 2.9 Thk
2шт.
24
218-5223
TEE,37 Degree, 1 5/16"-12 x 1 5/16"-12, Fem Sw Run
- 1-5/16-12 inch flare branch x flare x swivel
1шт.
25
31-3155
HOSE
- 1003 mm (39-1/2 inch) long
1шт.
31-2755
HOSE,1.00" ID
Bulk 1.00" ID
1шт.
26
217-316
FITTING,45 Degree Elbow, 1" Hose Barb x 1-5/16" - 12 Male ORB
ELBOW - 45 degree, 1 stem end x 1-5/16-12 inch adj O-ring boss, Includes: Ref. 27
1шт.
28
247374A1
TUBE,25.4 mm OD, 105 mm Length
- relief valve to regulator
1шт.
29
218-5164
ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 7/8" - 14 Male ORB
- 90 degree, 1-5/16-12 flare x 7/8-14 inch adj O-ring boss, Includes: Ref. 30
1шт.
30
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
10-1, 90 Duro, .755" ID x .097" Thk
1шт.
31
246481A1
VALVE
- relief
1шт.
32
31-3169
HOSE
- 546 mm (21-1/2 inch) long
1шт.
33
246681A1
ADAPTER
- straight, Includes: Ref. 34
1шт.
34
637-63153
O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro
Cl 6, 15.3MM ID x 2.2 Thk
1шт.
35
218-5220
TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run
- swivel, 7/8-14 inch flare branch x flare x swivel
1шт.
36
218-5174
ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Female JIC
- 45 degree, 7/8-14 inch flare x swivel, prior to P.I.N. JEE0073053
1шт.
36a
218-5232
ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw
P.I.N. JEE0073053 and after 90º, 7/8"-14, 37º x 7/8"-14, 37º Fem Sw
1шт.
37
218-5046
HYD CONNECTOR,1-5/16" - 12 Male JIC x 7/8" - 14 Male ORB
ADAPTER - straight, 1-5/16-12 flare x 7/8-14 inch O-ring boss, Includes: Ref. 38
1шт.
38
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
10-1, 90 Duro, .755" ID x .097" Thk
1шт.
39
31-3199
HOSE
- 431 mm (17 inch) long, replaces 31-3157 hose
1шт.
40
218-5230
ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw
- 90 degree, 3/4-16 inch flare x swivel, Replaces 218-5381 elbow
1шт.
41
218-786
REDUCER,37 Degree, 3/4"-16, Fem x 9/16"-18 Male
ADAPTER - reducing, 3/4-16 female str thread x 9/16-18 inch flare
1шт.
42
218-625
TEE,3/4"-16, 37 Degree x 1/2"-14, NPTF Run
- 3/4-16 flare branch x flare x 1/2 inch PT
1шт.
43
279783A1
PUMP
ASSEMBLY - hydraulic, axle, parts list Figure 8-114
1шт.
44
230357A1
SUPPORT
BRACKET - filter
1шт.
45
228916A1
GASKET
-, Serial Range: pump,-engine
1шт.
46
257767A1
HOSE
- 1885 mm (74 inch) long, prior to P.I.N. JEE0073053
2шт.
46a
313823A1
HOSE ASSY.
HOSE - P.I.N. JEE0073053 and after
2шт.
49
495-11034
WASHER,5/16", SAE
5/16" SAE (flat, 11/32 x 11/16 x 1/16")
3шт.
50
426-548
BOLT,Hex, 5/16" - 18 x 3", Gr 8
- hex, 5/16 NC x 3 inch, grade 8
3шт.
51
426-612
BOLT,Hex, 3/8" - 16 x 3/4", Gr 8
- hex, 3/8 NC x 3/4 inch, grade 8
2шт.
52
496-21041
WASHER,13/32" x 13/16" x .089", HDN
- flat, 13/32 x 13/16 x 3/32", hardened
2шт.
53
425-106
NUT,3/8"-16, Cl 5
2шт.
54
461-33824
HEX SOC SCREW,3/8" - 16 x 1-1/2"
BOLT - hex socket, 3/8 NC x 1-1/2 inch
2шт.
55
495-11041
WASHER,0.406" ID x 0.812" OD x 0.065" W
(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE
2шт.
56
496-21041
WASHER,13/32" x 13/16" x .089", HDN
- flat, 13/32 x 13/16 x 3/32", hardened
4шт.
57
426-612
BOLT,Hex, 3/8" - 16 x 3/4", Gr 8
- hex, 3/8 NC x 3/4 inch, grade 8
2шт.
58
50-2534T1
CLAMP
- split, one-half
2шт.
59
50-2533T1
PLATE
- clamp support
1шт.
60
425-105
NUT,5/16"-18, G5
- hex, 5/16 inch NC
1шт.
Выбрано товаров: 65
