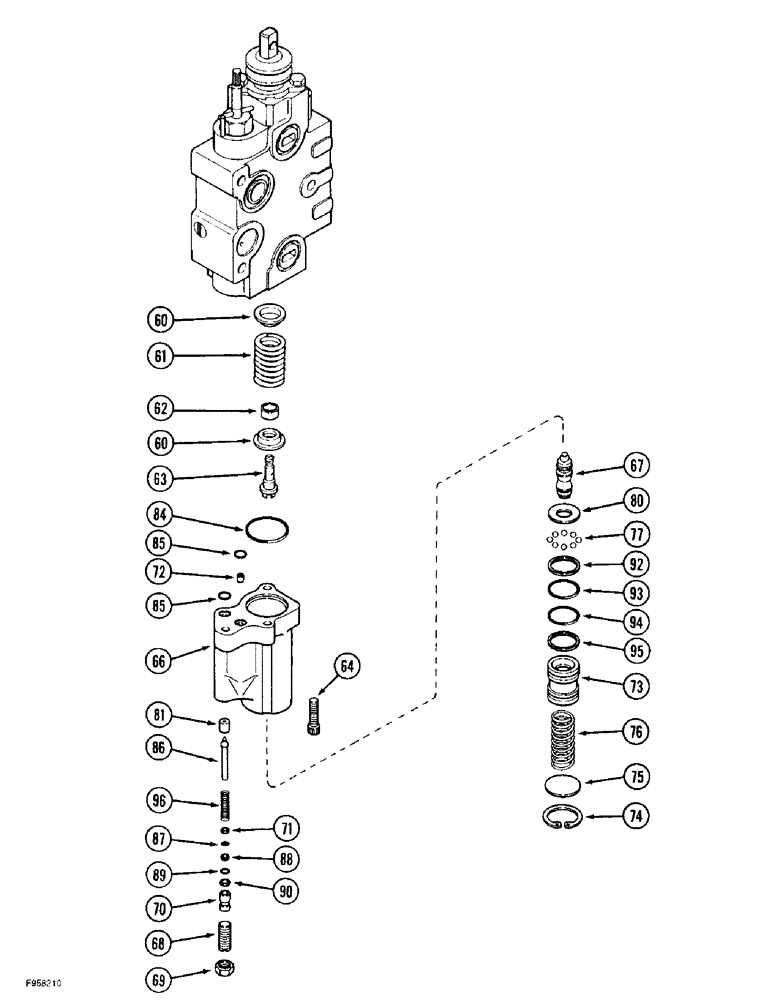

Запчасти Case IH 9370 QUADTRAC (8-070) - LOAD CHECK REMOTE VALVE ASSEMBLY, IF EQUIPPED (CONTD) (08) - HYDRAULICS

NSS

NOT SOLD SEPARAT

VALVE ASSEMBLY - remote control, Includes: Ref. 60 - 96, 1 - 20 on Figure 8-066 and 21 - 57 on Figure 8-068

1шт.

A48945

HOUSING

BODY ASSEMBLY - valve, Includes: Ref. 60 - 96

1шт.

60

A47197

RETAINER

- spring

2шт.

61

A47177

SPRING

- centering

1шт.

62

A48930

SPACER

- detent

1шт.

63

A46923

COUPLING, BREAK AWAY

COUPLER - detent

1шт.

64

61-32516

HEX SOC SCREW,1/4"-20 x 1"

BOLT - hex socket, 1/4 NC x 1 inch

3шт.

A48940

KIT

- housing, detent, Includes: Ref. 66 - 96

1шт.

66

NSS

NOT SOLD SEPARAT

HOUSING ASSEMBLY - detent, Includes: Ref. 67 - 96

1шт.

67

A52409

SHAFT

- detent

1шт.

68

A47173

SCREW,3/8" - 24 x 0.96"

- adjusting

1шт.

69

425-156

JAM NUT,Jam, 3/8"-24, G5

- hex, jam, 3/8 inch NF

1шт.

70

A48936

GOVERNOR

PISTON - regulator

1шт.

71

A48935

WASHER

- poppet valve

1шт.

72

A47658

PLUG

- orifice

1шт.

73

A48932

PISTON

- kickout

1шт.

74

100-21118

SNAP RING,1.188", Int, #118

Ring, Snap, 1.188", Int, #118

1шт.

75

A48933

RING

RETAINER - piston

1шт.

76

A48934

SPRING

- detent

1шт.

77

211-1007

BALL,7/32" Dia

Gr 24, Chrome alloy steel 7/32" Dia

8шт.

80

A48931

WASHER

- guide

1шт.

81

A47201

SEAT

- pilot float

1шт.

A48942

KIT

- seal, detent, Includes: Ref. 84 - 96

1шт.

84

238-5026

O-RING,0.07" Thk x 1.239" ID, -26, Cl 5, 75 Duro

-026, 70 Duro, 1.239" ID x .070" Thk

1шт.

85

238-6010

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

2шт.

86

NSS

NOT SOLD SEPARAT

POPPET - detent

1шт.

87

238-5006

O-RING,0.07" Thk x 0.114" ID, -6, Cl 5, 75 Duro

-006, 70 Duro, .114" ID x .070" Thk

1шт.

88

A52378

RING,Split, 3.56mm ID x 6.3mm OD x 1.32mm Thk

- backup

1шт.

89

238-5008

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

-008, 70 Duro, .176" ID x .070" Thk

1шт.

90

D71056

RING,Split, 4.47mm ID x 7.21mm OD x 1.32mm Thk

- backup

1шт.

92

L35295

SEALING RING,Split, 24.38mm ID x 27.13mm OD x 1.32mm Thk

RING - backup

1шт.

93

238-5021

O-RING,0.07" Thk x 0.926" ID, -21, Cl 5, 75 Duro

-021, 70 Duro, .926" ID x .070" Thk

1шт.

94

238-5022

O-RING,0.07" Thk x 0.99" ID, -22, Cl 5, 75 Duro

-022, 70 Duro, .989" ID x .070" Thk

1шт.

95

A52208

SEAL,25.98mm ID x 28.73mm OD x 1.32mm Thk

RING - backup

1шт.

96

NSS

NOT SOLD SEPARAT

SPRING - relief

1шт.
