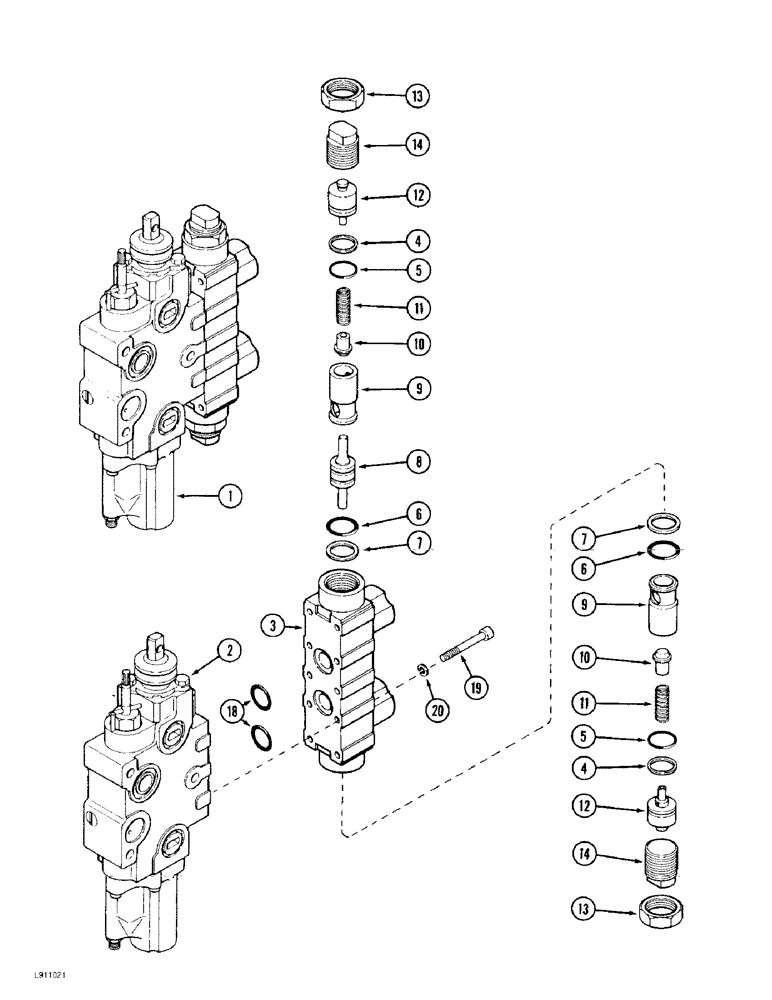

Запчасти Case IH 9370 QUADTRAC (8-066) - LOAD CHECK REMOTE CONTROL VALVE ASSEMBLY, IF EQUIPPED (08) - HYDRAULICS

1

NSS

NOT SOLD SEPARAT

VALVE ASSEMBLY - remote control, Includes: Ref. 2 - 20, 21 - 57 on Figure 8-068 and 60 - 96 on Figure 8-070

1шт.

2

A48945

HOUSING

BODY ASSEMBLY - valve, parts list Figure 8-068

1шт.

A48946

VALVE

CHECK ASSEMBLY - load, valve, Includes: Ref. 3 - 14

1шт.

3

NSS

NOT SOLD SEPARAT

BODY - load check

1шт.

4

N7509

RING

- backup

2шт.

5

238-5019

O-RING,0.07" Thk x 0.801" ID, -19, Cl 5, 75 Duro

-019, 70 Duro, .801" ID x .070" Thk

2шт.

7

R31052

O-RING,15/16" ID x 1-1/16" OD x 3/64"

RING - backup

2шт.

8

A46915

SPOOL

- load check

1шт.

9

A46916

SEAT

- load check

2шт.

10

A46917

SPOOL

POPPET - load check

2шт.

11

A46918

SPRING

- poppet

2шт.

12

A46919

RETAINER

- spring

2шт.

13

A46920

NUT

- hex, self-locking, 1-1/16 inch

2шт.

14

A46921

PLUG

- setting, load check

2шт.

18

238-6117

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

2шт.

19

61-32532

HEX SOC SCREW,1/4"-20 x 2"

BOLT - hex socket, 1/4 NC x 2 inch

6шт.

20

92-61025

LOCK WASHER,1/4"

WASHER - Hi-Collar lock, 1/4 inch

6шт.

6

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

2шт.
