Запчасти Case IH 9370 QUADTRAC (8-026) - AXLE HYDRAULICS OIL FILTER, HIGH OUTPUT HYDRAULICS OIL FILTER (08) - HYDRAULICS

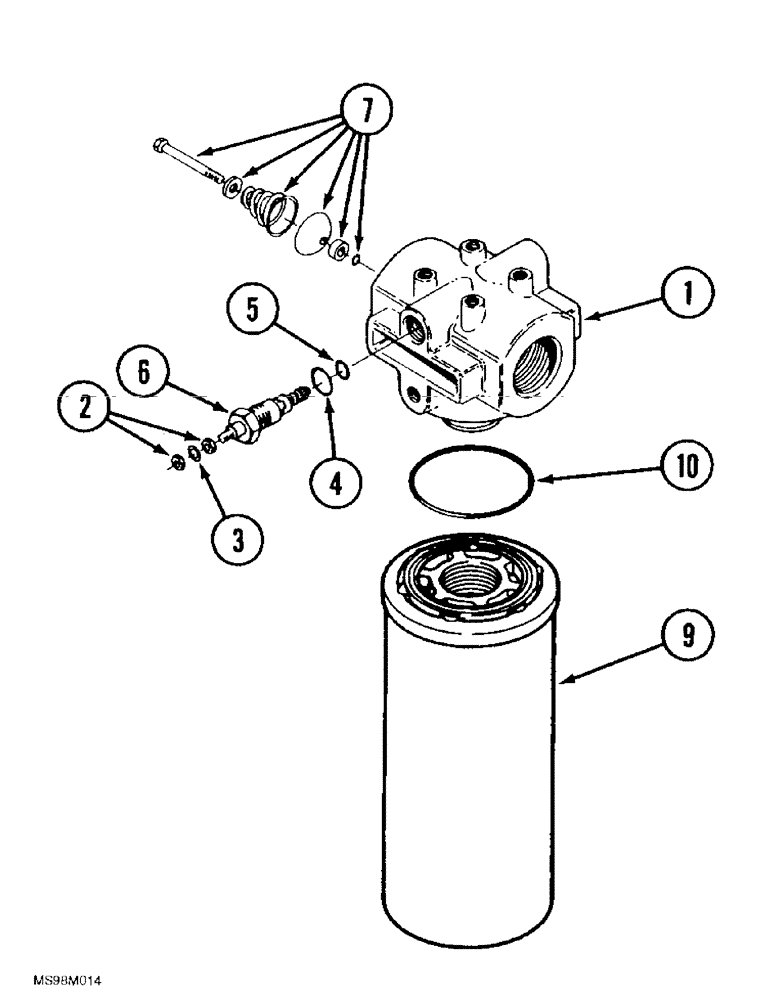

Схема запчастей Case IH 9370 QUADTRAC - (8-026) - AXLE HYDRAULICS OIL FILTER, HIGH OUTPUT HYDRAULICS OIL FILTER (08) - HYDRAULICS
4
9
3
5
2
6
1
10
7

Артикул

Название

Примечание

Количество

D131293

FILTER

ASSEMBLY - hydraulic oil, replaces 50-3633T91 filter, Includes: Ref. 1 - 10

1шт.

Filter 50-3633T91 and element 254353A1 are no longer used for the axle hydraulics. Order D131293 filter and N9025 element.

1шт.

1

NSS

NOT SOLD SEPARAT

HEAD ASSEMBLY - filter, Includes: Ref. 2 - 7

1шт.

N6755

PRESSURE SWITCH

ASSEMBLY - restriction, electric, Includes: Ref. 2 - 6

1шт.

2

129-667

NUT,#10-32, LH

2шт.

3

493-21020

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, (3/16") Int Tooth, #10

1шт.

5

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

-011, 70 Duro, .301" ID x .070" Thk

1шт.

6

NSS

NOT SOLD SEPARAT

INDICATOR - restriction

1шт.

7

NSS

NOT SOLD SEPARAT

VALVE - bypass

1шт.

N9025

HYDRAULIC OIL FILTER

ELEMENT ASSEMBLY - filter, replaces 254353A1 element, Includes: Ref. 9 & 10

1шт.

Filter 50-3633T91 and element 254353A1 are no longer used for the axle hydraulics. Order D131293 filter and N9025 element.

1шт.

9

NSS

NOT SOLD SEPARAT

ELEMENT - filter

1шт.

10

238-5230

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

1шт.

D131293

FILTER

ASSEMBLY - hydraulic oil, high output, Includes: Ref. 1 - 10

1шт.

1

NSS

NOT SOLD SEPARAT

HEAD ASSEMBLY - filter, high output hydraulics oil, Includes: Ref. 2 - 7

1шт.

N6755

PRESSURE SWITCH

ASSEMBLY - restriction, electric, high output hydraulics oil filter, Includes: Ref. 2 - 6

1шт.

2

129-667

NUT,#10-32, LH

High output hydraulics oil filter #10-32, LH

2шт.

3

493-21020

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, (3/16"), High output hydraulics oil filter Int Tooth, #10

1шт.

5

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

-011, 70 Duro, .301" ID x .070" Thk

1шт.

6

NSS

NOT SOLD SEPARAT

INDICATOR - restriction, high output hydraulics oil filter

1шт.

7

NSS

NOT SOLD SEPARAT

VALVE - bypass, high output hydraulics oil filter

1шт.

N9025

HYDRAULIC OIL FILTER

ELEMENT ASSEMBLY - filter, high output hydraulics oil, Includes: Ref. 9 & 10

1шт.

9

NSS

NOT SOLD SEPARAT

ELEMENT - bypass, high output hydraulics oil filter

1шт.

See NTR SB 019 98 for corrct filter.

1шт.

10

238-5230

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

High output hydraulics oil filter -230, 70 Duro, 2.484" ID x .139" Thk

1шт.

4

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

4

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, High output hydraulics oil filter

1шт.

Выбрано товаров: 27
